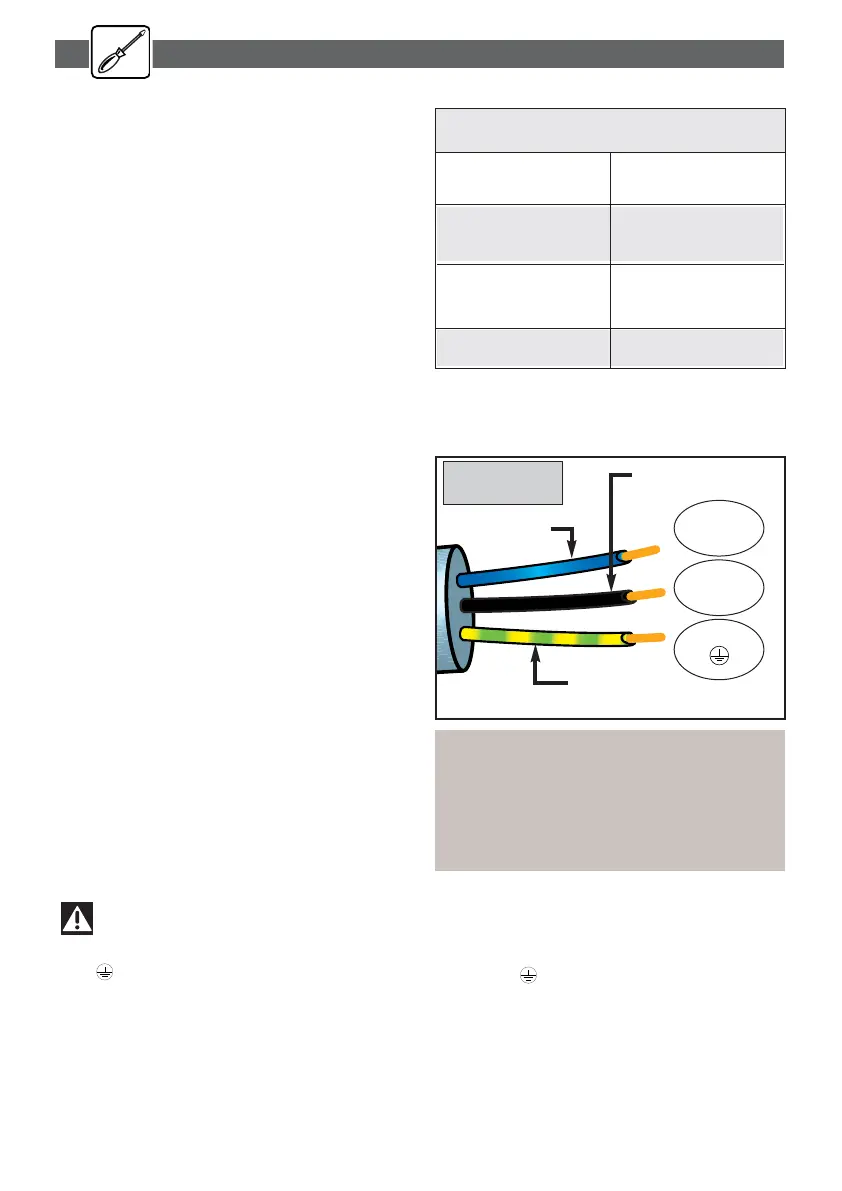

ELECTRICAL CONNECTION
The oven must be plugged in
using a standardized power
cable with 3 conductors each
1,5 mm² ( 1 ph + 1 N +
ground) which must be
connected to the 220~240
Volt network by means of a
standardized IEC 60083
power socket or a single-pole
cut-off device in compliance
with installation regulations.
The safety wire (green-yel-
low) is connected to the
appliance's ground terminal
and must be connected to the
installation's ground lead.
— The plug of the electrical
outlet must be accessible after
installation.
CROSS-SECTION OF CABLE TO BE USED
H05V2V2F - T90
cable
Cross-section of the
conductors in mm
²
Fuse
220-240 V
~
50 Hz
Gas and dual
3 conductors
including 1 ground
1
10 A
•
Neutral
(N)
Live
(L)
Blue wire
Black, brown, or
red wire
Green and
yellow wire
Earth
Cable type
H05V2V2F
Attention
— The safety wire (green/yellow) is connected to the appliance’s ground termi-
nal and must be connected to the ground lead of the electrical set-up.
— If a cooking hob is used that is not connected to the ground or has a faulty ground
electrode, the manufacturer’s liability shall under nos circumstances be incurred in
the event of an incident or for anay of its consequences.
Connect the wires to the
electricity supply making
sure that the different-
coloured wires are in the
right order.
