11

2*ST4mm*30mm

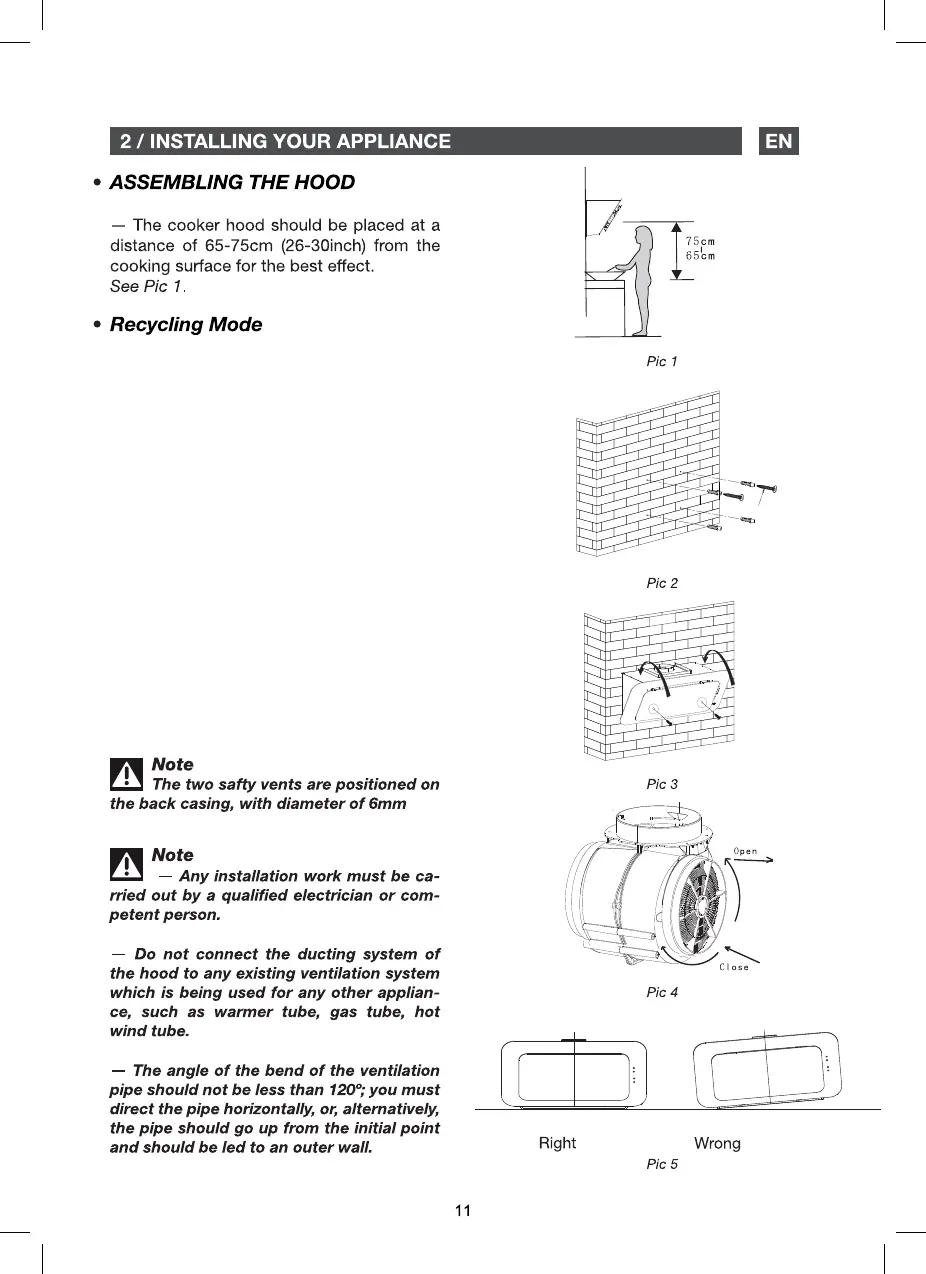

1. Drill four 8mm diameter holes in the

appropriate horizontal position on the solid

part of the wall according to the center

distance of the hanging hole on the back of

the hood. See pic 2.

2. Insert wall plugs into the holes that you

have drilled for the cooker hood body, fasten

2 pcs support screw ST4*30 mm halfway in,

leaving them 2 mm out of the wall. See pic

2.

3. Hang the cooker hood onto the support

screws. Insert ST4*30 mm screws into the

safety holes and fully fasten it to ensure the

cooker hood is well fixed. Note: The two

safety vents are positioned on the back

housing, with diameter of 6mm. See pic 3.

4. Install the carbon filter on the both sides

of the motor
