S19224 Installation
1/25/2024 Bradley • 215-1686 Rev. S: ECO 23-05-001A

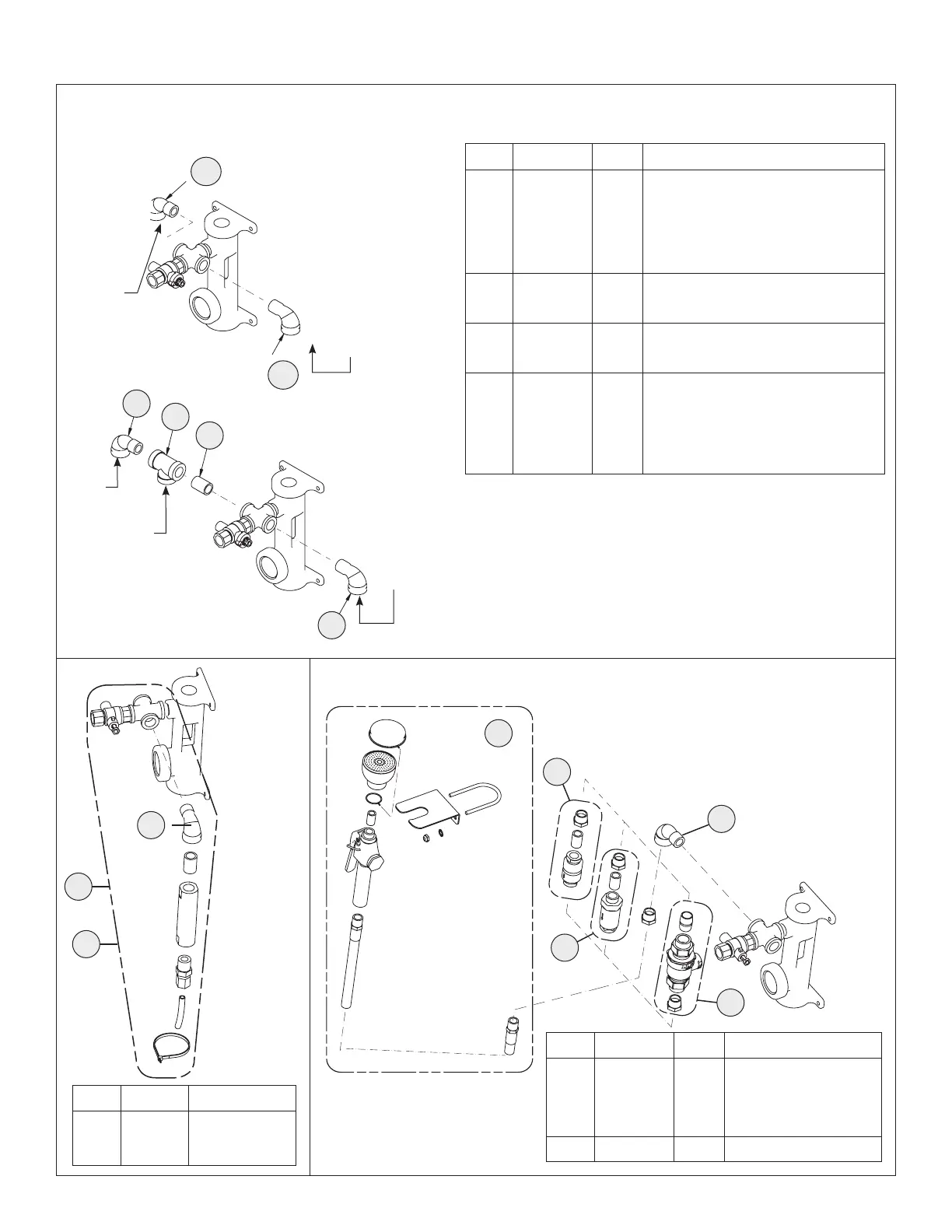

Service Parts and Parts List — Optional Accessories
Item Part No. Description
376 S45-1986 Freeze Valve kit
377 S45-1989 Scald Valve kit
387a
387b
387c
Drench Hose
Backflow
Preventers for
Drench Hose
Item Part No. Qty. Description
370 169-025 as req’d. Elbow ½"
370 269-241 as req’d. Elbow ½" stainless steel
370 269-1396 as req’d. Elbow ½" stainless steel 316
370 169-862 as req’d. Elbow ½" chrome
371 113-006LG 1 Pipe ½" x close
371 113-867 1 Pipe ½" x close stainless steel
371 113-1210 1 Pipe ½" x close stainless steel 316
371 113-006AW 1 Pipe ½" x close chrome
372 169-838 1 Tee ½"
372 169-1100 1 Tee ½" stainless steel
372 269-280 1 Tee ½" chrome
372 169-1099 1 Tee ½" stainless steel 316
376
377
Freeze/Scald
Valves
Item Part No. Qty. Description
387a S27-303 1 Vacuum breaker in-line
3
⁄8"
387b S45-2309 1 Backflow preventer N9
387c S45-2310 1 Backflow preventer 9D
390 S19-430EH 1 Spray Kit
390
370
370
370
370
371
372
Accessory
Mounting (for
units with three
accessories)
to
freeze
valve
to
drench
hose
to
scald
valve
370
370
Accessory Mounting
(for units with two
accessories)
to
accessory
to
accessory
