Installation S19-500 Series & S19-505 Series
Bradley • 215-1910 Rev. D: ECO 21-05-013 7/6/2021

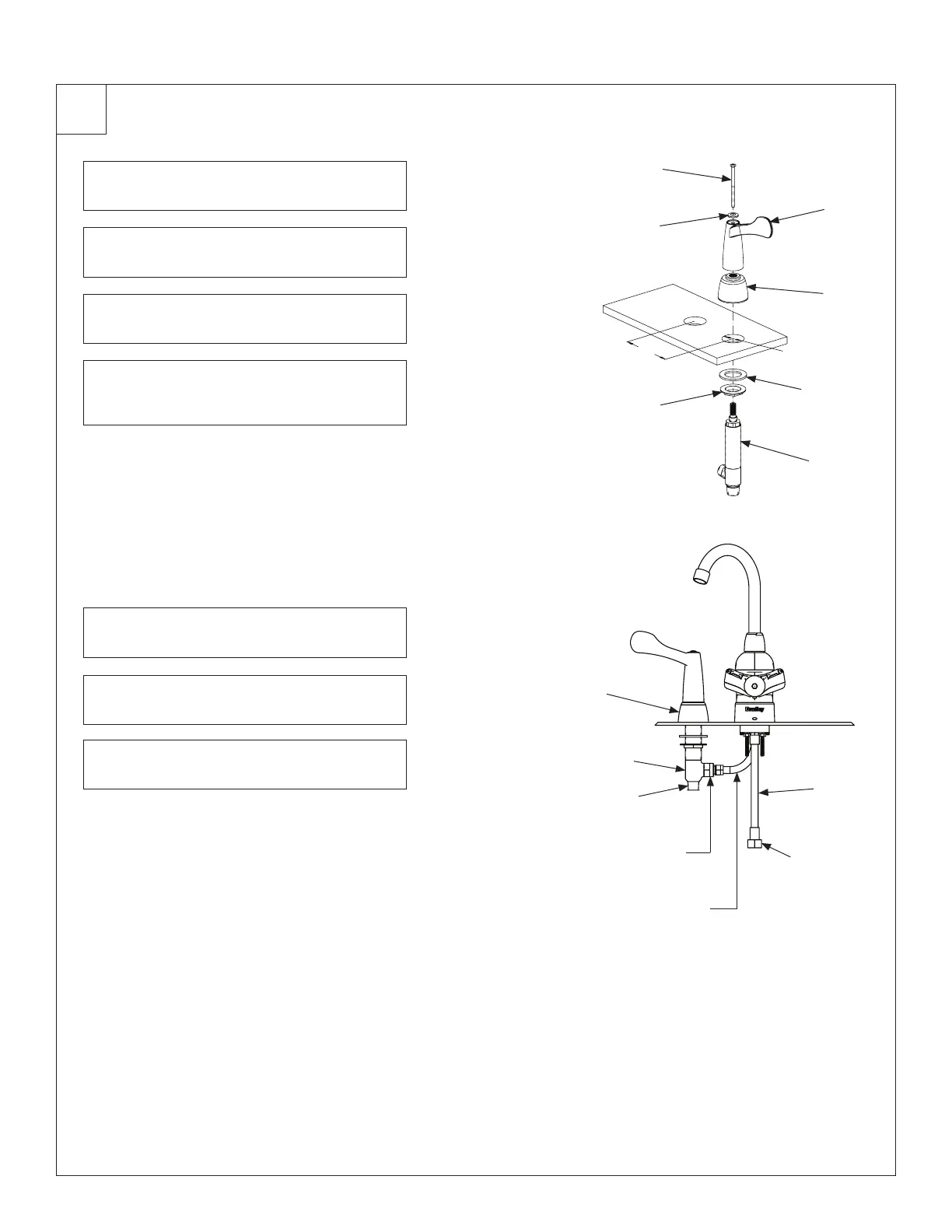

Install Faucet Hoses (S19-500T & S19-505T)
2a
Thread the nut and washer onto the valve.
Insert the valve into the sink deck from the
bottom.
Thread the bonnet onto the valve assembly from
the top, and tighten the nut from the bottom.
Slide the handle onto the valve assembly. Place
the washer onto the handle and install the handle
screw.
Plumb the faucet hose to the side port on the
valve using the provided fitting.
Plumb the eyewash hose to the eyewash supply.
Plumb the faucet supply to the bottom of the valve
assembly (hose supplied by installer).
A
B
C
D
E
F
G
Valve (Tempered)
½" NPSM
Faucet Inlet
Faucet Hose
Eyewash
Hose
½" NPSM
Eyewash Inlet
Valve
Nut
4"
(102)
Washer
1½" Dia.
Washer
Bonnet
Bonnet
Handle
Handle
Screw
³⁄₈" Compression Adapter
(discard ferrule and nut)
