Panel descriptions
* To prevent malfunction and equipment failure, always turn down the volume, and turn o all the units before making any connections.
Computer
15
CTL 3, 4/EXP 1 jacks, CTL 5, 6/EXP 2 jacks
When used as the EXP
1/EXP 2 jacks
Connect an expression
pedal here.
FS-5U x 1 FS-5U x 2 FS-7FS-6
CTL 3
CTL 5
CTL 4
CTL 6
CTL 3
CTL 5
CTL 4
CTL 4
CTL 6
CTL 6
CTL 3
CTL 3
CTL 5
CTL 5
Stereo 1/4” phone type
Ñ
Ò
1/4” phone type × 2
Stereo 1/4” phone type
Ñ
Ò
Stereo 1/4” phone type
1/4” phone type
Ñ
Ò
1/4” phone type
* Use only the specied
expression pedal (EV-
30, FV-500L, FV-500H,
and Roland EV-5; sold
separately). Connecting
expression pedals
made by third-party
manufacturers may
cause this unit to
malfunction.
Stereo 1/4” phone type
Ñ
Ò
Stereo 1/4” phone type
When used as the CTL 3, 4 and CTL 5, 6 jacks
Connect a footswitch here.
Mode/Polarity switch
FS-5U FS-6 FS-7
11
GK IN jack
12
GK OUT jack
13
OUTPUT jacks
14
MIDI (OUT/IN) jacks
16
USB (COMPUTER) port
17
USB (MEMORY) port
USB ash drive
18
19
MixerHeadphones
Guitar amplier
MIDI keyboard controller
Devices compatible with
serial GK
GK-5/GK-5B

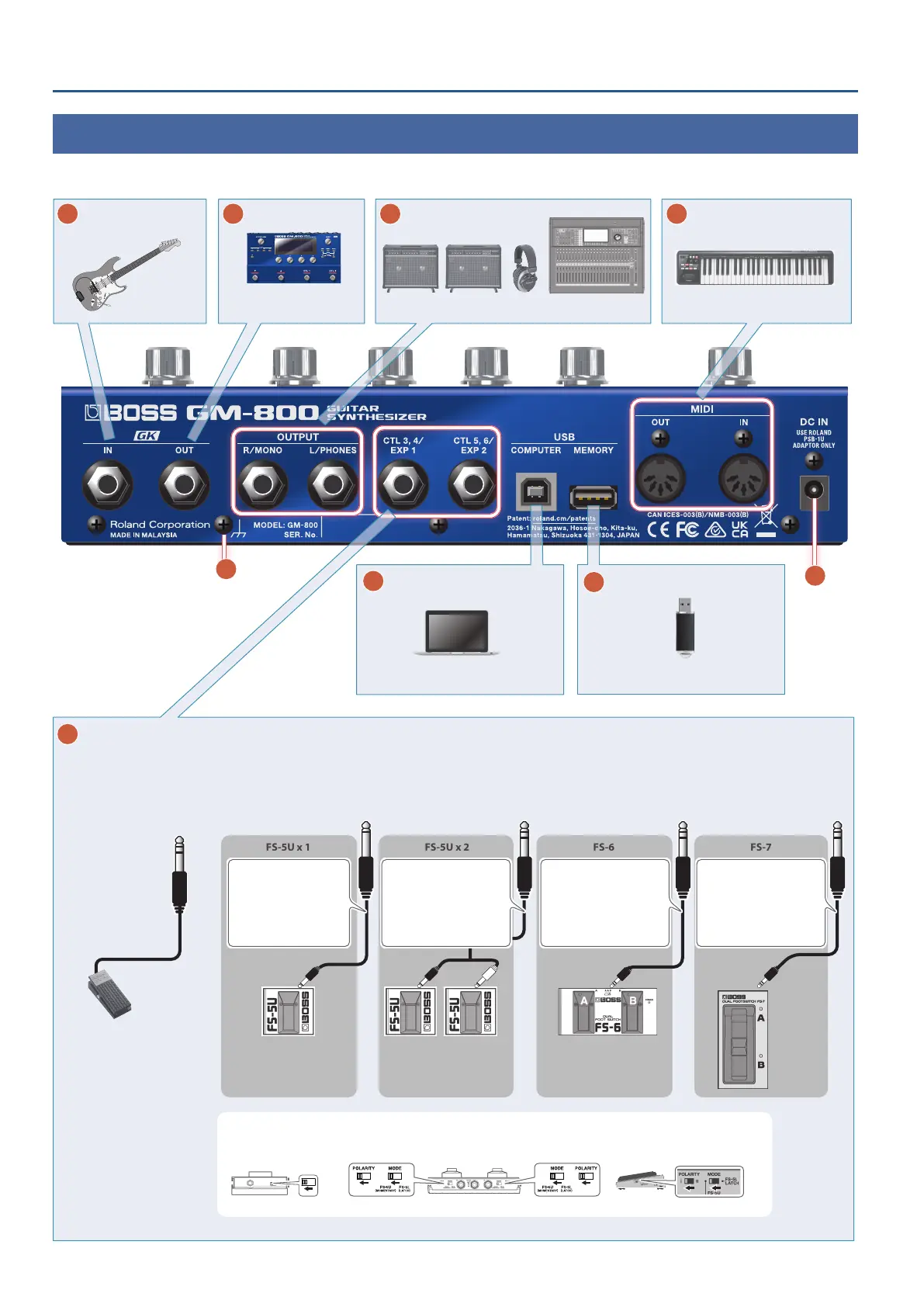

Rear panel (connecting your equipment)
