en Installation instructions
tion. Ensure the side and top clearances are not ob-
structed.

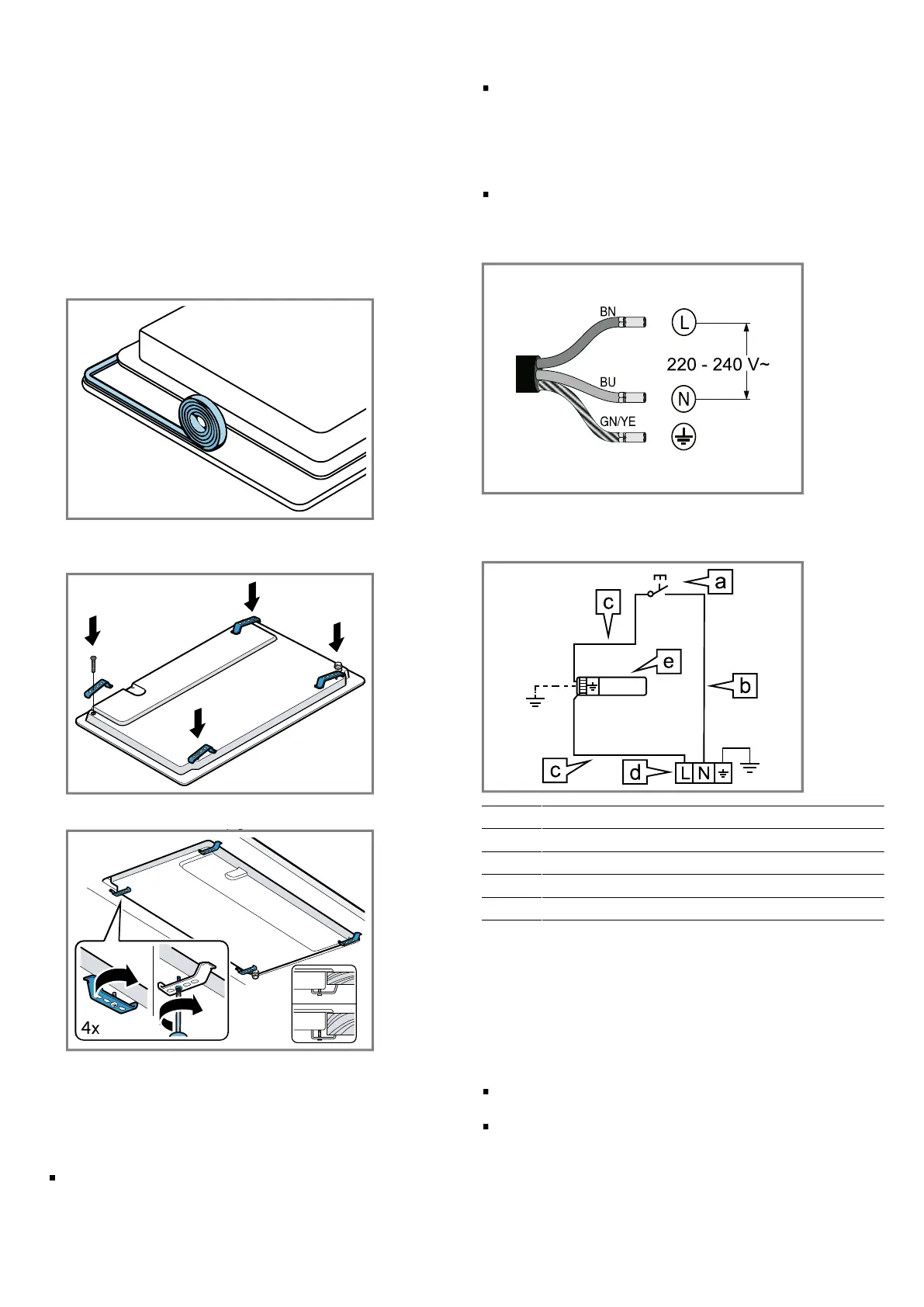

2.5 Positioning the appliance
Note: Do not use silicone to bond the appliance to the
worktop.
1.
Position the cooktop with the upper side facing down
on a flat, stable surface.
2.
Apply the adhesive seal supplied to the lower edge of
the cooktop. The adhesive seal prevents the penetra-
tion of liquids.
3.
Screw the brackets supplied into the specified posi-
tion so that they can turn freely.
4.
Turn the brackets and tighten them fully.
The position of the brackets depends on the worktop
thickness.
2.6 Electrical connection
Follow the instructions for electrical connection.
An electrical 10amp socket needs to be within 1m
of the hotplate to allow electrical connection. The
socket must remain accessible after installation of the
appliance.
This appliance is connected to the mains (240VAC)
by means of the connecting lead. The connecting
lead must be fixed to the kitchen unit to prevent it
from coming into contact with hot parts of the cook-
top or an oven installed underneath and remain ac-
cessible after installation of the cooktop.
This appliance must be earthed. When connecting the
cooktop ensure that the earth wire is connected first
and that all wires are connected to the correct termin-
als.
Wiring diagram
Observe the wiring diagram.
a Switch
b Blue wire
c Brown wire
d Terminal
e Ignition module
2.7 Gas connection
Only an officially authorised technician should connect
the appliance.
Before connecting the gas
Observe any special conditions imposed by local suppli-
ers (utilities).
During the planning stage, consider the position of
supply connections.
The cooktop must be connected to the gas supply
with upstream connection of an isolation valve in ac-
cordance with the respectively valid regulations. We
recommend that the isolation valve be fitted prior to
the cooktop to enable isolation of cooktop from gas
8
