8. Install five stand-off screws (included in the Island Trim
kit) in the back of the range, in the same locations as
the original 5 rear trim screws. See .Figure 3: Trim
screw locations (louver cover removed)
Figure 4: Stand-off Screws
9. Place the rear louver cover into its slots and secure
with the four original screws.

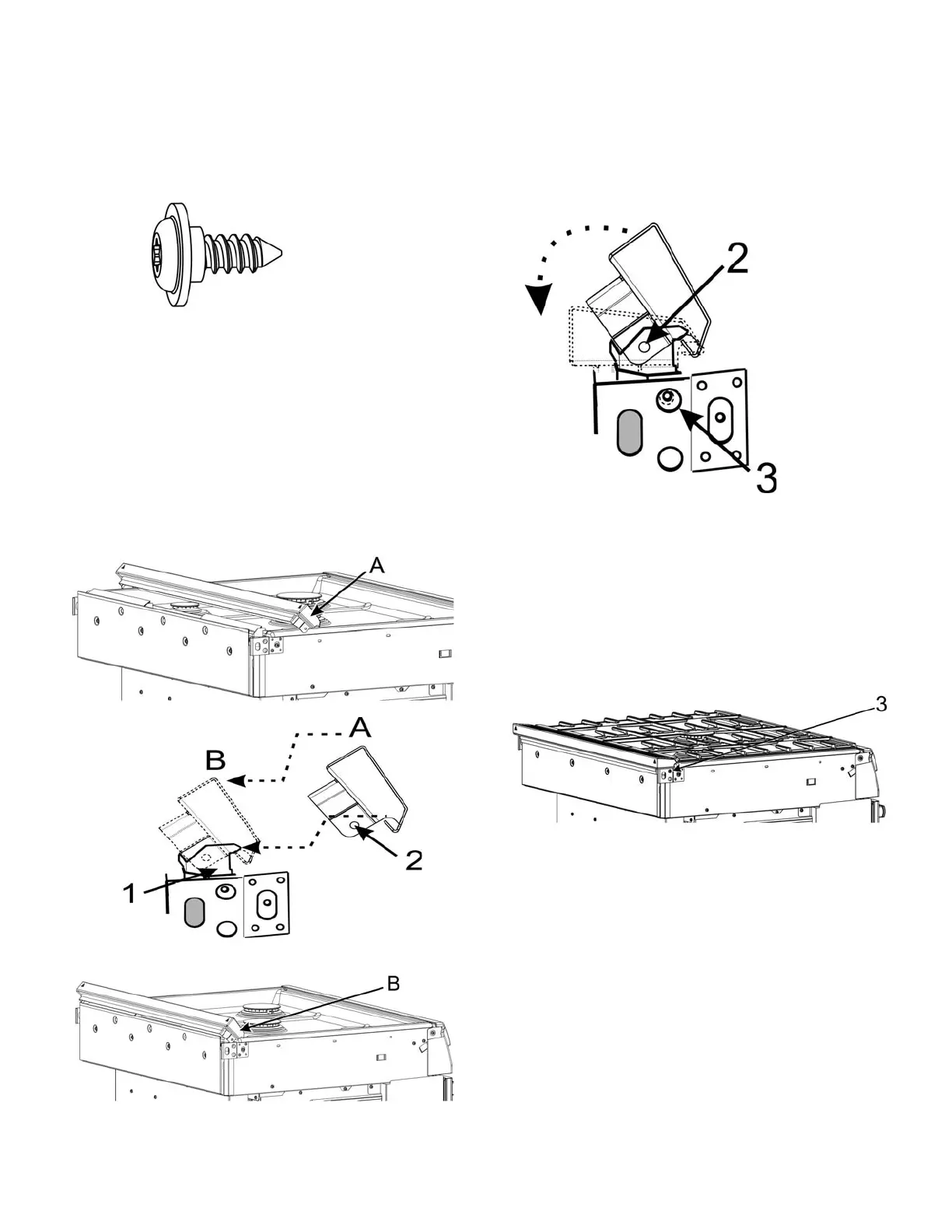

10. Place the Island Trim in position A (Figure 5: Island
Trim placement 1) and move it to position B (towards
the rear of the range) as shown to engage the
alignment device 1 (the appearance of the device may
not be exactly as shown).
Figure 5: Island Trim placement 1
11. Rotate the Island Trim into position where the Island
Trim side mounting hole 2 is visible through hole 3 on
both sides of the range(see Figure 6: Island Trim
placement 2.
Figure 6: Island Trim placement 2
12. Secure the Island Trim with one screw through hole 3
at each end (see “Island Trim placement 2” on page 4
and “Island Trim Installed” on page 4).
13. Replace the cooktop grates back into their normal
positions.
Figure 7: Island Trim Installed
14. If necessary, have a qualified service person reattach
electrical or gas connections.
15. Slide the range back into position, being sure to
engage the anti-tip bracket. See the Tip Over Hazard
Warning earlier in this instruction and also in the Slide-
In Range Installation Manual.
