Appliance door en
13
3.

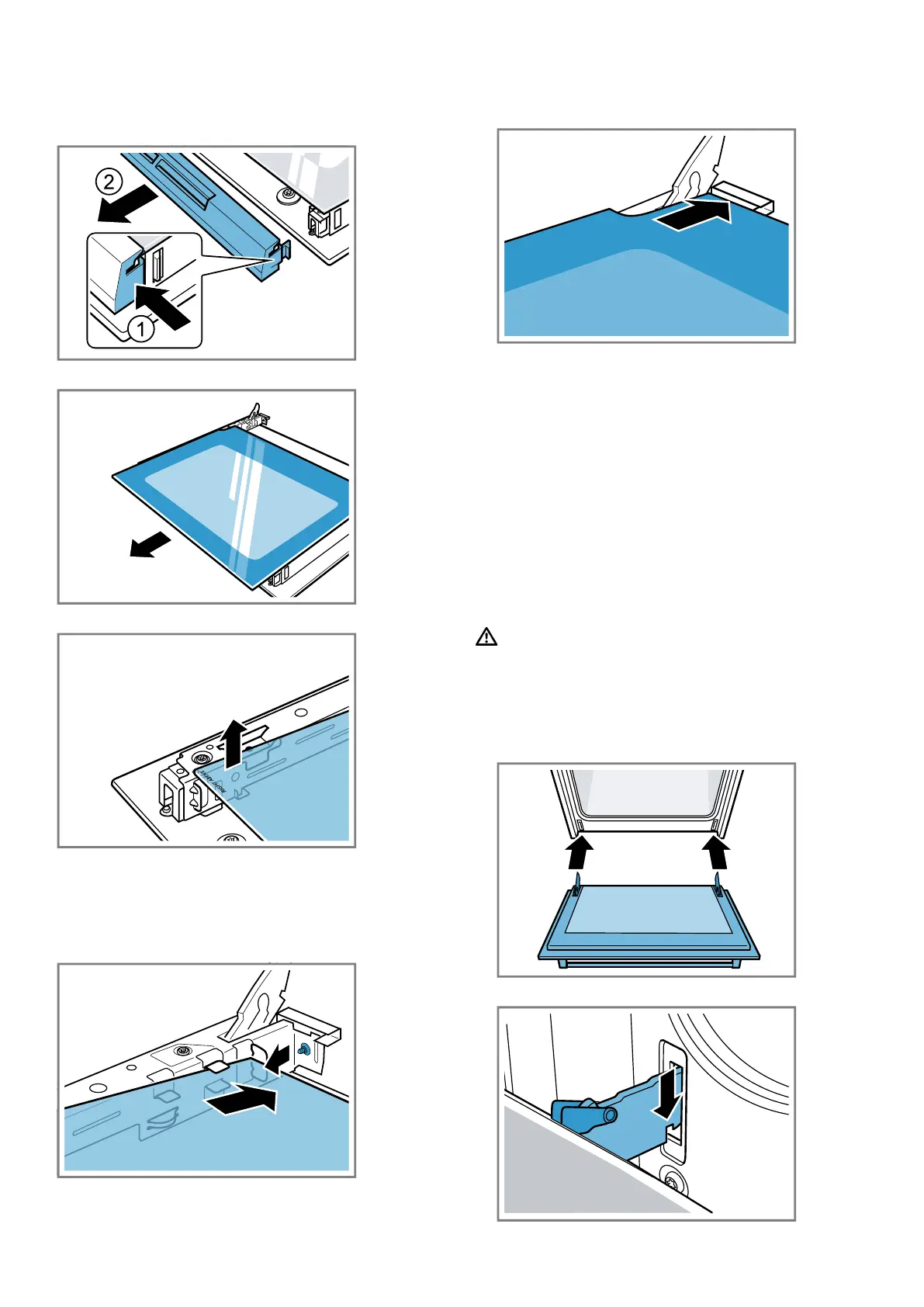

To remove the upper cover of the oven door, press
in the tabs on the left and right using your fingers.
Pull out and remove the cover.
4.
Lift the top pane up and out.
5.
Lift the panel up and out.
10.4 Fitting the door panes
When fitting the panes, ensure that the lettering "top
right" is not upside down at the bottom left.
1.
Insert the pane diagonally towards the back.
2.
Hold the top pane in both brackets and insert it at
an angle towards the back.
Push the pane into both openings on the underside.
The smooth surface of the pane must face out-
wards.
3.
Place the cover at the top of the oven door and
press it on.
The mounting brackets must lock in place on both
sides.
4.
Attach the oven door.
→"Attaching the appliance door", Page13
Note:Only use the oven once the glass panes have
been correctly fitted.
10.5 Attaching the appliance door
Reattach the oven door in the reverse sequence to re-
moval.
WARNING‒Risk of injury!
The oven door might accidentally fall or a hinge may
suddenly snap shut.
▶ In this case, do not hold onto the hinge. Call cus-
tomer service.
1.
When attaching the oven door, ensure that both
hinges are inserted in the opening direction.
2.
The notch on the hinge must engage on both sides.
