English | 47

180°

A

B

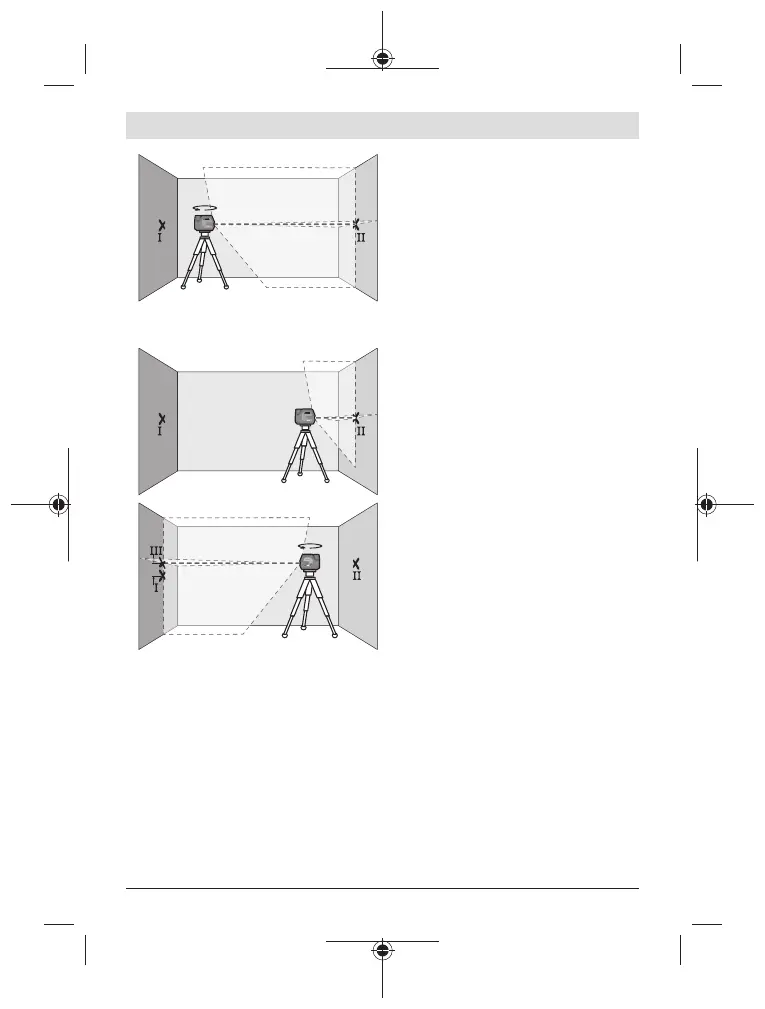

– Turn the measuring tool 180°, allow it to

level in and mark the point where the

laser lines cross on the opposite wall B

(pointⅡ).

– Position the measuring tool –without rotating it– close to wallB, switch it on and al-

low it to level in.

A

B

– Align the height of the measuring tool

(using the tripod or by placing objects

underneath as required) so that the

point where the laser lines cross exactly

hits the previously marked pointⅡ on

wallB.

d

180°

A

B

GCL 12V-50-22 CG

– Turn the measuring tool 180° without

adjusting the height. Aim it at wallA

such that the vertical laser line runs

through the already marked pointⅠ. Al-

low the measuring tool to level in and

mark the point where the laser lines

cross on wallA (pointⅢ).

– The discrepancy d between the two marked pointsⅠ and Ⅲ on wallA reveals the ac-

tual height deviation of the measuring tool.

The maximum permitted deviation on the measuring distance of 2×5m=10m is as fol-

lows:

10m×±0.3mm/m=±3mm. The discrepancy d between pointsⅠ and Ⅲ must therefore

amount to no more than 3mm.

Checking the Level Accuracy of the Horizontal Line

For this check, you will need a free area of 5×5m.

– Mount the measuring tool in the middle between wallsA and B on a tripod, or place it

on a firm, level surface. Switch on the measuring tool and select horizontal line mode.

Allow the measuring tool to level in.

Bosch Power Tools 1 609 92A 9B1 | (14.08.2024)
