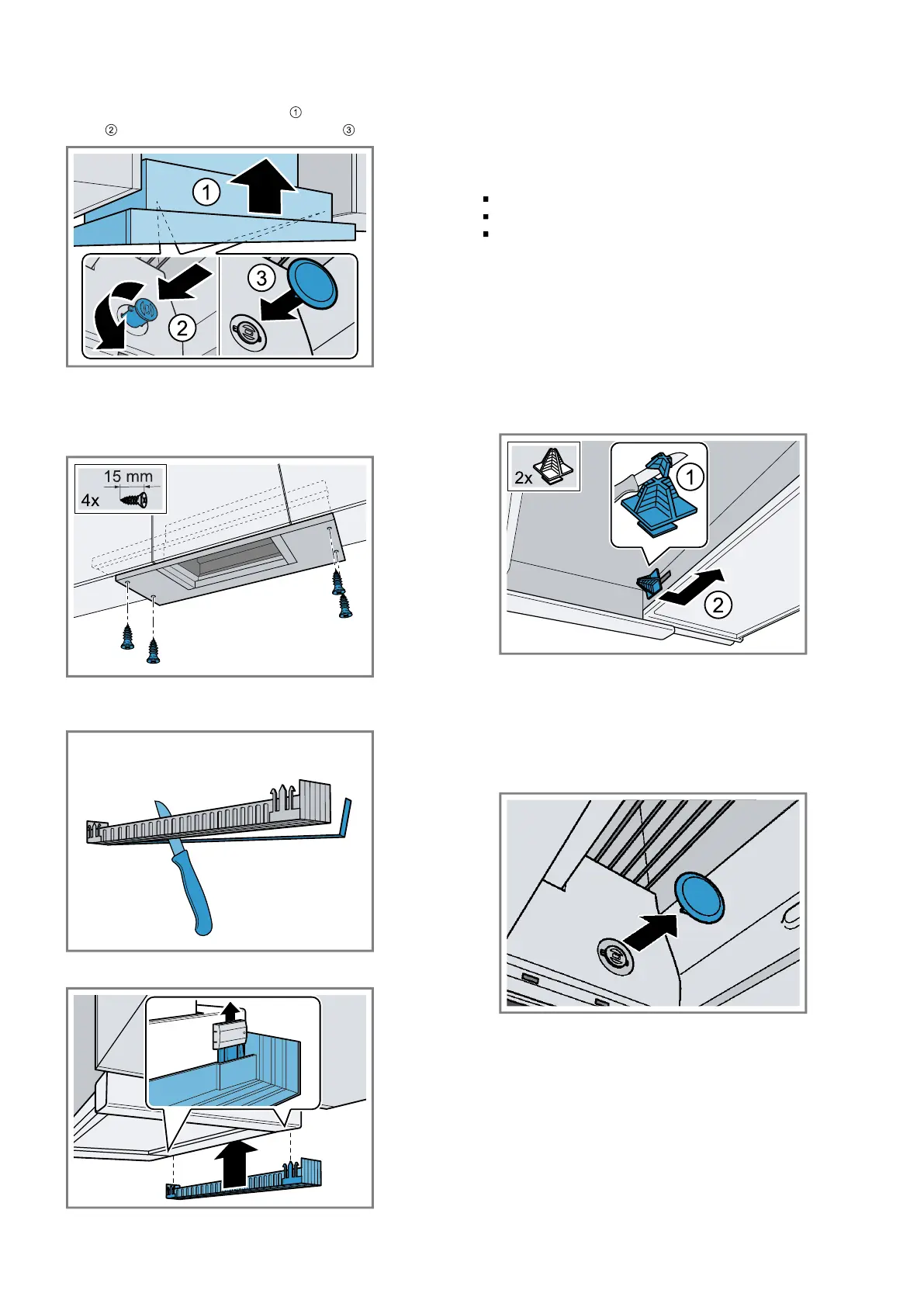

en Installation instructions
Installing the appliance
1.
Fit the appliance in the cabinet , lock the fastening
bolts and attach the protective caps .
2.
Appliance width 90cm: Pull the filter pull-out out com-
pletely towards the front. Also use two screws each
on the left and right to screw the appliance to the
side upper cabinets from below.
3.
Adjust the wall closing strip to the clearance between
the appliance and the wall.
4.
Snap the wall closing strip into the holders.
5.
Fit the grease filters.
6.
Establish the pipe connection.
7.
Establish the electrical connection.
Note
You can conceal the housing of the extractor hood
within the upper cabinet. In doing so, observe the follow-
ing:
The intermediate floor must not rest on the housing.
The front panel must not be secured to the housing.
Access to the housing must remain possible in order
to change the filter and for after-sales service.
Changing the filter pull-out's limit stop
On some versions of the appliance, the limit stop for the
filter pull-out can be changed. Spacers are included with
these appliances in order to set the appliance's handle
strip so that it is flush with the fitted unit.
1.
Pull the filter pull-out towards the front.
2.
Shorten the spacers to the required dimension and in-
sert them into the slot specified.
Removing the appliance
1.
Cover the hob to prevent damage.
2.
Disconnect the electrical connection.
3.
Remove the pipe connection.
4.
Remove the grease filters.
5.
Remove the protective caps from the fastening bolts.
