en Installation instructions
13.4 General information
Follow these general instructions during the installation.
For the installation, observe the currently valid build-
ing regulations and the regulations of the local electri-
city and gas suppliers.
When discharging the exhaust air, the official and
legal regulations, such as the regional building code.,
must be observed.
In order to freely access the appliance for servicing,
select an easy-to-reach installation site.
The surfaces of the appliance are sensitive. Avoid
damaging them during installation.
13.5 Instructions for the electrical
connection
In order to safely connect the appliance to the electrical
system, follow these instructions.
WARNING‒Risk of electric shock!
It must always be possible to disconnect the appliance
from the electricity supply. The appliance must only be
connected to a protective contact socket that has been
correctly installed.
The mains plug for the mains power cable must be
easily accessible after the appliance is installed.
If this is not possible, an all-pole isolating switch must
be integrated into the permanent electrical installation
according to the conditions of overvoltage category III
and according to the installation regulations.
The permanent electrical installation must only be
wired by a professional electrician. We recommend
installing a residual-current circuit breaker (RCCB) in
the appliance's power supply circuit.
Sharp-edged components inside the appliance may
damage the connecting cable.
Do not kink or trap the connecting cable.
The connection data can be found on the rating plate.
Page9
The connecting cable is approx.1.30m long.
This appliance complies with the EC interference sup-
pression regulations.
The appliance corresponds to protection class 1. You
should therefore only use the appliance with a pro-
tective earth connection.
Do not connect the appliance to the power supply
during installation.
Ensure that the protection against contact is guaran-
teed during installation.
13.6 Information on the installation situation
Install this appliance in a kitchen cupboard.
To install additional special accessory parts, observe
the enclosed installation instructions.
The width of the extractor hood must correspond at
least with the width of the hob.
To optimally detect the cooking vapours, install the
appliance in the middle of the hob.
13.7 Instructions for the exhaust air pipe
The appliance manufacturer does not provide any war-
ranty for faults attributable to the pipeline.
Use a short, straight exhaust air pipe with as large a
pipe diameter as possible.
Long, rough exhaust air pipes, many pipe bends or
small pipe diameters reduce the suction power and
increase the fan noise.
Use an exhaust pipe that is made of non-combustible
material.
To prevent condensate from returning, fit the exhaust
pipe with a 1° gradient from the appliance.
13.8 Installation
Checking the unit
1.
Check whether the fitted unit is level and has suffi-
cient load-bearing capacity.
The maximum weight of the appliance is 18kg.
Note: Note the furniture manufacturer's specifications
with regard to the load-bearing capacity of the fitted
unit.
2.
Ensure that the fitted unit is heat-resistant up to
90°C.
3.
Ensure that the fitted unit is still stable after the cut-
outs have been made.
4.
Ensure that the fitted unit complies with the following
dimensions:
Width 600mm
Depth Min. 320mm
With lowering frame:
Min.350mm
Position Min. 390mm
With CleanAir circulating-
air set, min. 600mm
Wall thickness 16mm or 19mm
Preparing the units
Requirement: The unit is suitable for the installation.
"Checking the unit", Page12
1.
Cover the hob to prevent damage.
2.
Ensure that the stability of the fitted unit is guaranteed
after the cut-outs have been made.
3.
If the cabinet is less than 320mm deep, remove part
of the back panel.
4.

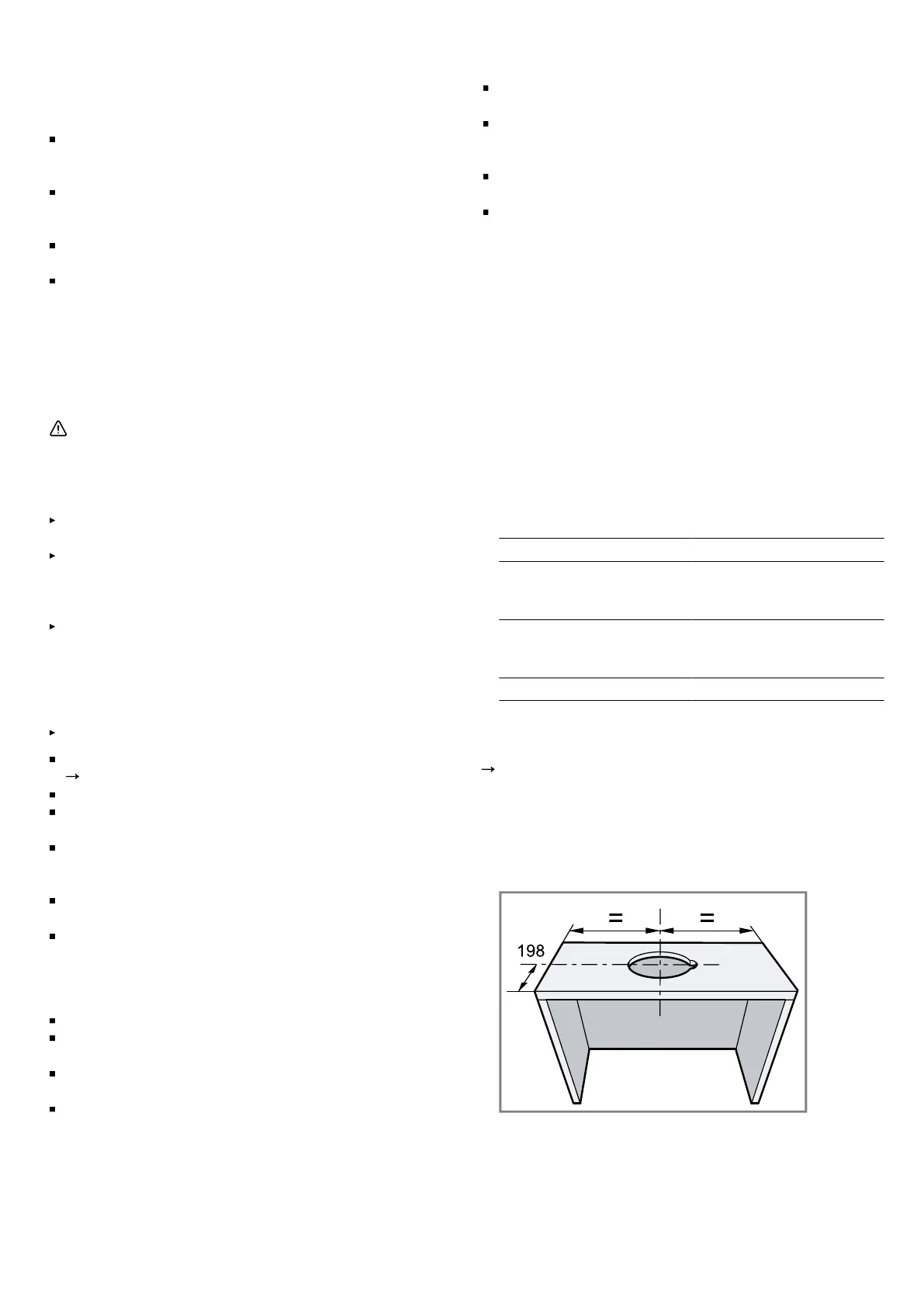

Create the cut-out for the pipe connection.
5.
If the cabinet base is in place, remove it.
6.
Remove any shavings.
12
