Installation instructions en
Electrically connecting an appliance without a
protective contact plug
Note: Only licensed specialists may connect the appli-
ance. Damage caused by incorrect connection is not
covered under the warranty.
An isolating switch must be integrated into the perman-
ent electrical installation according to the installation
regulations.
1.
Identify the phase and neutral conductors in the
socket.
The appliance may be damaged if it is not connected
correctly.
2.
See the rating plate for the voltage.
3.
Connect the wires of the mains power cable accord-
ing to the colour coding:
Green/yellow = Protective conductor
Blue = Neutral conductor
Brown = Phase (external conductor)

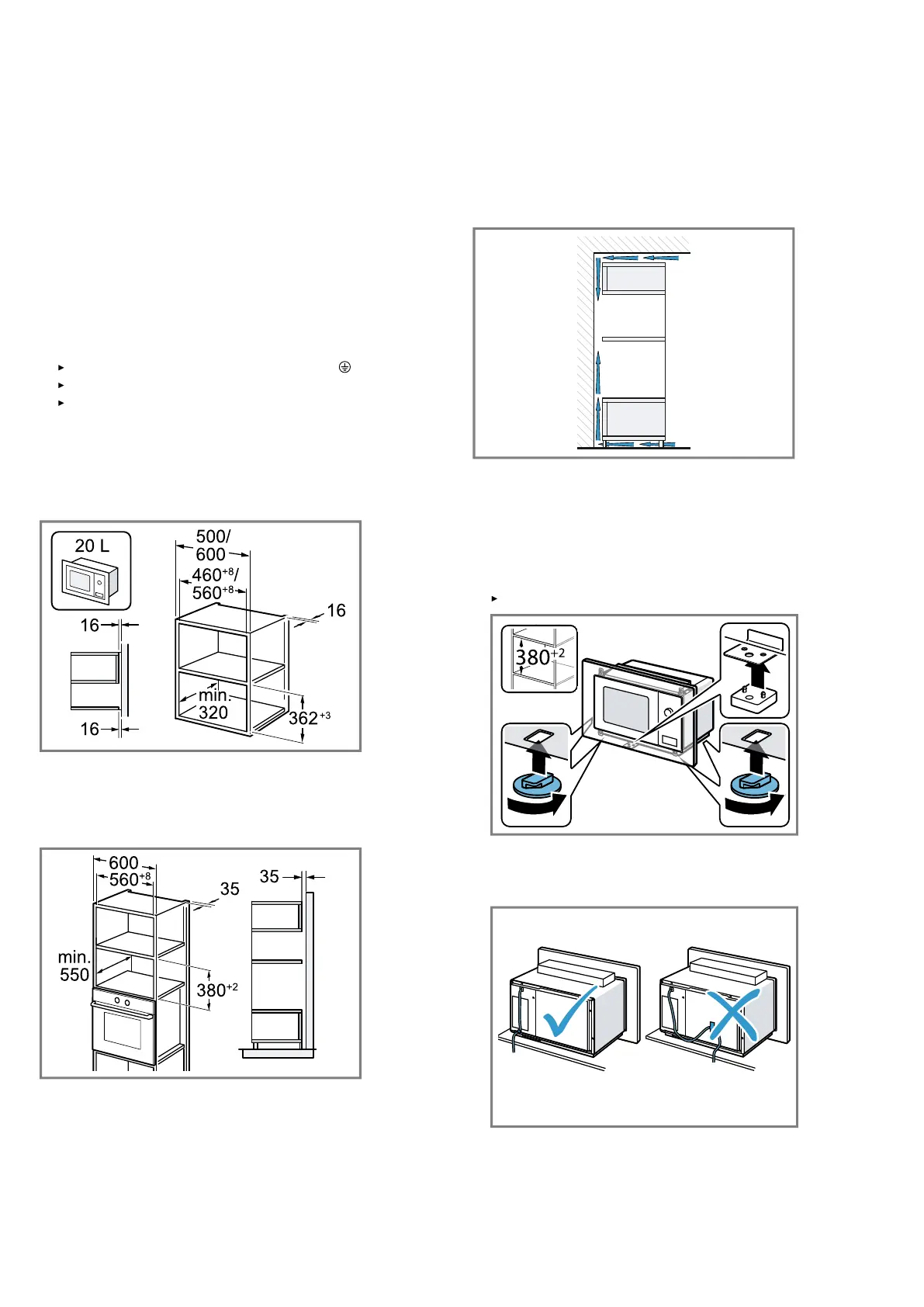

18.4 Installation in a wall unit
Observe the installation dimensions and the safety clear-
ances in an upper cabinet.
Only install 20l appliances in a wall unit.
18.5 Installing in a tall cupboard
Observe the installation dimensions and the safety clear-
ances in a tall unit.
18.6 Installing two appliances on top of each
other
Your appliance can also be installed above or below an-
other appliance. Observe the installation dimensions
and the installation instructions when installing appli-
ances on top of each other.
To ventilate the appliances, the intermediate floor must
have a ventilation cut-out.
To ensure sufficient ventilation of the two appliances,
there must be a ventilation opening of at least 200cm²
in the plinth area. To do this, trim the base panel or fit a
ventilation grille.
Ensure that air exchange is guaranteed in accordance
with the diagram.
Only install appliances up to a height that allows the ac-
cessory to be easily removed.
18.7 Preparing the 20l appliance
1.
For a cabinet niche of 380
+2
mm in height, secure the
feet to the bottom of the microwave.
Secure the spacer to the mounting bracket.
2.
Route the connecting cable along the back of the ap-
pliance so that it does not become hot, kinked or
trapped.
