Installation instructions en
25
WARNING‒Risk of electric shock!
Incorrect installation is dangerous.
▶ Only a qualified electrician may route the socket or
replace a power cable while taking into considera-
tion the applicable regulations.
▶ Connect the appliance only to a correctly installed,
earthed socket.
▶ If the plug is no longer accessible following installa-
tion, an all-pole isolating unit with a contact clear-
ance of at least 3mm must be available on the in-
stallation side. Contact protection must be ensured
by the installation.
Electrically connecting an appliance without a
protective contact plug
Note:Only licensed specialists may connect the appli-
ance. Damage caused by incorrect connection is not
covered under the warranty.
An isolating switch must be integrated into the perman-
ent electrical installation according to the installation
regulations.
1.
Identify the phase and neutral conductors in the
socket.
The appliance may be damaged if it is not connec-
ted correctly.
2.
See the rating plate for the voltage.
3.
Connect the wires of the mains power cable accord-
ing to the colour coding:
‒ Green/yellow = Protective conductor
‒ Black = Neutral conductor
‒ Red = Phase (external conductor)

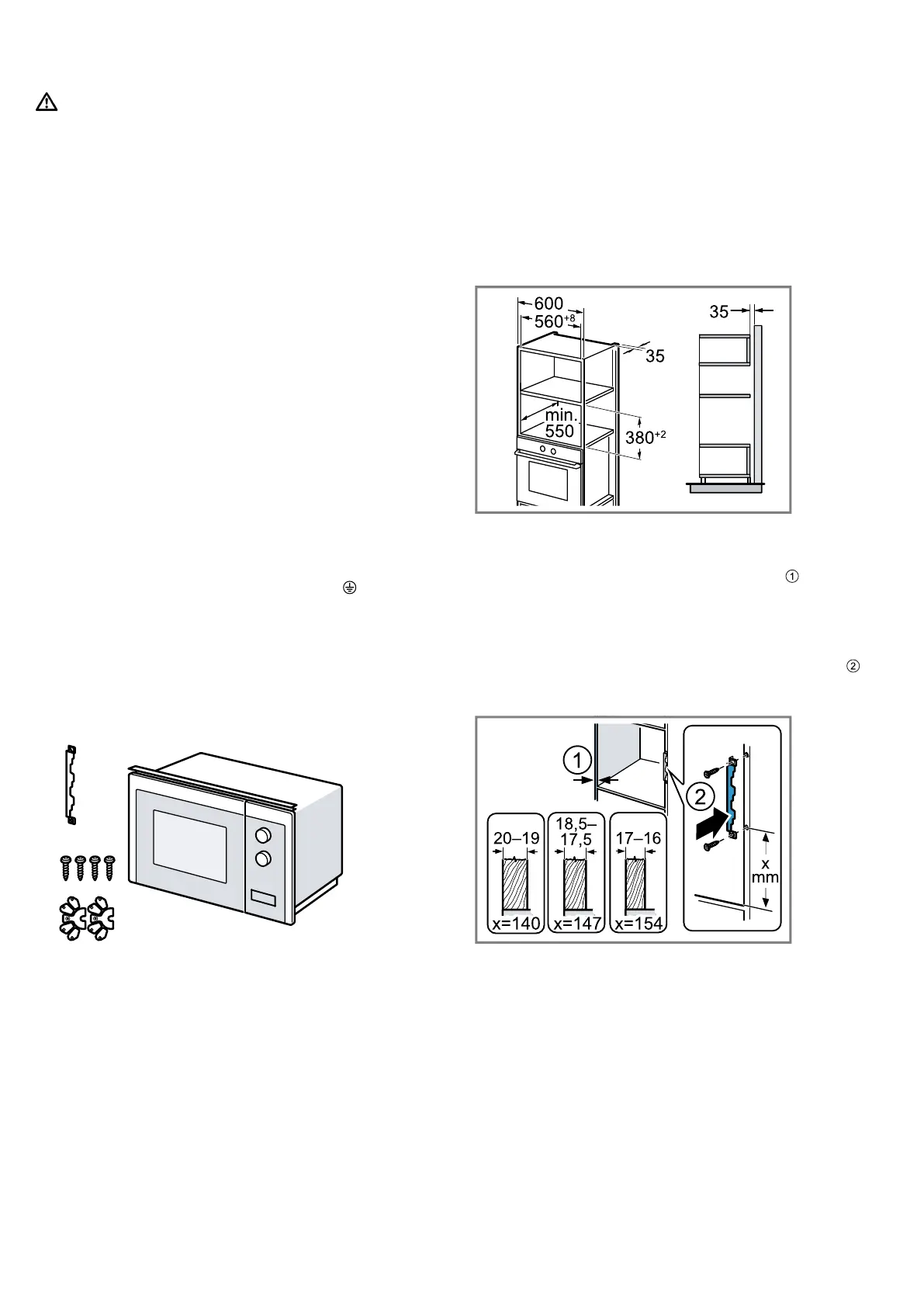

17.3 Scope of delivery
After unpacking all parts, check for any damage in
transit and completeness of the delivery.
17.4 Fitted units
This is where you can find information about safe in-
stallation.
ATTENTION!
Any shavings may impair the function of electrical com-
ponents.
▶ Carry out cut-out work on the units before installing
the appliance.
▶ Remove the shavings.
¡ The minimum installation height is 850mm.
¡ The installation cabinet must not have a back panel
behind the appliance.
¡ The ventilation slots and intake openings must not
be covered.
¡ Fitted units must be heat-resistant up to 90°C, and
adjacent unit fronts up to 65°C.
¡ This appliance is not suitable for installation in a
handle-free kitchen unit with vertical handle strip.
17.5 Installation dimensions in the tall unit
Observe the installation dimensions and the safety
clearances in a tall unit.
17.6 Preparing the tall unit
1.
Determine the wall thickness of the unit.
An x-value is assigned to the wall thickness.
2.
Note:The x-value corresponds to the clearance
between the lower hole on the connection plate and
the bottom of the fitted unit.
Screw the connection plate tightly to the tall unit.
When doing so, observe the x-value that was de-
termined.
