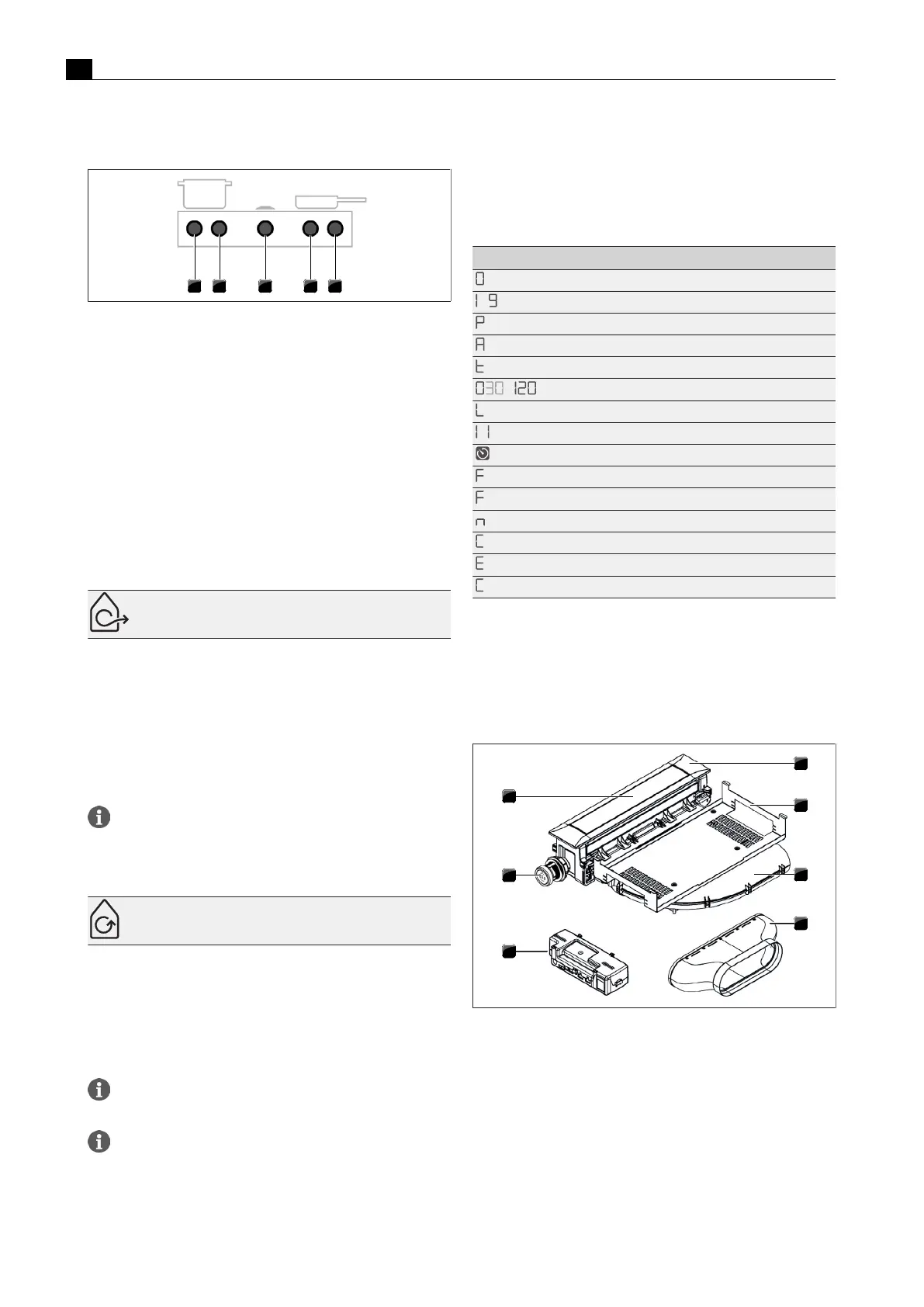

Appliance description
EN
12 bora.com
Control knob assignment
1 2 3
4
5
Fig.3.4
Control knob assignment
[1]
Control knob for left cooktop, front cooking zone
[2]
Control knob for left cooktop, rear cooking zone
[3]
Control knob for cooktop extractor
[4]
Control knob for right cooktop, front cooking zone
[5]
Control knob for right cooktop, rear cooking zone
3.3
Cooktop extractor appliance
description
3.3.1
Installation variations
Depending on the model you purchased, the cooktop extractor can
be operated as an exhaust air or a recirculating air version.
Exhaust air
The air suctioned away is purified by the grease filter and expelled
into the open air via a duct system.
The exhaust air must not be expelled into:
T
a smoke or exhaust gas flue that is in operation
T
a shaft used for the aeration of rooms where fireplaces are
installed.
If the exhaust air is to be directed into a smoke or exhaust gas flue
that is not in use, the installation must be checked and approved by
the responsible heating engineer.
If the cooktop extractor is used in an exhaust air system, the
extractor power is automatically increased for the first 20
seconds when set on a lower power level (wall sleeve
function).
Recirculation
The air suctioned away is purified by the grease filter and an activated
charcoal filter and fed back into the room in which the appliance is
installed.
To prevent odours in recirculation mode, an odour filter must be
used. For health and hygiene reasons, the activated charcoal filter
must be replaced at the recommended intervals (see"7Cleaning and
maintenance").
In recirculation mode, ensure sufficient ventilation and
aeration to expel humidity.
If the cooktop extractor is used in a recirculating air system,
when a power level is set the operating time is automatically
deducted from the recirculation filter service life. The
remaining filter service life can be seen in the menu.
3.3.2
Cooktop extractor display and
symbols
The fan power levels, extractor functions and system functions are
shown in the cooktop extractor control knob display.
Control knob display Meaning
Appliance is switched off
‑
Power levels
Power setting
Automatic extractor function
Short-time timer
‑
Time display
Child lock
(fading in and out)
Pause function
active short-time timer/cooking zone timer
Filter service display
(flashing)
Filter service display
Automatic after-run
Cover flap cleaning position
Error message (see"8Troubleshooting")
…
Configuration menu
Tab.3.3
Operating panel display
3.3.3
Structure of the cooktop
extractors
Cooktop extractor PKA3/PKA3AB
1
2
3
4
5
6
7
Fig.3.5
Cooktop extractor PKA3/PKA3AB
[1]
Cover frame
[2]
Holding plate
[3]
Curved duct piece
[4]
Straight duct piece
[5]
Universal control unit
[6]
Control knob
[7]
Cover flap
