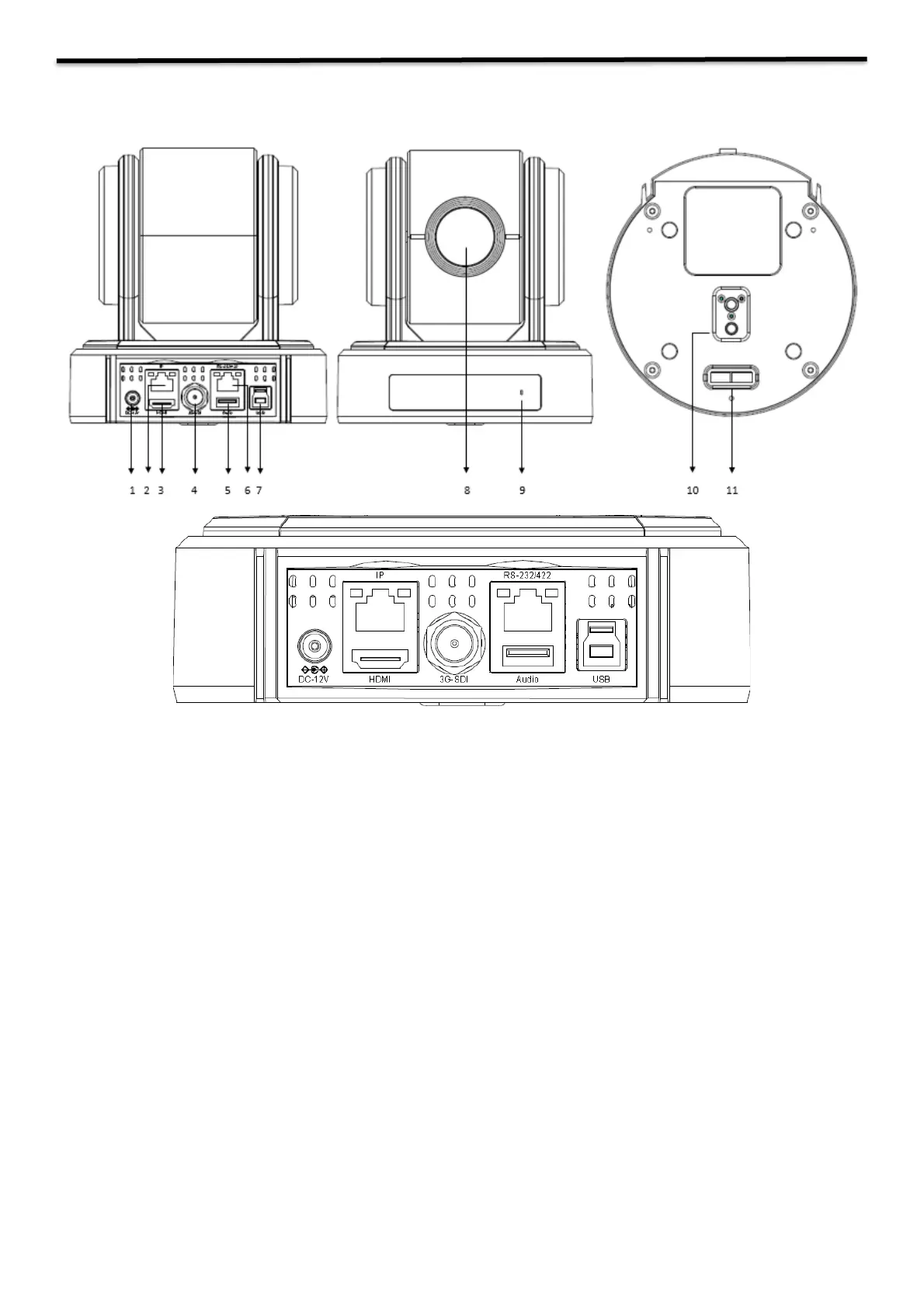

Camera Diagrams

1. 12V DC Power Port

Connect the supplied DC power adaptor and cord.

2. IP Network RJ45 Port

For VISCA over IP control and IP video streaming, with POE+(IEEE802.3at).

3. HDMI Port (HDMI 1.4)

4. 3G-SDI Video Output

5. USB Port

• For firmware upgrade.

• Used for audio input/output, USB port to 3.5mm audio jack adapter included.

6. RS232/RS422 Control Port (RJ45)

RJ45 to RS422 adapter cable is provided. (RS232 connection refers to user guide)

7. USB Connector (TYPE B)

USB2.0 video output.

8. Lens

This is a 5X/10X/20X magnification optical zoom lens

9. IR Remote Controller Sensors

These are sensors to receive commands from infrared remote controller.

10. Tripod mounting holes

11. Bottom DIP Switch
