RS232 Connection

1. Set RS232 control method on Bottom Dip Switch.

2. Set Baud Rate on Bottom Dip Switch to the same as Baud Rate setting on the keyboard you are using.

3. Set specific camera address that you want to control the camera for on Bottom Dip Switch.

4. If you want to have the camera address to be automatically assigned by VISCA controller, set camera Dip Switch address to

5. Reboot the camera by turning it Off/On after the Bottom Dip Switch has been set up correctly.

6. Camera supports Daisy Chain connection up to 7 cameras.

7. The controller must be VISCA compatible.

8. You must use CAT5/6 network cable to make RS232 connection by following the pin

definition below: (Do not use regular premade network cable nor the cable adaptor included with the product).

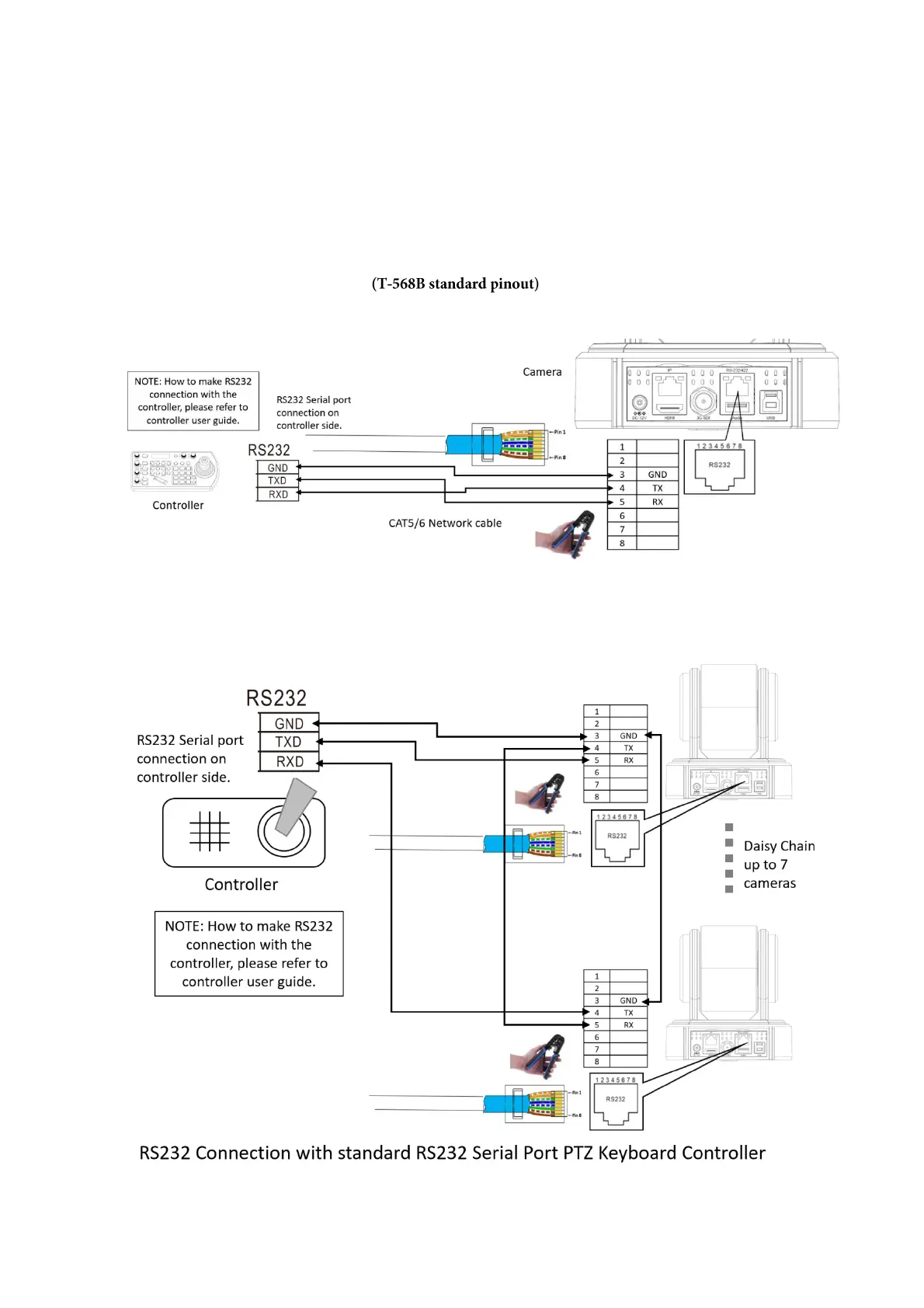

9. How to make RS232 Daisy Chain multiple camera connection with standard RS232 serial port controller as

below:
