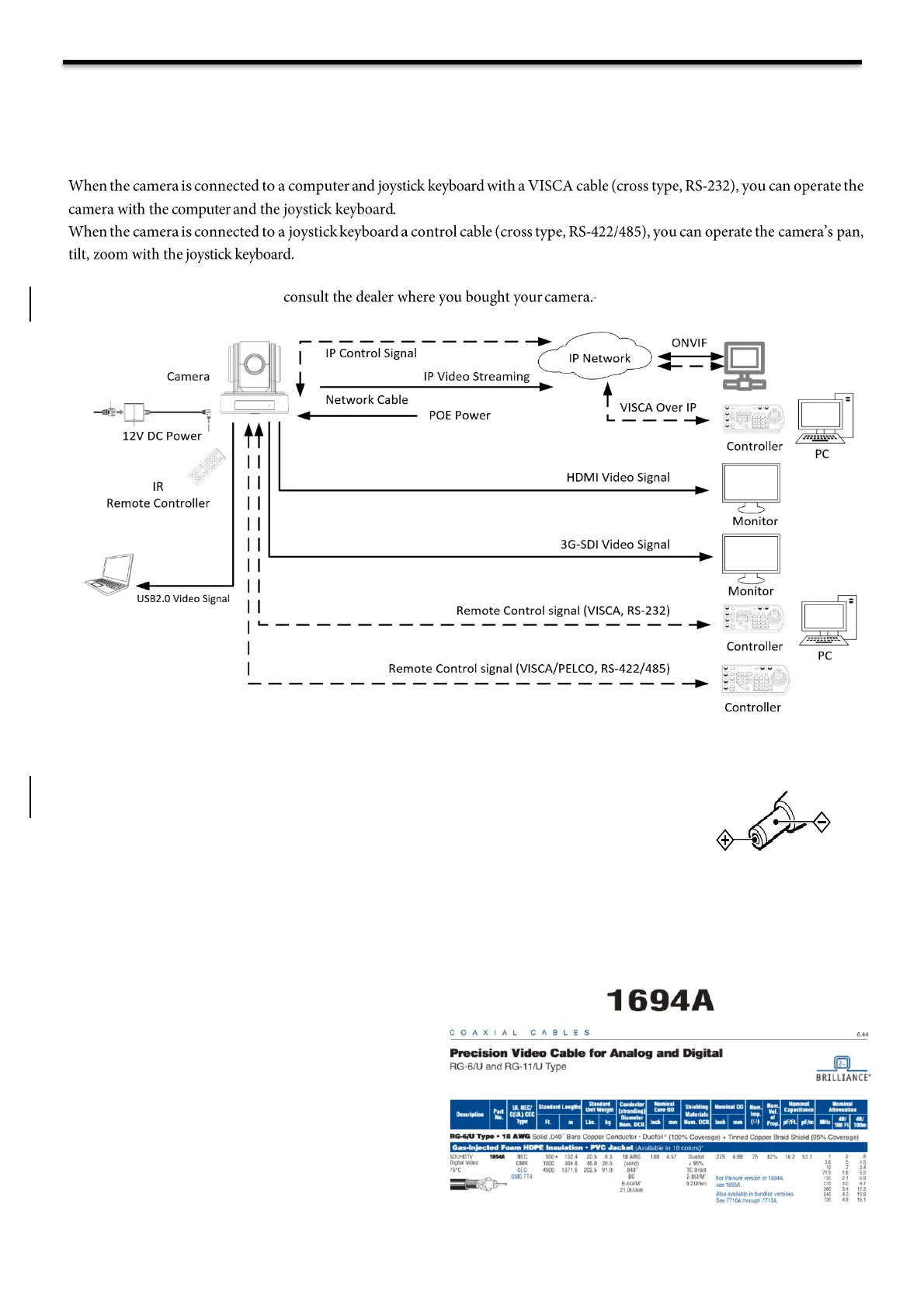

System Configuration

Connection

In this connection configuration, HDMI cable, SDI video cable, data cable, Network cable is required. To obtain these third-

party components or accessories,

Power

• Use only the DC power adaptor (JEITA type4) supplied with the unit. Do not use any

other DC power adaptor.

• If using POE to power the camera, PoE+(IEEE802.3at) is supported

• Ensure that the POE power source has sufficient power budget to power the camera, or some features may not

function properly.

Cable Requirements

• Network Cable: 10/100 Mbps Ethernet CAT

5/5E/6 UTP cables are applicable to the

ANSI/EIA/TIA-568A/B and ISO/D. Eight

wires in the network cable need to be

inserted in parallel into the top of the cable

connector. The cable connector needs to be

crimped in position. When the cable

connector is in position, ensure that the metal

pieces of the cable connector are parallel to

each other and the clamp of the cable

connector is intact.

• SDI Cable: For broadcast use,

Belden1694A/5CFB is a suitable cable to

transmit broadcast-quality video:
