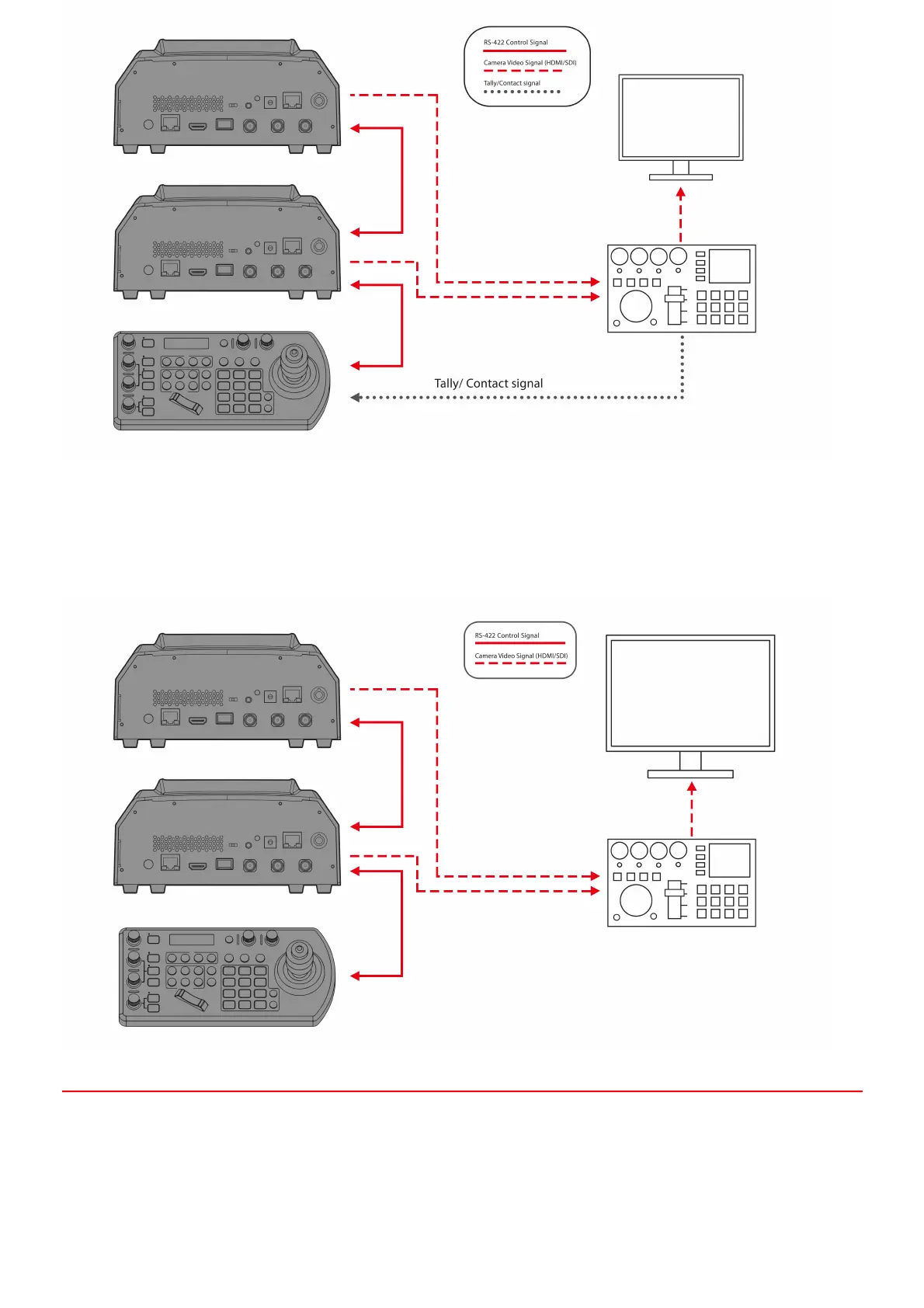

2. GPI I/O Output Mode for Tally Signal Sent by Keyboard Controller:

a. Connect the camera to the keyboard using a standard RS-422 control cable.

b. Navigate to KEYBOARD SETTING > GPI I/O > Setting, and switch it to Output mode. Exit directly to the home menu.

c. After completing the above operation, you can switch between different cameras using the keyboard. For instance, selecting camera 1 on the keyboard

sends a tally signal to camera 1 via the standard RS-422 control cable. As a result, camera 1's tally light turns on, and thekeyboard gains control over camera

1's pan and zoom.

d. If you switch to camera 2 on the keyboard, the tally light for camera 2 will turn on, and the tally light for camera 1 will turn off.



Web Interface Conguration



Once connected to the network, the camera can be congured and controlled through the web interface on any web browser that supports HTML5. This next section

will explain the various sections of the web interface and what they can do.



Web Interface Login

To log in to the web interface, rst, make sure that the camera is connected to the network and thecomputer is on the same subnet as the camera.


