PELCO P/D Keyboard RS485 Connection
Important: Utilize RS422 ports when establishing an RS485 connection. Only employ TX+ and TX- for RS485 connections.
• Set the RS422 control method using the OSD menu or Web interface.
• Set the camera ID on the OSD menu using the remote controller.
• To ensure the settings have been applied, restart the camera by switching it off and then back on.
• Use a PELCO P/D compatible keyboard for seamless integration.
• Utilize preset # 95 on the keyboard to access/exit the camera OSD menu.
• Navigate the OSD menu using the joystick and buttons "OPEN" or "CLOSE."
• For the keyboard operation details, refer to the user manual of the specic keyboard in use.

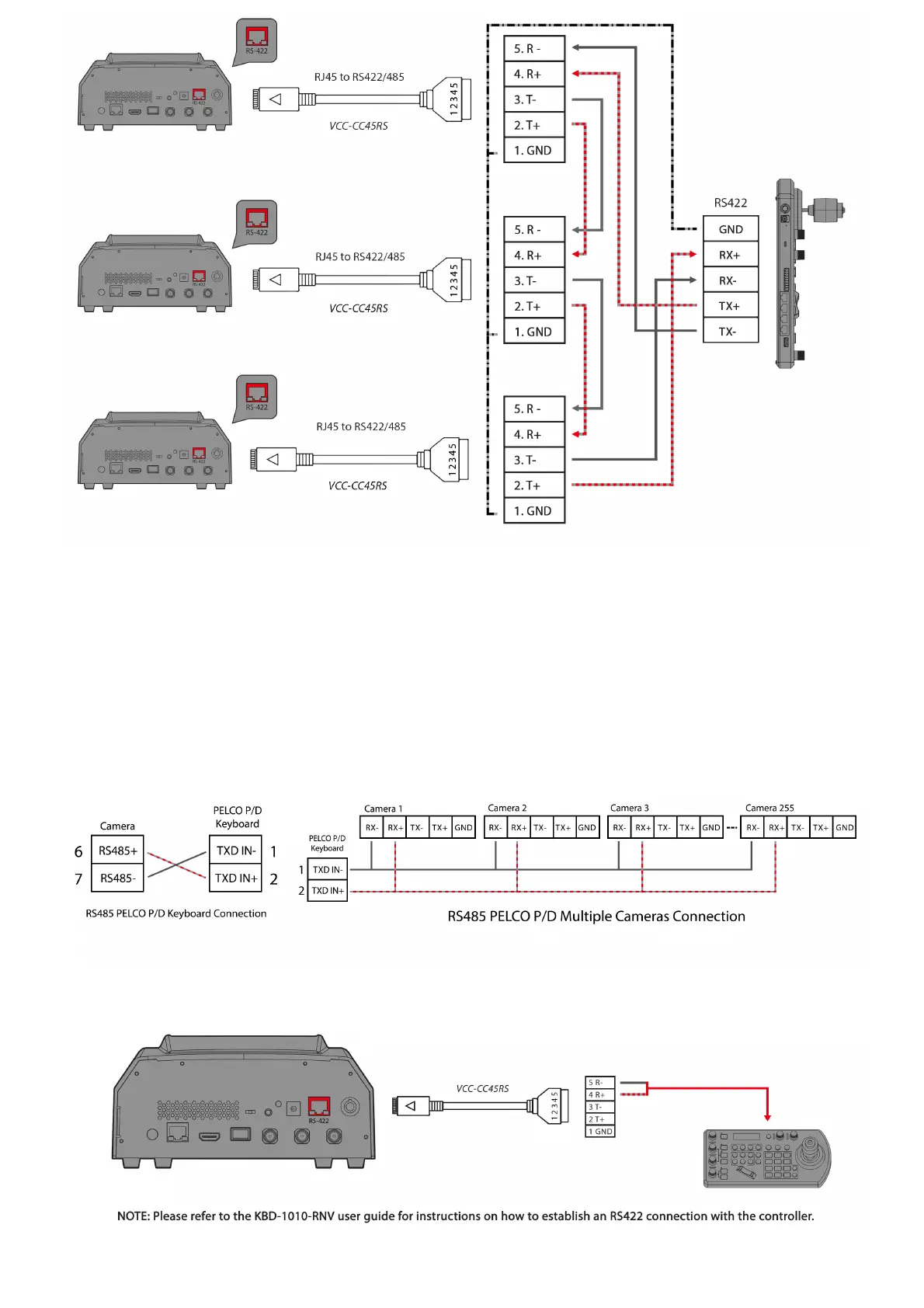

PELCO RS485 Connection
Utilize extension cables that come with an RJ45 to RS422 Phoenix connector adapter to establish an RS485 connection for your control device.
The extension cables that are provided, along with the RJ45 to RS422 Phoenix connector adapter, should be utilized to establish an RS422 connection for the control
device.
