CAUTION:

When one connects the camera via serial to a Sony PTZ controller, it differs from the process with a non-Sony PTZ controller. It is crucial to

verify the pin settings for the specic controller in use.

1. The camera should be powered on, and the OSD menu should be opened or the Web Interface should be logged into using any web browser. Proceed to the

system settings and adjust the baud rate to match that of the controller. The VISCA ID should be set to a number between 1 and 7.

2. 

A standard terminated CAT5 or CAT6 cable can be used to directly connect the camera to the controller. Alternatively, the included RJ45 to RS422 Control Cable

Adapter can be used to connect unterminated CAT5/CAT6 cables between the camera and controller. The pin connection diagrams provided below should be

followed, taking into account the specic controller in use and the desired connection.



Use RS-422 (VISCA) / RS485 (PELCO P/D)

For camera operations, the RS-422/485 port can be utilized to connect controllers, such as a joystick keyboard or a PC station. This allows for the effortless

management of pan, tilt, and zoom functions, as well as access to all preset functions using the controller’s buttons.

To operate a PC station, it is essential to have a software application that is compatible with this unit.



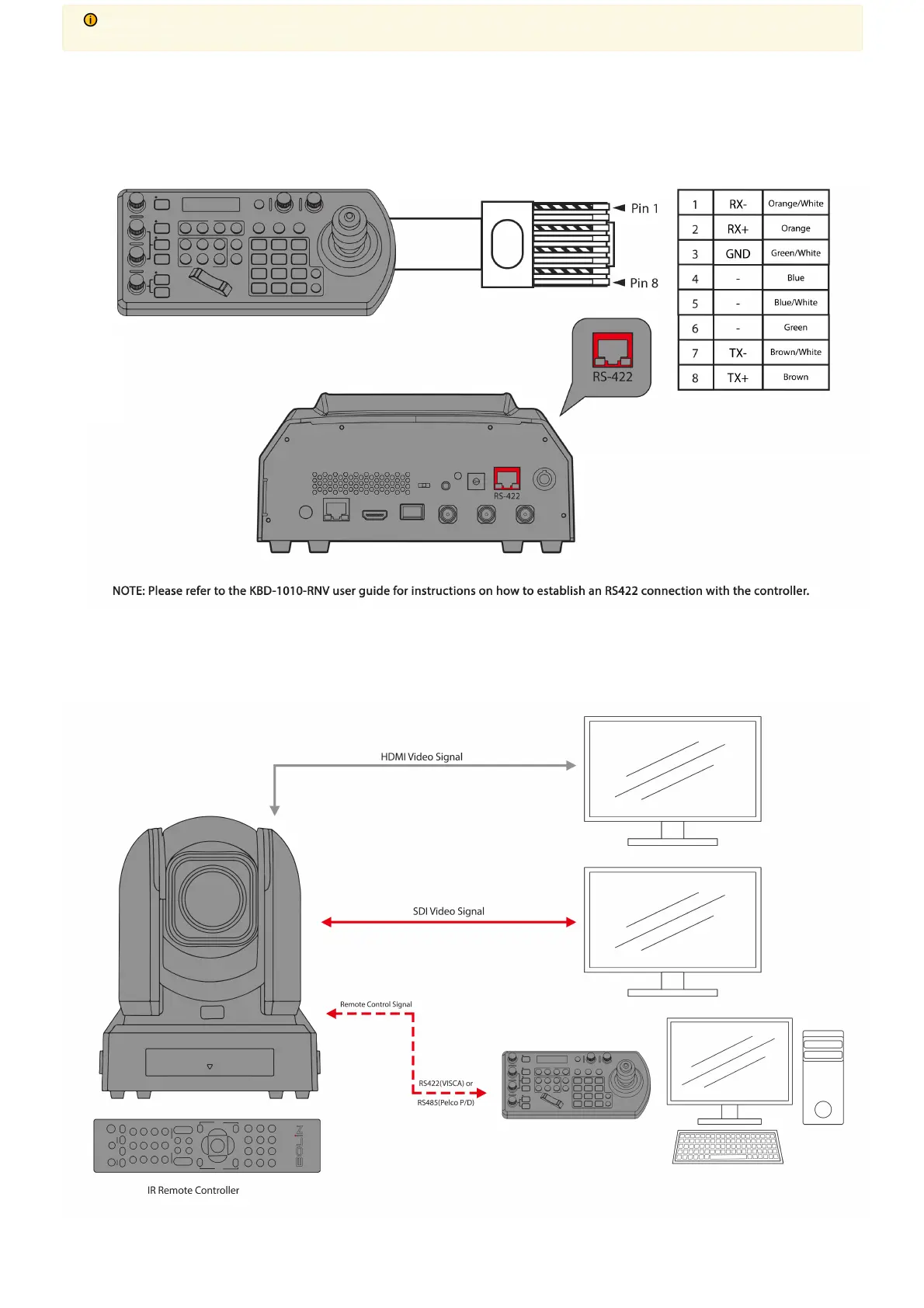

SONY Keyboard RS422 Connection

Guide for Establishing RS422 Connection and Daisy Chain Conguration for Multiple Cameras with a SONY Controller.


