a. After enabling the WDR function, you can improve the image by adjusting the WDR level.

i. Use level 7 or higher when there is a high contrast between the bright and dark areas of the

scene. In the case of low contrast, it is recommended to disable WDR or use level 1-6.

3. To restore the default settings, click Default.

Smart Illumination

NOTE:

 This function is not supported by some models, please see the actual model for details.

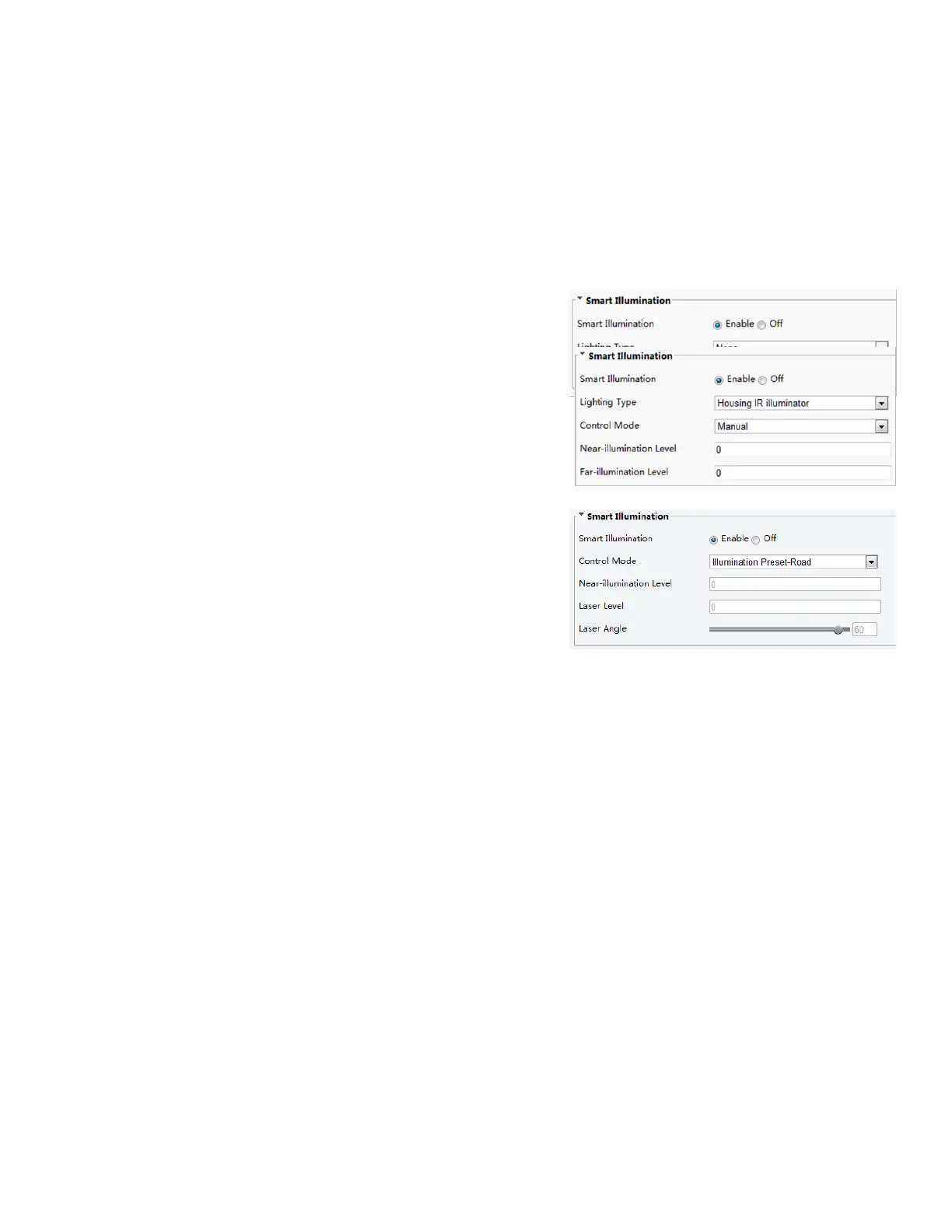

1. Click Setup > Image > Image and then click Smart

Illumination.

The Web interface of certain box camera model is displayed as

follows. Select the corresponding lightning type and then

configure other parameters.

The Web interface of certain network camera model is displayed as

follows. Follow steps below to configure the illumination

parameters.

2. Select the correct IR control mode and set the parameters. The following table describes some major parameters.

A. Control Mode

a. Global Mode: The camera adjusts IR illumination and exposure to achieve balanced image effects. Some

areas might be overexposed if you select this option. This option is recommended if monitored range

and image brightness are your first priority.

b. Overexposure Restrain: The camera adjusts IR illumination and exposure to avoid regional

overexposure. Some areas might be dark if you select this option. This option is recommended if clarity

of the central part of the image and overexposure control are your first priority.

c. Illumination Preset-Road: This mode offers strong illumination in whole and is recommended for

monitoring wide-ranging scenes, for example, road.

d. Illumination Preset-Park: This mode offers uniform light and is recommended for monitoring small

range scenes with many obstacles, for example, industrial parks.

e. Manual: This mode allows you to manually control the intensity of IR illumination.

f. Indoor: This mode is recommended for application in indoor scenes.

B. Illumination Level

a. Set the intensity level of the IR light. The greater the value, the higher the intensity. 0 means that the IR

light is turned off.

i. You can set this parameter only when Control Mode is set to Manual.

ii. You are recommended to set this parameter first for a wide-angle scene.

iii. You are recommended to set this parameter first if the scene requires an intermediate focal

length.

iv. You are recommended to set this parameter first if the scene requires a telephoto view.

3. To restore the default settings, click Default.
