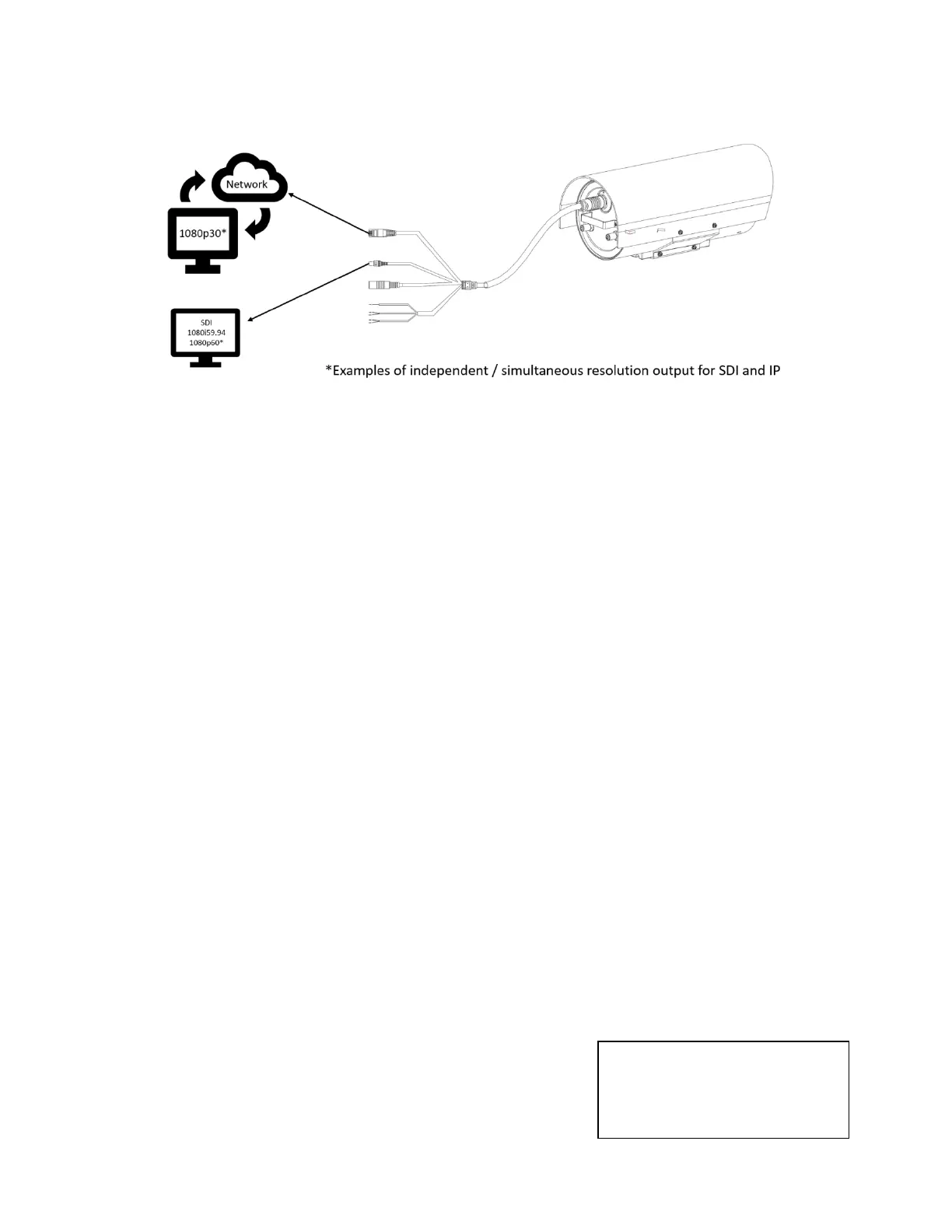

VIDEO FORMAT: SDI + IP True Dual Output:

The SDI video output and the IP video output can be configured independently. Each can be set to its own resolution. The IP

and SDI can output separate video resolutions simultaneously.

SDI output options:

B-Class models:

• 1080P: 60/59.94/50/30/29.97/25

• 1080I:60/59.94/50; 720P: 60/50/30/25

S-Class models:

• 1080P: 60/50/30/25

• 720P: 60/50/30/25

IP output options:

o 1080P:60/30/25

o 720P:60/30/25

Follow these steps to change the video format:

SDI Video format:

1. Set SDI video resolution by accessing the SDI OSD menu, and selecting SYSTEM SETUP

2. Select the SDI VIDEO format you want to have from 1080P: 60/59.94/50/30/29.97/25; 1080I:60/59.94/50; 720P:

60/50/30/25.

3. Wait for a while for camera new set video format being taken. It is normal that you cannot take the control of the

interface while the video format is being changed. Once control has been recovered, reboot the camera by

disconnecting the power, and then reconnecting the power.

IP Video format:

1. Go to IP camera Web Interface

2. Select the Video/Audio tab

3. IP video resolution can be set to one of the following: 1080P60, 1080P30, 1080P25, 720P60, 720P30, 720P25

NOTE: For more information regarding setting the IP video format, please refer to PART TWO-Network Cameras User

Manual

SYSTEM INFO:

CAMERA ID: Modify in the menu of “INTERFACE SET”

BAUD RATE: Modify in the menu of “INTERFACE SET”

SDI VIDEO: Modify in the menu of “INTERFACE SET”

IP VIDEO: Modify in the menu of “INTERFACE SET”

VERSION: The software version running on the camera

CAMERA ID ：01

BAUD RATE ：9600

SDI VIDEO：1080P/30

SV: S0N080B10020CA06
