PELCO P/D Keyboard RS485 Connection

1. Follow the connection below to make the RS485 control connection for the keyboard controller.

2. The camera default address is set to 1, default Baud Rate is set to 9600.

3. Set the keyboard controller Baud Rate to 9600. The Baud Rate of the camera and the controller must be the same.

4. Use the keyboard controller to change the camera address.

5. The controller must be PELCO D/P compatible. Use preset 95# on the keyboard to bring up/exit camera OSD menu. To operate

keyboard, please refer to the user manual of the keyboard you are using.

6. Reboot the camera by turning it Off/On after the camera address has been set up correctly.

7. Camera RS485 multi camera control supports connection up to 255 cameras.

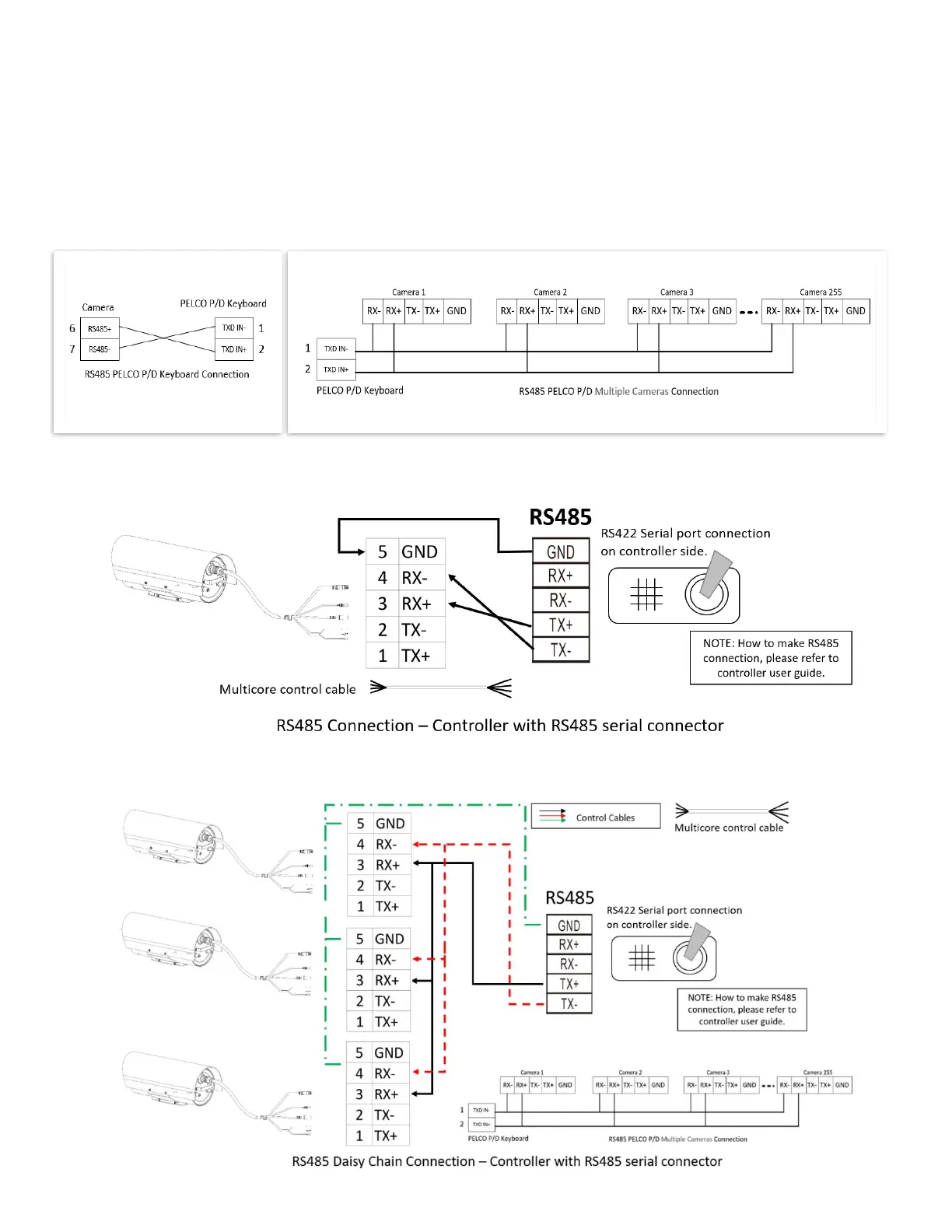

RS485 PELCO connection with RS485 serial port controller

1. 1 to 1 RS485 connection. For how to make the connection on the controller, please refer to the controller user guide.

2. RS485 Daisy Chain multiple camera connection. To make the connection on the controller, please refer to controller user guide.
