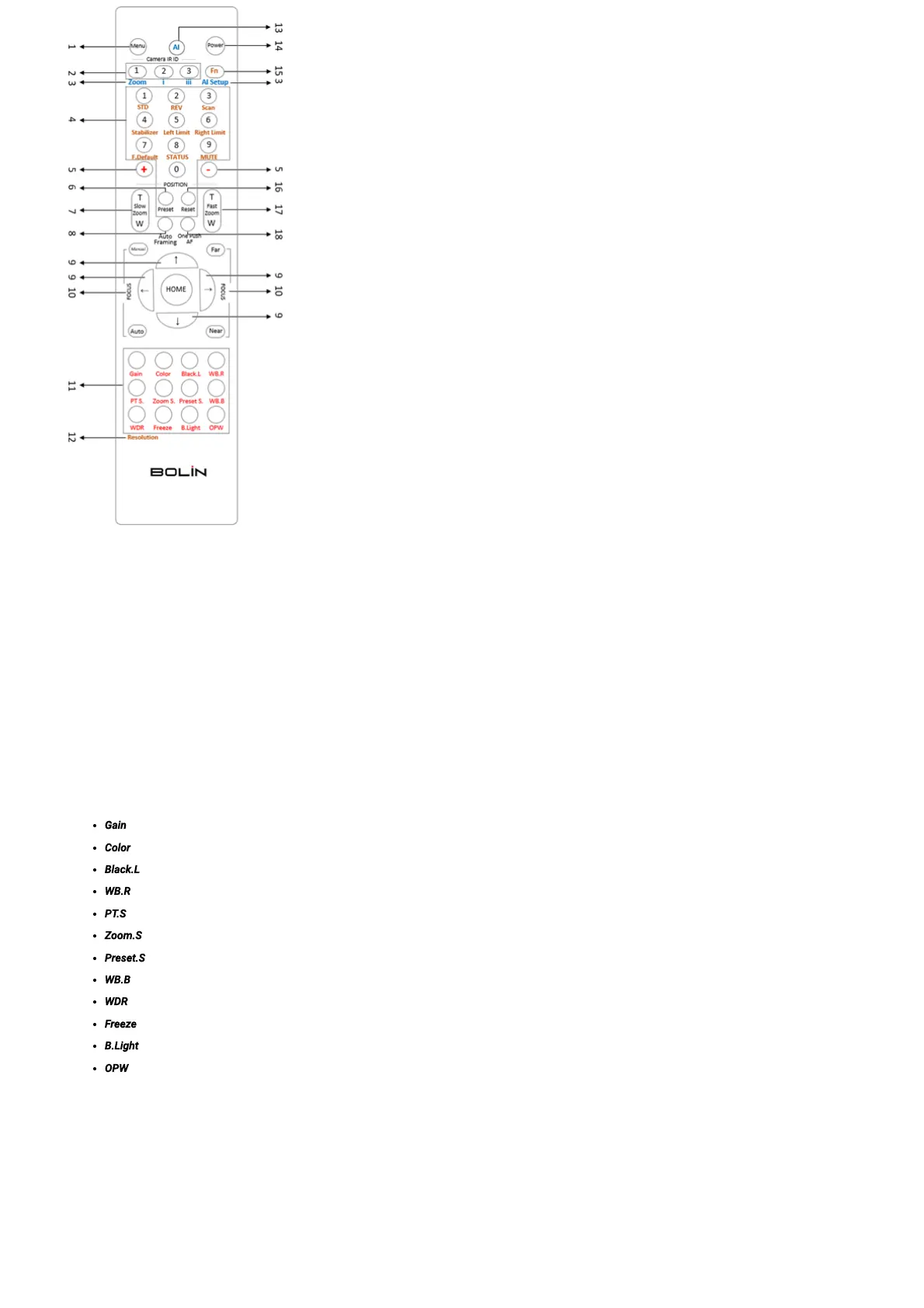

1. Menu- On-Screen Display (OSD) Toggle

2. IR ID Selector- Select which IR Channel (Camera) to be controlled

3. AI Function Buttons- Disabled

4. Buttons 1-9- Used to set & recall corresponding presets. (See #6 to set a preset and#16 to erase a preset)

5. + & - Buttons- Used in conjunction with image adjustment buttons (11) to increase or decrease parameters.

. Preset- To save a preset, hold down the "Preset" buttonand the preset number you would like to assign it to.

7. Slow Zoom- Zoom's the camera in or out in a slow speed.

. Auto Framing- Disabled

9. Direction Arrows- Pan and Tilt the camera in the corresponding direction. Navigate the OSD Menu when open.

10. Focus Adjustments- Use the "Auto" button to enable autofocus. To make manual focus adjustments, press the "Manual" button rst, followed by the "Far" or

"Near" buttons to adjust.

11. Image Adjustments- Select the property you would like to adjust, followed by the + and - buttons (5) to make the appropriate adjustment, unless otherwise noted

below. The selected function and corresponding options will glow when selected.

Gain- Image gain settings

Color- Color saturation settings

Black.L- Image black level settings

WB.R- White Balance, Red settings

PT.S- Pan/Tilt speed settings

Zoom.S- Zoom speed settings

Preset.S- Preset speed settings

WB.B- White Balance, Blue settings

WDR- Wide Dynamic Range Settings

Freeze- Freeze the video on the current frame. (Doesn't use + and - buttons)

B.Light- Back light compensation

OPW- One Push White Balance (Hold the button down while pointing the camera at a gray card to set white balance.)

12. Resolution- Used to change the video format/resolution. Press and hold the Fn button (15) and Resolution button to select the desired format. The image block

will restart after the format is changed, and the screen will go black for a few seconds.

13. AI Button- Disabled

14. Power- Press and hold for three seconds to turn the camera on/off.

15. Fn Button- Press and hold in conjunction with other buttons in dark brown text (Stabilizer, Mute, Scan, etc...) to adjust parameters.



RS-422 Serial Commands (VISCA)



The camera is equipped with an RS-422 port that facilitates VISCA control over serial commands. Additionally, the RS-422 port is compatible with RS-485. The user

can establish a serial connection between the camera and a PTZ controller or computer to execute pan, tilt, and zoom operations, as well as perform preset recalls.


