Use an ONVIF-compliant application to detect the camera.2.
Enter the camera’s IP address, ONVIF credentials (web login credentials), and port 2000 during setup.3.
Configure video and PTZ settings as needed for the application.4.
ONVIF 2.4 (Profile S)
ONVIF Port: 2000
RS-422 Serial Commands (VISCA)
The camera is equipped with an RS-422 port, which facilitates VISCA control over serial commands. This
RS-422 port is also compatible with RS-485. The camera can be connected via a serial connection to a PTZ
controller or a computer. This allows for the execution of pan, tilt, and zoom operations, as well as the
performance of preset recalls.
CAUTION: When one connects the camera via serial to a Sony PTZ controller, it differs
from the process with a non-Sony PTZ controller. It is crucial to verify the pin settings
for the specific controller in use.
The camera should be powered on, and the OSD menu should be opened or the Web Interface should be1.
logged into using any web browser. Proceed to the system settings and adjust the baud rate to match
that of the controller. The VISCA ID should be set to a number between 1 and 7.
A standard terminated CAT5 or CAT6 cable can be used to directly connect the camera to the controller.2.
Alternatively, the included RJ45 to RS422 Control Cable Adapter can be used to connect unterminated
CAT5/CAT6 cables between the camera and controller. The pin connection diagrams provided below
should be followed, taking into account the specific controller in use and the desired connection.
Use RS-422 (VISCA) / RS485 (PELCO P/D)
For camera operations, the RS-422/485 port can be utilized to connect controllers, such as a joystick
keyboard or a PC station. This allows for the effortless management of pan, tilt, and zoom functions, as well
as access to all preset functions using the controller’s buttons.
To operate a PC station, it is essential to have a software application that is compatible with this unit.

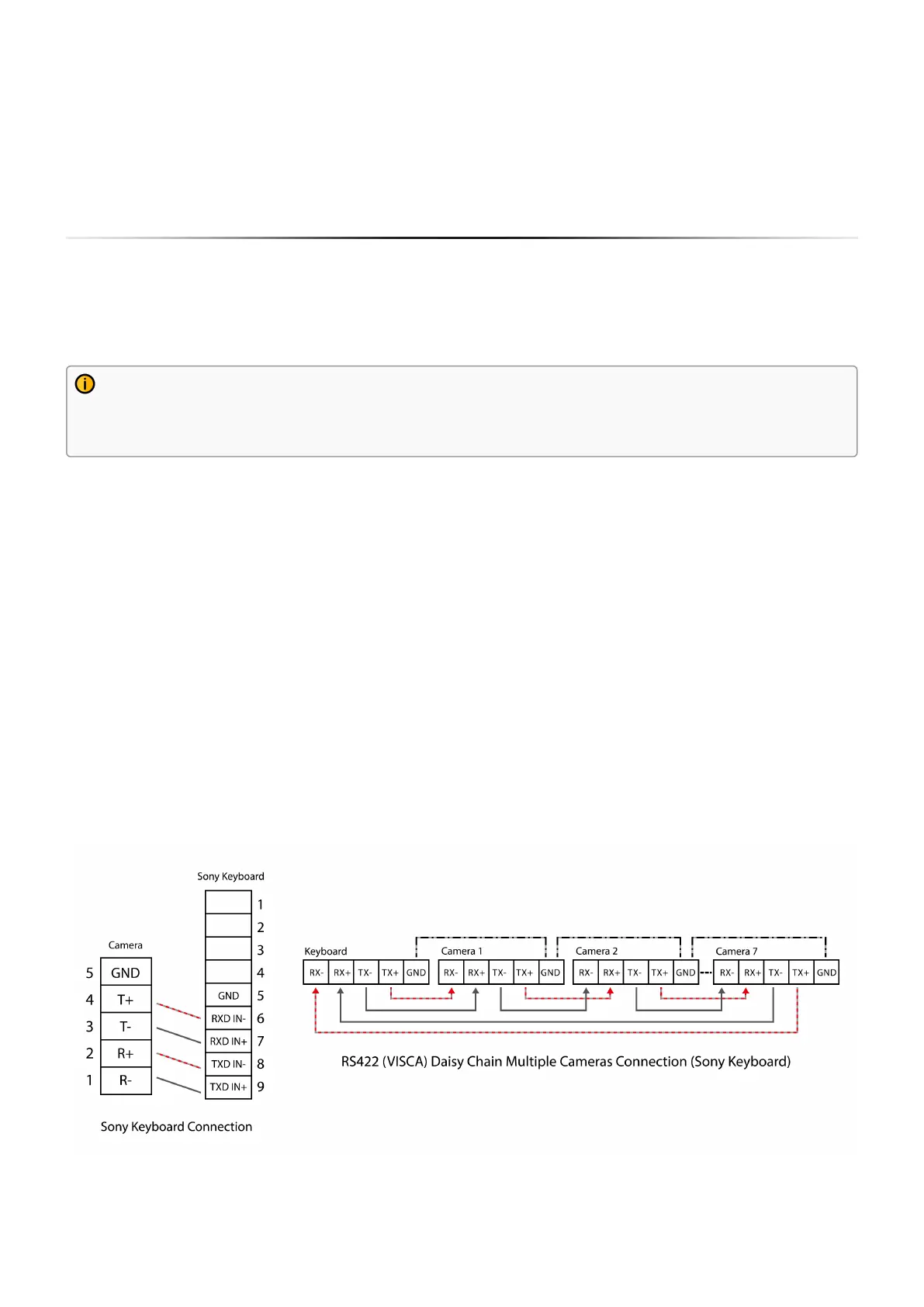

SONY Keyboard RS422 Connection
Guide for Establishing RS422 Connection and Daisy Chain Configuration for Multiple Cameras with a SONY
Controller.
VISCA (Non-Sony) Keyboard RS422 Connection
Guide for Establishing RS422 Connection and Daisy Chain Configuration for Multiple Cameras with a Non-
