that of the controller. The VISCA ID should be set to a number between 1 and 7.
A standard terminated CAT5 or CAT6 cable can be used to directly connect the camera to the controller.2.
Alternatively, the included RJ45 to RS422 Control Cable Adapter can be used to connect unterminated
CAT5/CAT6 cables between the camera and controller. The pin connection diagrams provided below
should be followed, taking into account the specific controller in use and the desired connection.
Use RS-422 (VISCA) / RS485 (PELCO P/D)
For camera operations, the RS-422/485 port can be utilized to connect controllers, such as a joystick
keyboard or a PC station. This allows for the effortless management of pan, tilt, and zoom functions, as well
as access to all preset functions using the controller’s buttons.
To operate a PC station, it is essential to have a software application that is compatible with this unit.

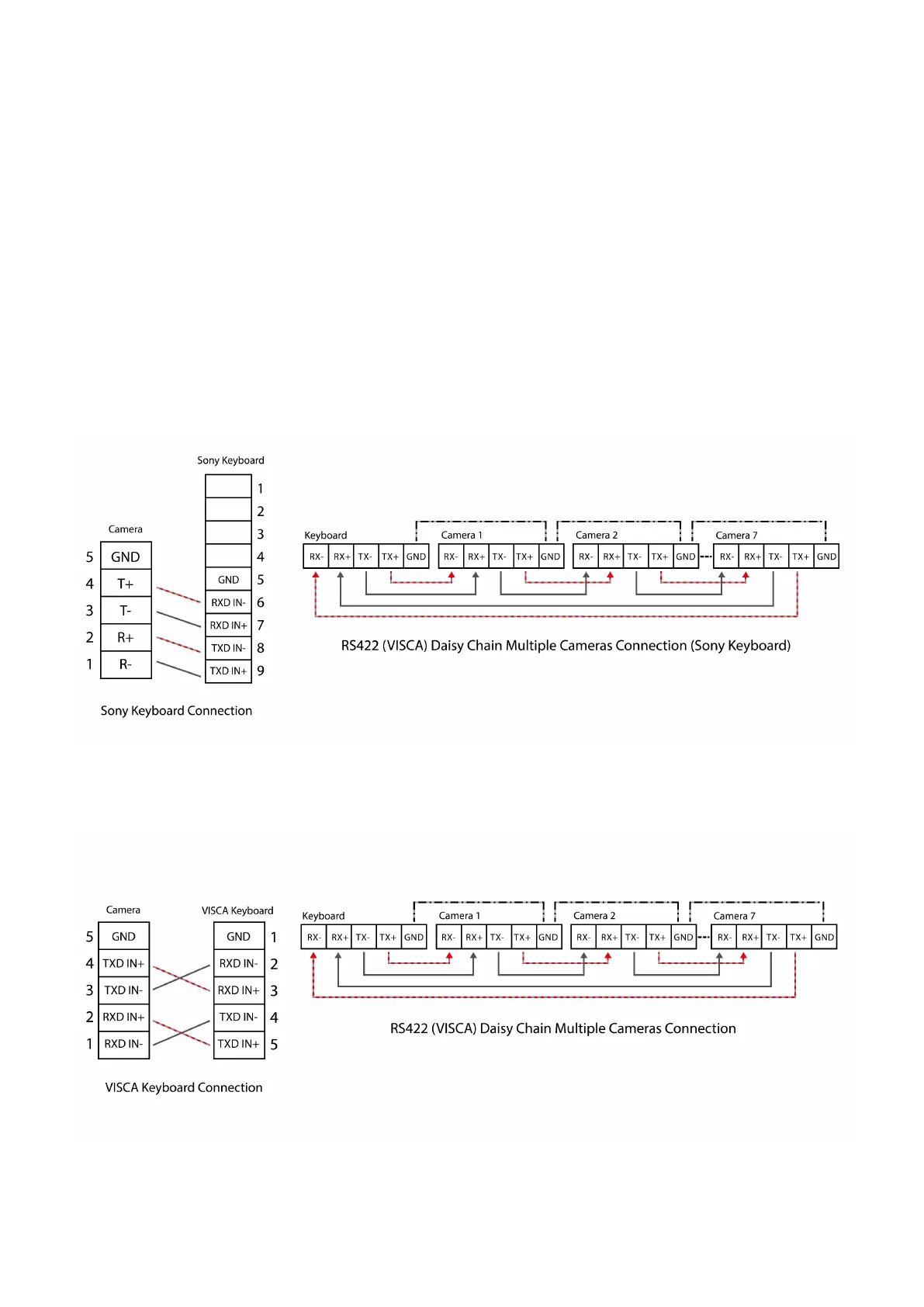

SONY Keyboard RS422 Connection
Guide for Establishing RS422 Connection and Daisy Chain Configuration for Multiple Cameras with a SONY
Controller.
VISCA (Non-Sony) Keyboard RS422 Connection
Guide for Establishing RS422 Connection and Daisy Chain Configuration for Multiple Cameras with a Non-
Sony Controller:
The included extension cables, along with the RJ45 to RS422 Phoenix connector adapter, should be utilized to
establish an RS422 connection for the control device.
