22

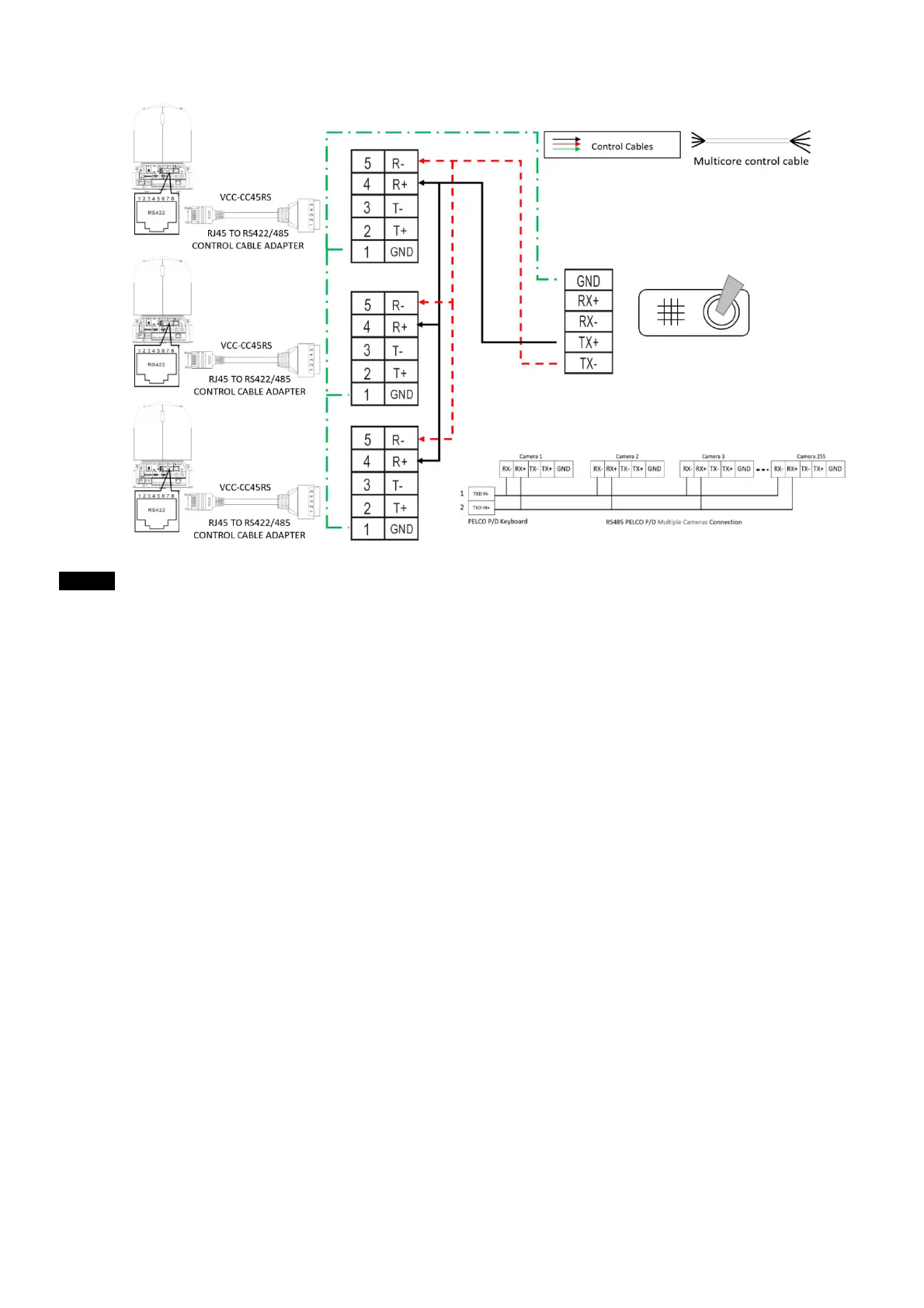

• How to make RS485 multiple cameras connection with RS485 standard serial port controller:
Note
For RS-232 VISCA control, this unit supports daisy chain connection for using multiple cameras.
For control details, refer to Operating Instructions of control keyboard/station software.
• You need to match the communication speed (Baud Rate) between the camera and the joystick
controller.
• You cannot use the RS-232 connections while you are using the RS422/485 connection.
Operating Multiple Cameras Using RS-232,422/485
• Using RS-232 (VISCA), you can connect to 7 cameras.
• Using RS-422 (VISCA), you can connect to 7 cameras.
• Using RS-485 (PELCO), you can connect to 255 cameras.
• Using RS-485 (PELCO), all camera addresses must be set up before the connection. You can set the
camera address by operating OSD menu, or by setting the Dip Switch on the bottom of the camera. In
this case, you can use multiple control keyboards.
