12

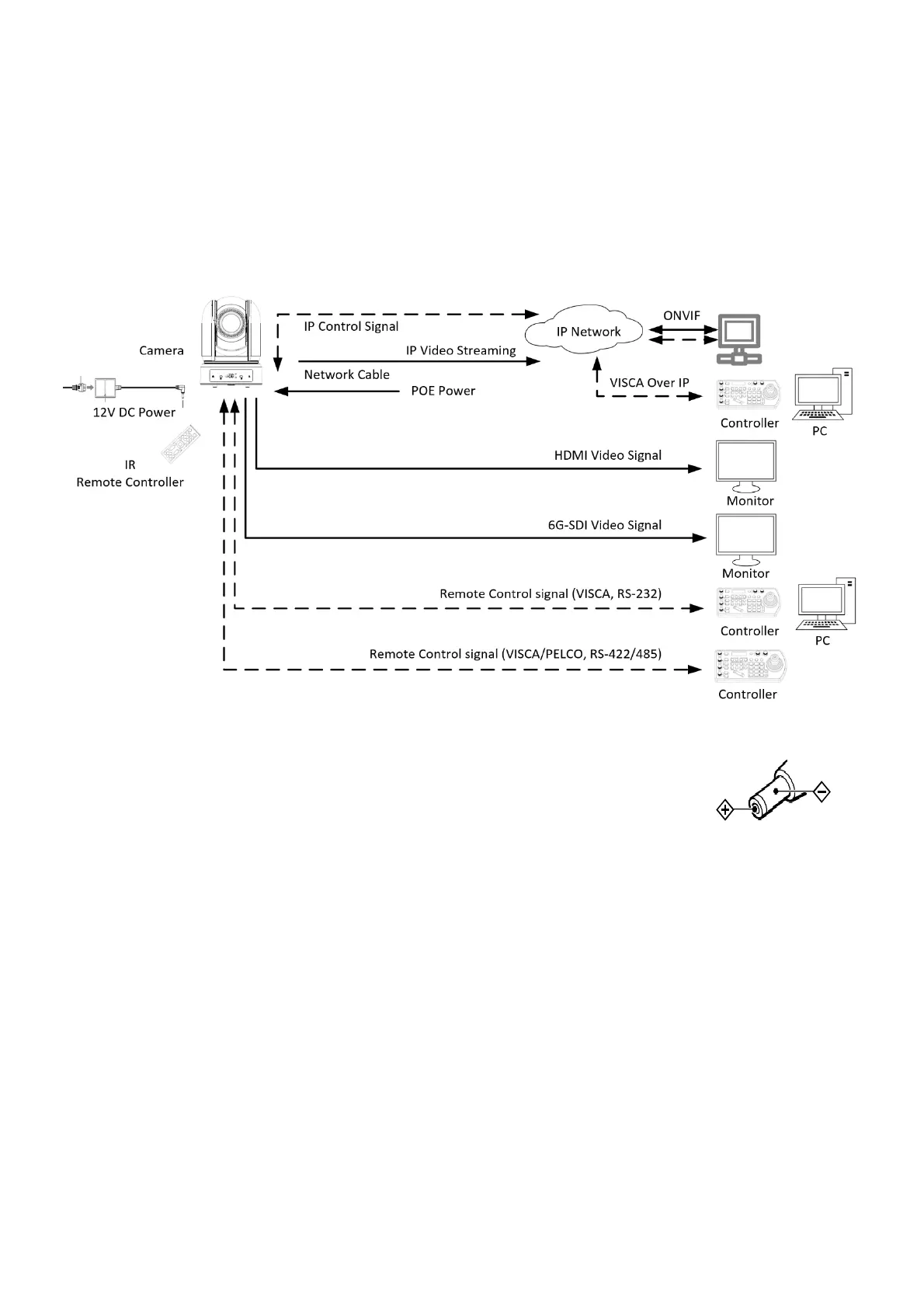

System Configuration
Connection
When the camera is connected to a computer and joystick keyboard with a VISCA cable (cross type, RS-232), you
can operate the camera with the computer and the joystick keyboard.
When the camera is connected to a joystick keyboard a control cable (cross type, RS-422/485), you can operate the
camera’s pan, tilt, zoom with the joystick keyboard.
In this connection configuration, HDMI cable, SDI video cable, data cable, Network cable is required. To obtain
these third-party components or accessories, consult the dealer where you bought your camera.
Power
• Use only the DC power adaptor (JEITA type4) supplied with the unit. Do not use
any other DC power adaptor.
• If using POE to power the camera, PoE (IEEE802.3bt) is supported
• Ensure that the POE power source has sufficient power budget to power the camera, or some features
may not function properly.
• You can use One-Cable POH (Power Over HDBaseT) power up the camera via CAT6 cable when
HDBaseT video card is used.
Cable Requirements
• Network Cable: 10/100 Mbps Ethernet CAT 5/5E/6 UTP cables are applicable to the ANSI/EIA/TIA-
568A/B and ISO/D. Eight wires in the network cable need to be inserted in parallel into the top of the
cable connector. The cable connector needs to be crimped in position. When the cable connector is in
position, ensure that the metal pieces of the cable connector are parallel to each other and the clamp
of the cable connector is intact.
• SDI video cable: 6G-SDI
