3. On the IR remote, the “Camera IR ID” that corresponds with the selected channel on the camera should be chosen. The remote is now ready to be used to

congure or control the camera.

NOTE

:When you’re using the IR Remote, make sure to either power off any nearby cameras or set them to a different IR ID. If there are cameras

within range that are set to the same IR ID, their settings might be altered.



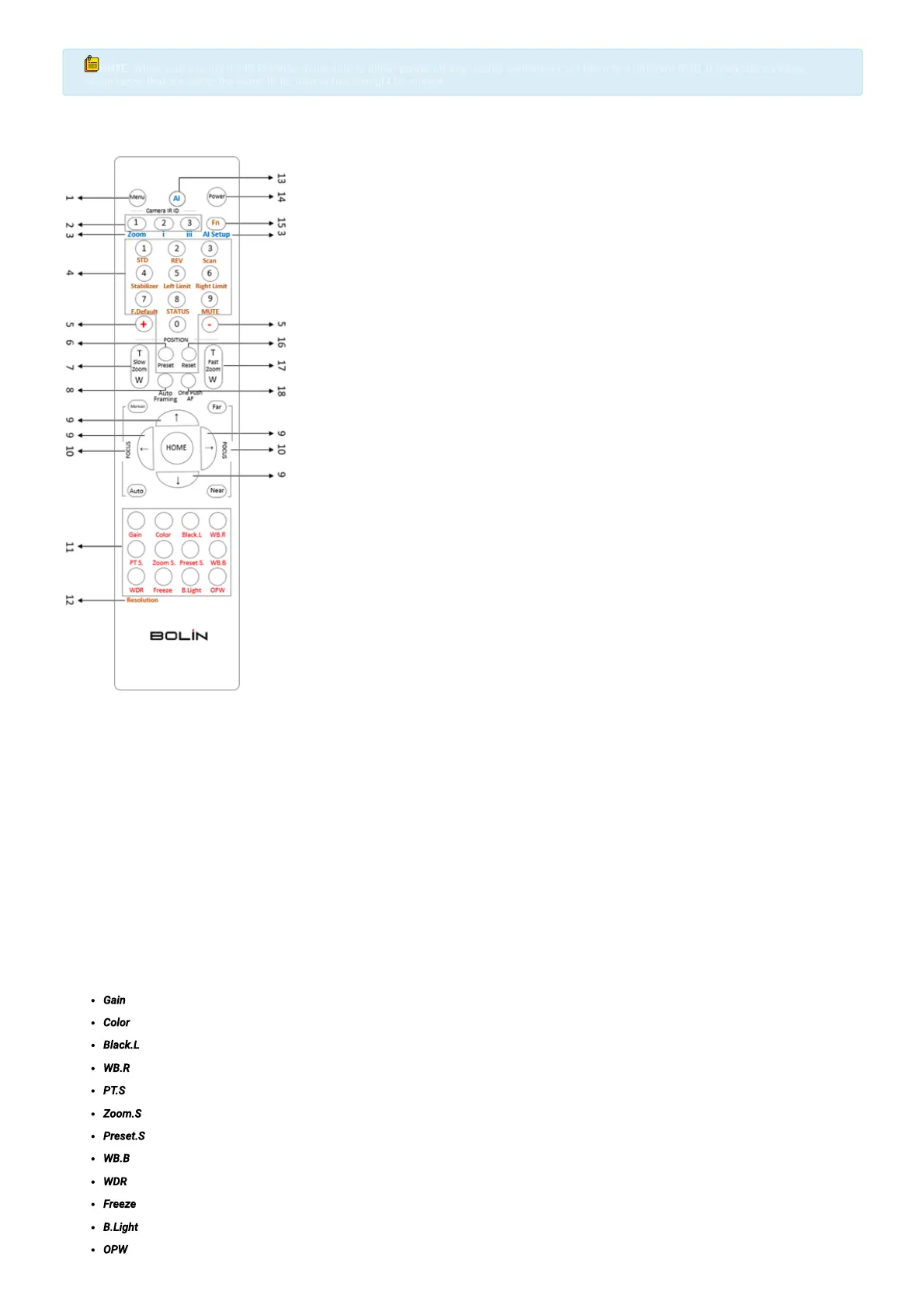

Functions of the IR Controller:



1. Menu- On-Screen Display (OSD) Toggle

2. IR ID Selector- Select which IR Channel (Camera) to be controlled

3. AI Function Buttons- Disabled

4. Buttons 1-9- Used to set & recall corresponding presets. (See #6 to set a preset and#16 to erase a preset)

5. + & - Buttons- Used in conjunction with image adjustment buttons (11) to increase or decrease parameters.

. Preset- To save a preset, hold down the "Preset" buttonand the preset number you would like to assign it to.

7. Slow Zoom- Zoom's the camera in or out in a slow speed.

. Auto Framing- Disabled

9. Direction Arrows- Pan and Tilt the camera in the corresponding direction. Navigate the OSD Menu when open.

10. Focus Adjustments- Use the "Auto" button to enable auto-focus. To make manual focus adjustments, press the "Manual" button rst, followed by the "Far" or

"Near" buttons to adjust.

11. Image Adjustments- Select the property you would like to adjust, followed by the + and - buttons (5) to make the appropriate adjustment, unless otherwise

noted below. The selected function and corresponding options will glow when selected.

Gain- Image gain settings

Color- Color saturation settings

Black.L- Image black level settings

WB.R- White Balance, Red settings

PT.S- Pan/Tilt speed settings

Zoom.S- Zoom speed settings

Preset.S- Preset speed settings

WB.B- White Balance, Blue settings

WDR- Wide Dynamic Range Settings

Freeze- Freeze the video on the current frame. (Doesn't use + and - buttons)

B.Light- Back light compensation

OPW- One Push White Balance (Hold the button down while pointing the camera at a gray card to set white balance.)

12. Resolution- Used to change the video format/resolution. Press and hold the Fn button (15) and Resolution button to select the desired format. The image

block will restart after the format is changed, and the screen will go black for a few seconds.
