Speaker
Model HS15EZ, HS15EZW

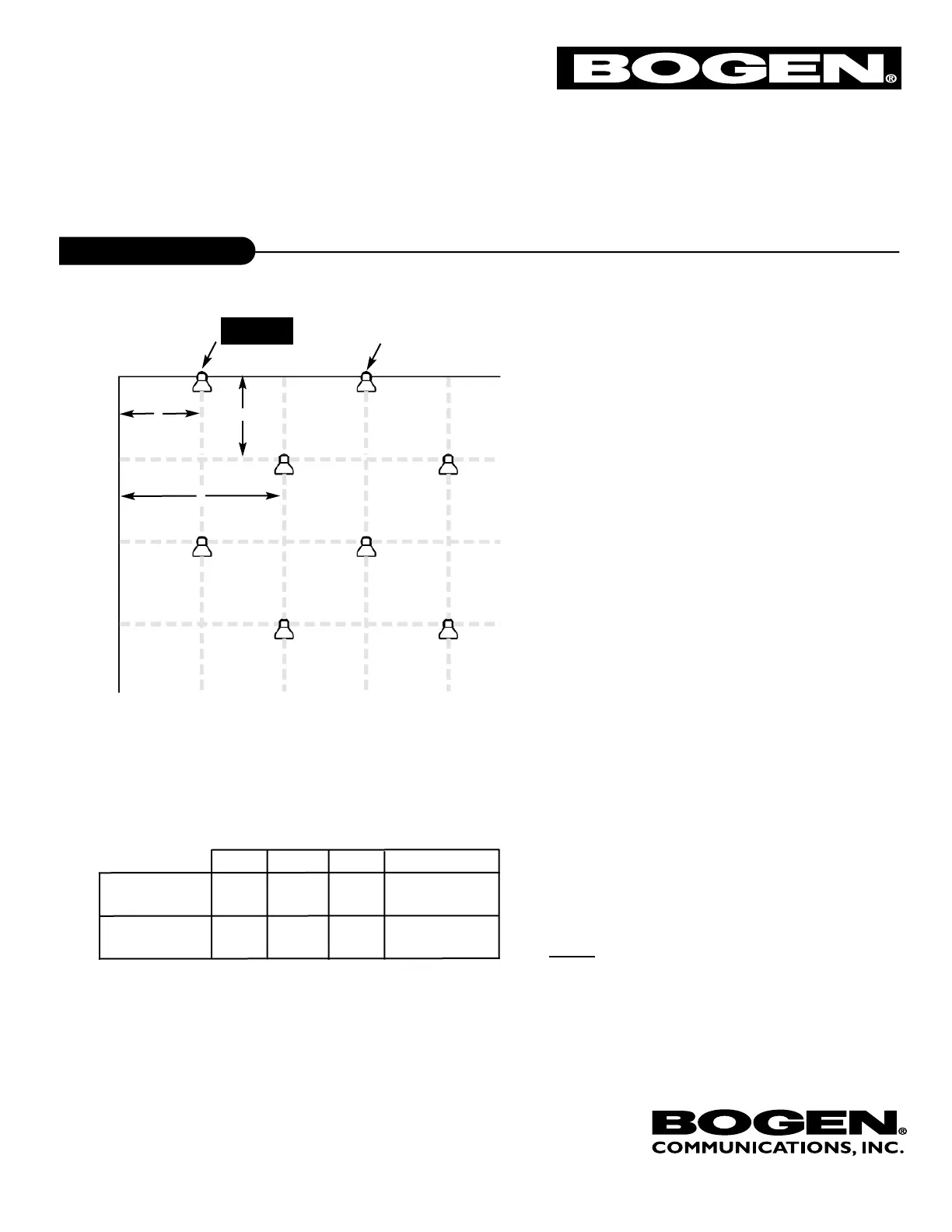

Speaker Layout
The layout of the speakers should be planned
prior to installation. Desired mounting height,
barring obstructions, is 15 to 20 feet, with the
speakers angled downward toward the listening
area and facing in the same direction.
Layout starts in one corner of the area. The first
speaker in Row 1 should be positioned a dis-
tance equivalent to (A) (see Figure 2) from the
corner based on the noise level of the area. The
next speaker in Row 1 should be a distance
equivalent to (B) (see Figure 2) from the first
speaker. Each additional speaker in the row
should use this same spacing.
Row 2 starts a distance equivalent to (C) (see
Figure 2) from Row 1 and, like Row 1, each
speaker should be a distance apart equivalent
to (B).
Row 3 starts a distance equivalent to (C) from
Row 2. Continue this pattern of alternating rows
until the area is appropriately covered.
For areas that include high shelving or corri-
dors, speakers should be installed so that they
project down the aisles between the shelves or
down through the corridors.
The spacing of the speakers can be adjusted so
that the speakers are evenly spaced in a row.
NOTE: Each environment is unique. This layout
plan is general in nature and may not be
applicable for every installatio
n.
Figure 1
START
HORN SPEAKER
A
B
C
Row 1
Row 2
Row 3
Row 4
50 ft. 100 ft. 60 ft. 1/2 Rotation
Figure 2
Specifications subject to change without notice.
© 1999 Bogen Communications Inc. All rights reserved.
Part No. 54-5072-01C 0809
High Noise
(75dB-85dB)
Very High Noise
(85dB-95dB
30 ft. 65 ft. 40 ft. Full Clockwise
A B C Volume Setting
PLACEMENT
www.bogen.com
