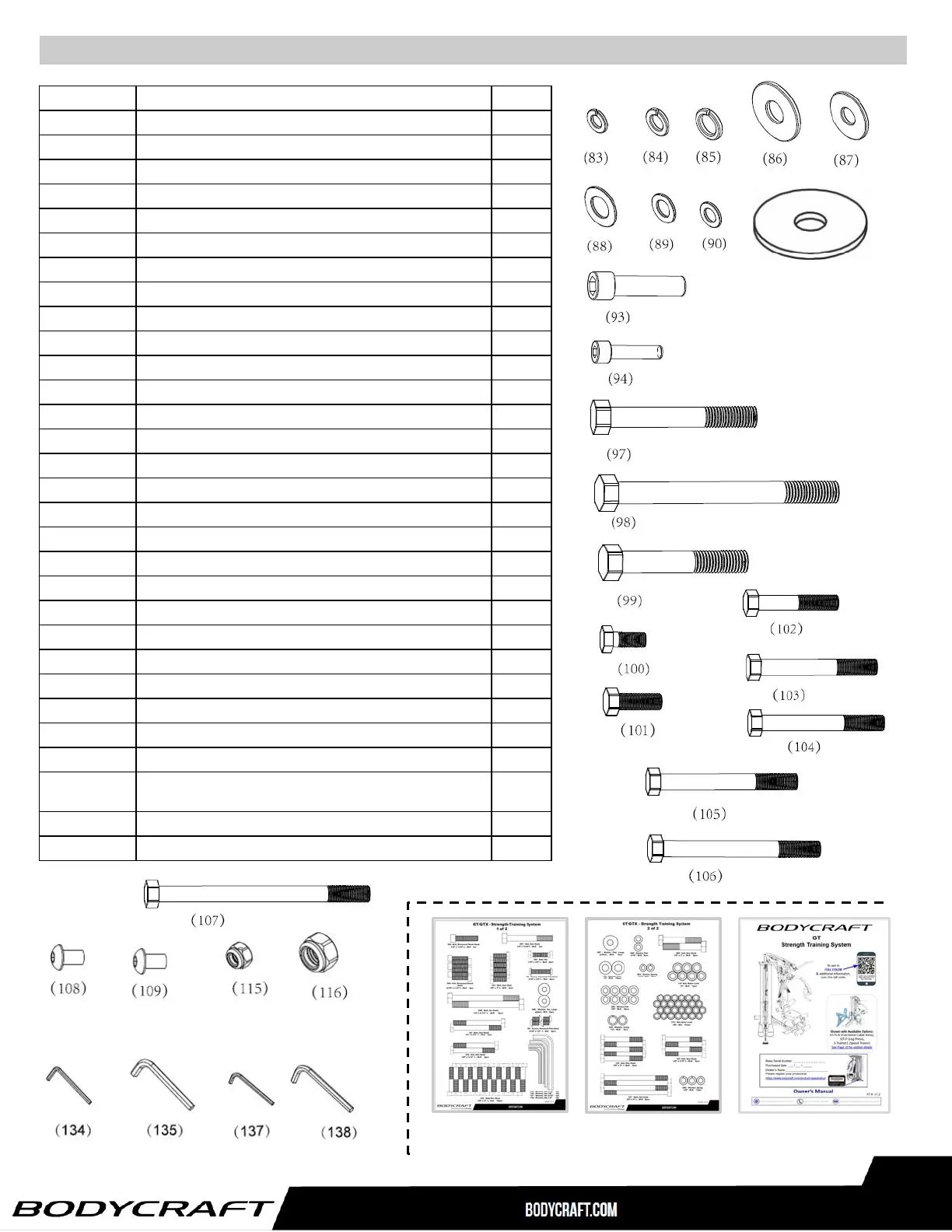

Assembly Parts - Hardware, GT 3 of 3
14
0° Flat
Hardware Kits & Owner’s Manual (Located inside F738 box #1)
NOTE: Parts are not to scale
Part # Assembly Hardware QTY
F738-245 Washer, Flat 3/8″ - BLACK 64
F738-246 Washer, Flat Large 1/2″ - BLACK 42
F738-247 Washer, Flat 5/16″ - BLACK 4
F738-254 Bolt, Hex Head 1/2″ x 2-3/4″ - BLACK 12
F738-255 Bolt, Hex Head 1/2″ x 3-1/4″ - BLACK 2
F738-256 Bolt, Hex Head 1/2″ x 4″ - BLACK 2
F738-257 Bolt, Hex Head 1/2″ x 4-1/4″ - BLACK 9
F738-258 Bolt, Hex Head 1/2″ x 5-3/4″ - BLACK 2
F738-260 Bolt, Hex 3/8″ x 2″ - BLACK 32
F738-265 Bolt, Recessed Round Head 7/16″ x 1-3/4″ - BLK 2
F738-266 Bolt, Umbrella Head 5/16" x 5/8" - BLACK 4
F738-267 Nut, Nylon Lock 3/8″ - BLACK 32
F738-268 Nut, Nylon Lock 1/2″ - BLACK 27
F738-270 Nut, Nylon Lock, Thin 1/2″ - BLACK 2
F738-271 Washer 1/2″ - BLACK 10
F738-272 Washer, Spring 5/16″ - BLACK 4
F738-273 Washer, Spring 1/2″ - BLACK 2
NOTE: Parts are not to scale
Part # Assembly Hardware QTY
GT-X-083 Washer, Spring, 5/16" - BLK 8
GT-X-084 Washer, Spring, 3/8" - BLK 12
GT-X-085 Washer, Spring, 1/2" - BLK 4
GT-X-086 Washer, Flat, Large, φ8mm - BLK 6
GT-X-087 Washer, Flat, Large, φ10mm - BLK 4
GT-X-088 Washer, Flat, 1/2" - BLK 12
GT-X-089 Washer, Flat, 3/8" - BLK 62
GT-X-090 Washer, Flat, 5/16" - BLK 8
GT-X-093 Bolt, Recessed Round Head, 7/16" x 1-3/4" L - BLK 1
GT-X-094 Bolt, Recessed Round Head, 5/16" x 1-1/4" L - BLK 6
GT-X-097 Bolt, Hex Head, 1/2" x 3-5/8" L - BLK 1
GT-X-098 Bolt, Hex Head, 1/2" x 5-1/4" L - BLK 2
GT-X-099 Bolt, Hex Head, 1/2" x 3" L - BLK 2
GT-X-100 Bolt, Hex Head, 5/16" x 3/4" L - BLK 2
GT-X-101 Bolt, Hex Head, 3/8" x 1" L - BLK 6
GT-X-102 Bolt, Hex Head, 3/8" x 2" L - BLK 16
GT-X-103 Bolt, Hex Head, 3/8" x 2-7/8" L - BLK 4
GT-X-104 Bolt, Hex Head, 3/8" x 3" L - BLK 5
GT-X-105 Bolt, Hex Head, 3/8" x 3-1/4" L - BLK 2
GT-X-106 Bolt, Hex Head, 3/8" x 3-3/4" L - BLK 2
GT-X-107 Bolt, Hex Head, 3/8" x 5" L - BLK 4
GT-X-108 Screw, Recessed Flat Head, 5/16" x 3/4" L - BLK 2
GT-X-109 Screw, Recessed Flat Head, 5/16" x 1/2" L - BLK 4
GT-X-115 Nut, Nylon Lock, 3/8" - BLK 27
GT-X-116 Nut, Nylon Lock, 1/2" - BLK 7
GT-X-134 Wrench，Hex 3/16" 1
GT-X-135 Wrench，Hex 3/8" 1
GT-X-136
Washer, Spacer, Large, for bottom of Guide Rods, 50mm OD x
11mm ID x 5mm Thick - BLK 2
GT-X-137 Wrench, Hex, 5/32" 1
GT-X-138 Wrench, Hex, 1/4" 1
Hardware Kits & Owner’s Manual (Located inside box #1)
(136)
(136)
