Detailed Parts List - F730 2 of 2

31

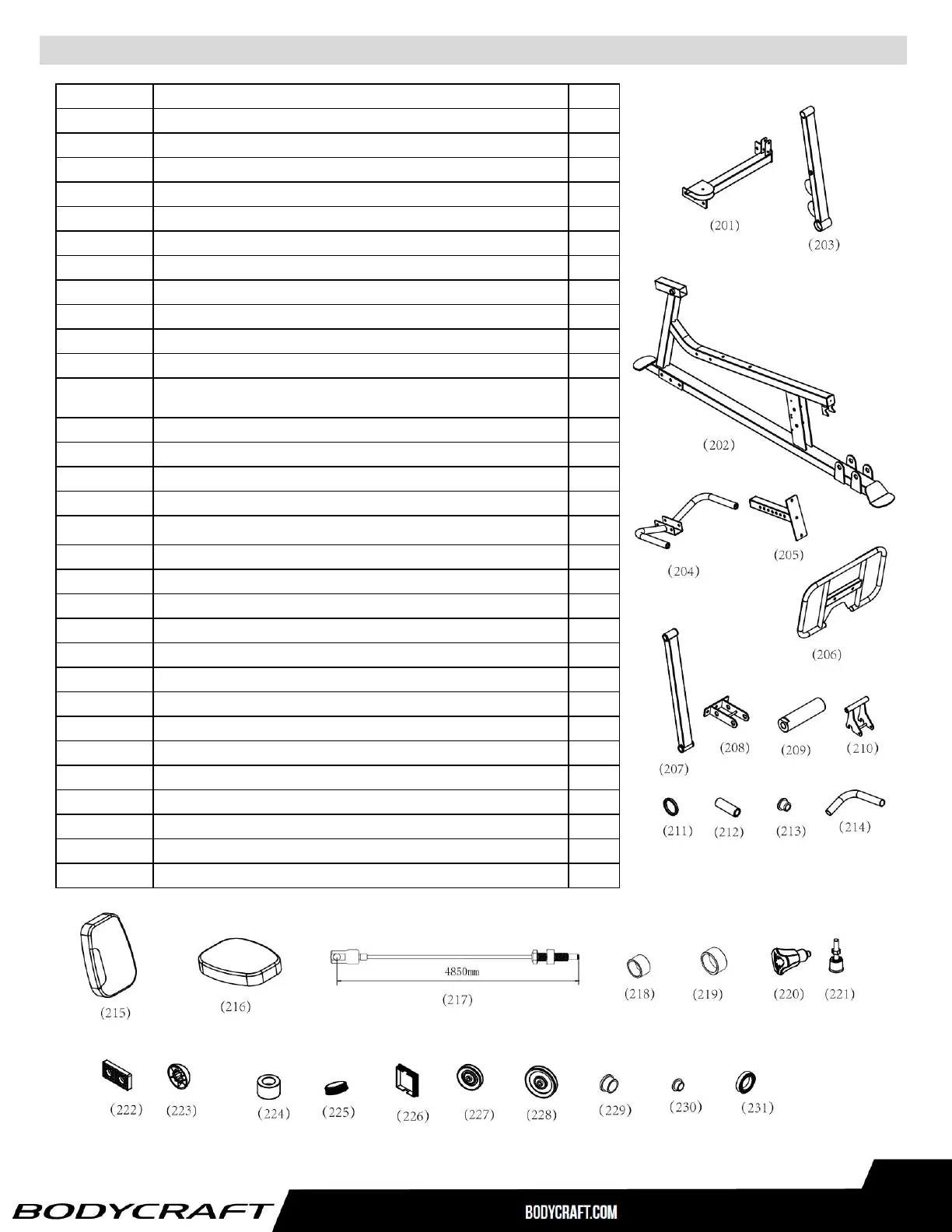

Detailed Parts List, GT-LP (Leg Press) 1 of 2

NOTE: Parts are not to scale

Part # Detailed Parts list QTY

GT-X-LP-201 Frame, Connecting to GT-X base unit 1

GT-X-LP-202 Frame, Main Base 1

GT-X-LP-203 Leg Press Support, Rear 1

GT-X-LP-204 Frame, Seat Handle 1

GT-X-LP-205 Back Pad Adjuster 1

GT-X-LP-206 Foot Plate, with Black Diamond Plate 1

GT-X-LP-207 Leg Press Support, Front 1

GT-X-LP-208 Leg Press Upper Connector 1

GT-X-LP-209 Axle, w/ one side flat notch , 25mm OD x 1/2" ID threaded x 90mm L 4

GT-X-LP-210 Hook, for Turbo Feature 1

GT-X-LP-211 Spacer, for Inner Side of Bottom Axle in the Rear Leg Support Frame 2

GT-X-LP-212

Spacer, End of Cable #217 for Hook, 10.5mm OD x 16mm ID x 46mm L -

Chrome 2

GT-X-LP-213 Bushing, Plastic, for Pulley to Frame, 3/8" ID 4

GT-X-LP-214 Handrail Rubber Grip 2

GT-X-LP-215 Pad, Back for Leg Press 1

GT-X-LP-216 Pad, Seat for Leg Press 1

GT-X-LP-217 Cable, Leg Press, 4,870mm (191.73") L 1

GT-X-LP-218 End Cap, Large, Aluminum, Blue, 1 2

GT-X-LP-219 End Cap, Small, Aluminum, Blue, 2 2

GT-X-LP-220 Pull-Pin Locking Knob, Aluminum - BLUE 1

GT-X-LP-221 Adjustable Stopper, between Top Connector Frame & Single Block Pulley 1

GT-X-LP-222 Cushion (rectangle), for Hook 1

GT-X-LP-223 Cap, Plastic, Domed for 1/2" Bolt & Nut Ends 8

GT-X-LP-224 Stopper, for Leg Press to Main Frame 1

GT-X-LP-225 Plug, Round, φ25mm 2

GT-X-LP-226 Plug, Square, 45mm x 45mm 1

GT-X-LP-227 Pulley, 90mm (3-1/2") x δ26mm ID 5

GT-X-LP-228 Pulley, 114mm (4-1/2") x δ26mm ID 1

GT-X-LP-229 Bushing, Flange, Iglide Sleeve Bearing, MFM-2532-20 6

GT-X-LP-230 Bushing, Flange, Iglide Sleeve Bearing, MFM-1014-10 2

GT-X-LP-231 Bearing, w/ Deep Groove Ball, 6205-2Z（C0） 2
