6
3
S T E P
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step. Do Not wrench tighten until end of step 6.
S T E P
3
A. Install Connector Frame (E) to Leg Frame (D) and Upright Frame (E) by using:
Two D12 (M8 Shaft)
Four A15 (M8z20 allen head bolt)
Four C5 (M8 washer)
B. Insert End Caps (D4) to Foot Plate (G).
C. Connect Foot Plate (G) to Connector Frame (C) using:
Two A2 (M12x80 hex head bolt)
Four C2 (M12 washer)
Two B2 (M12 nylon lock nut)
Be careful to assemble all components
in the sequence they are presented.

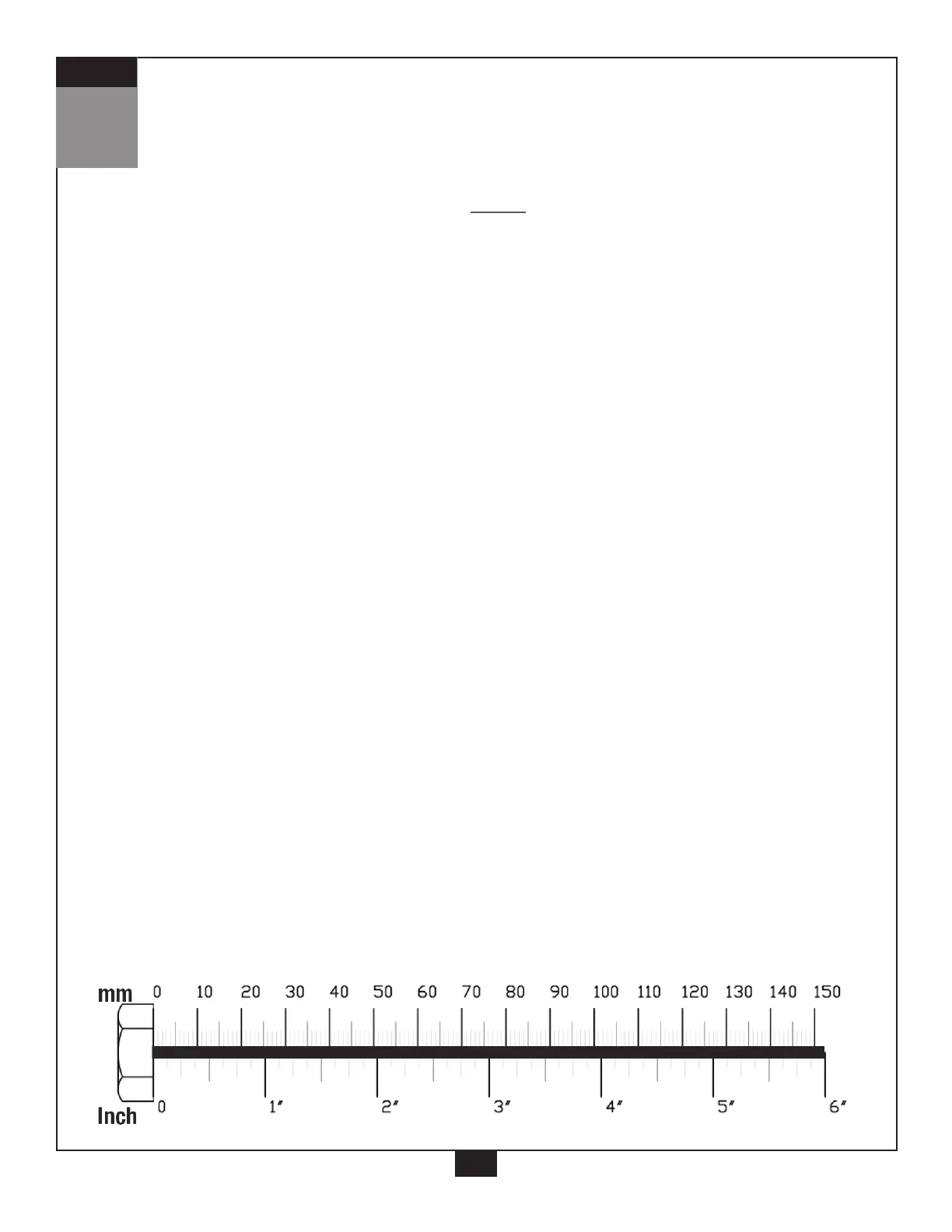

10
mm
Inch
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1" 2" 3" 4" 5" 6"
3
