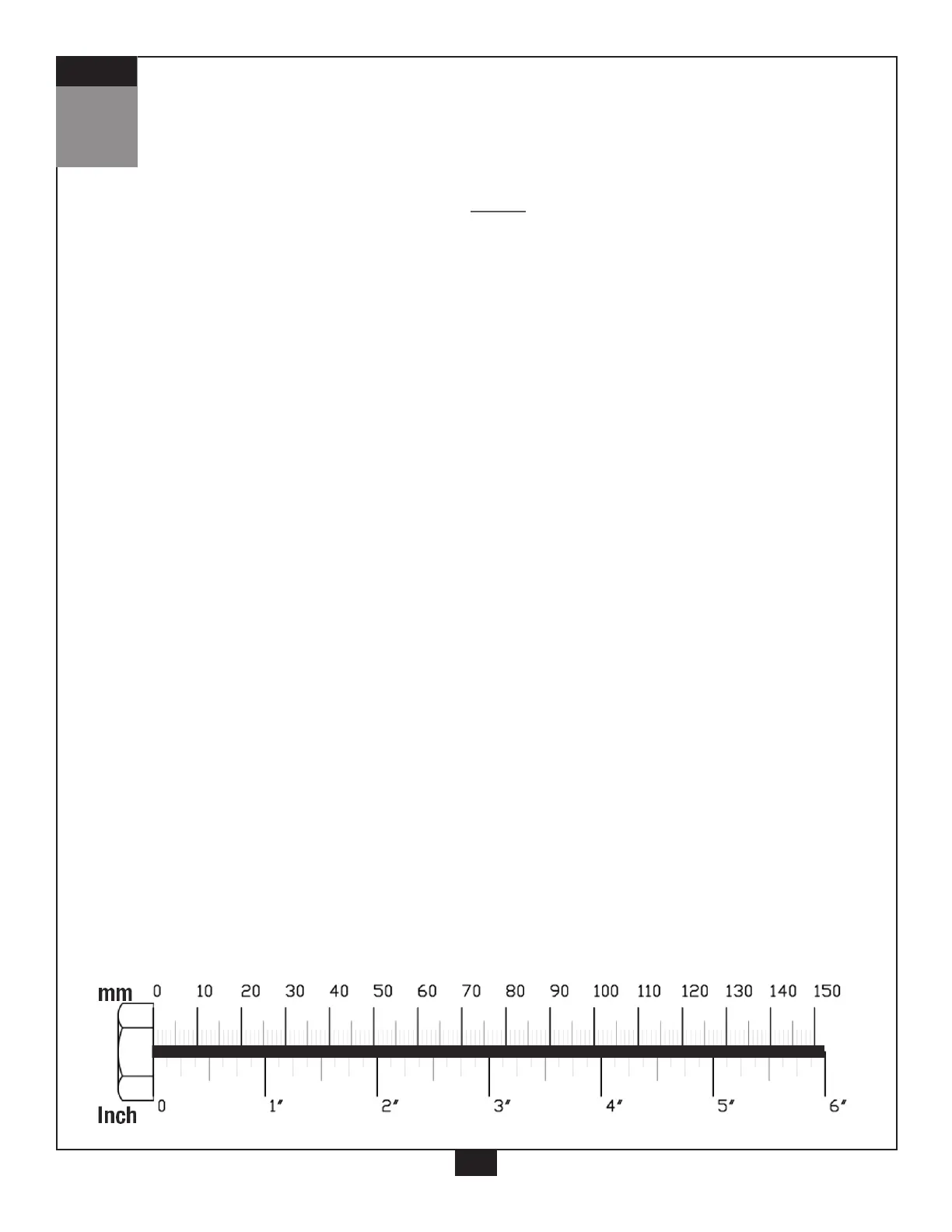

2
S T E P
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step. Do Not wrench tighten until end of step 6.
S T E P
2
Be careful to assemble all components
in the sequence they are presented.
A. Connect Upright Frame (E) to Mainframe (A) using:
Four A13 (M12x40 hex head bolt)
Four C2 (M12 washer)
Four B2 (M12 nylon lock nut)
B. Slide Shaft (D11) through Leg Frame (D) and Mainframe (A) and tighten using:
Two A14 (M10x20 hex head bolt)
Two C1 (M10 washer)
8
mm
Inch
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1" 2" 3" 4" 5" 6"
