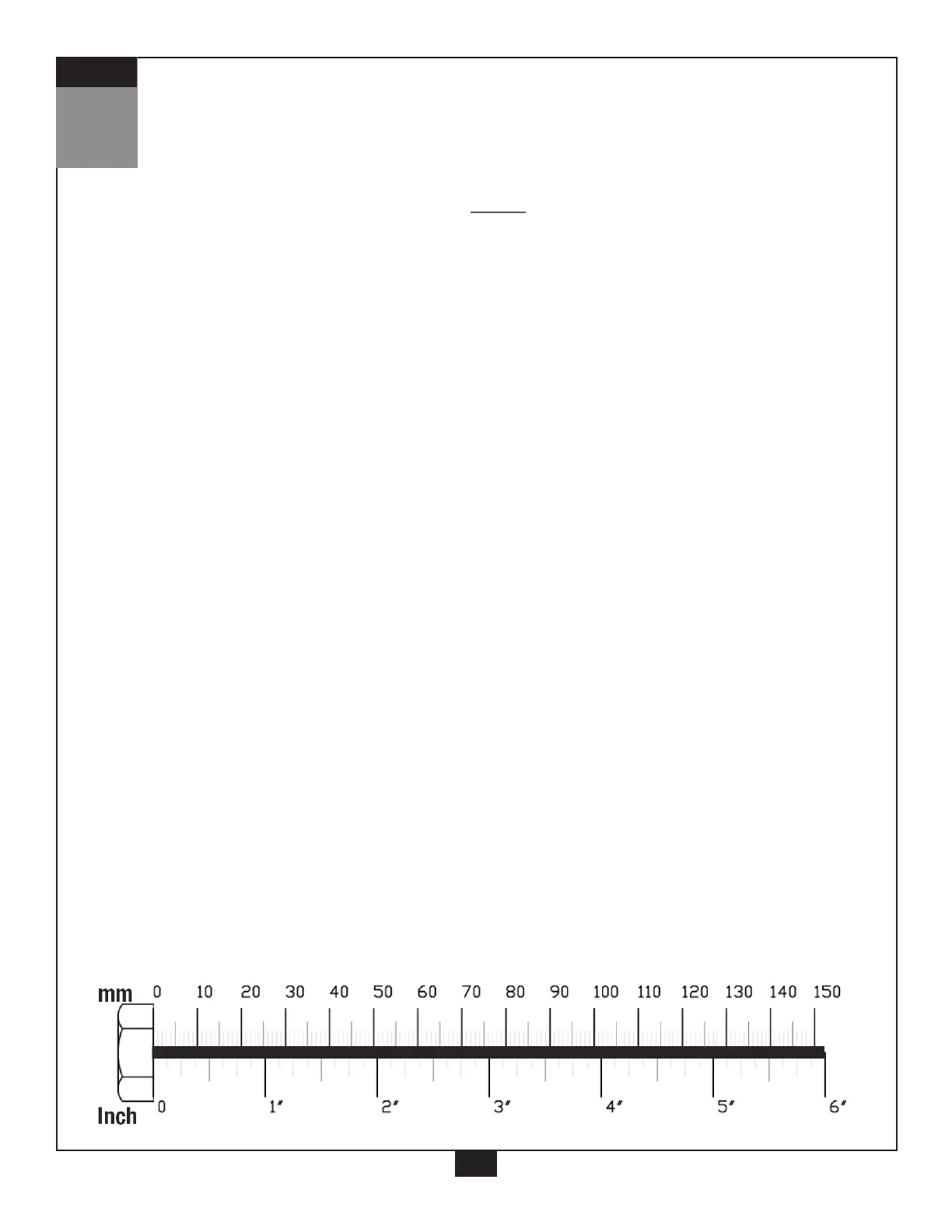

S T E P
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step. Do Not wrench tighten until end of step 6.
Be careful to assemble all components
in the sequence they are presented.
S T E P
6
A. Attach the Stamped Eye End of Cable (D6) to the gym using:
One A12 (M10x20 allen head bolt)
One B1 (M10 nylon lock nut)
B. Route Cable (D6) across (D1-F) and (D1-E). Bring the cable under (D1-A), around (D1-D), (D1-A) and (D1-C).
C. Connect Snap Link (D9) to the Chain Link End of steel Cable (D6).
D. Connect Cable (D6) to Mainframe (A) as shown in Diagram B using:
One A10 (M10x60 hex head bolt)
Two C1 (M10 washer)
One B1 (M10 nylon lock nut)
16
mm
Inch
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150
0 1" 2" 3" 4" 5" 6"
