PWR4IEC USER MANUAL
Contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk
11

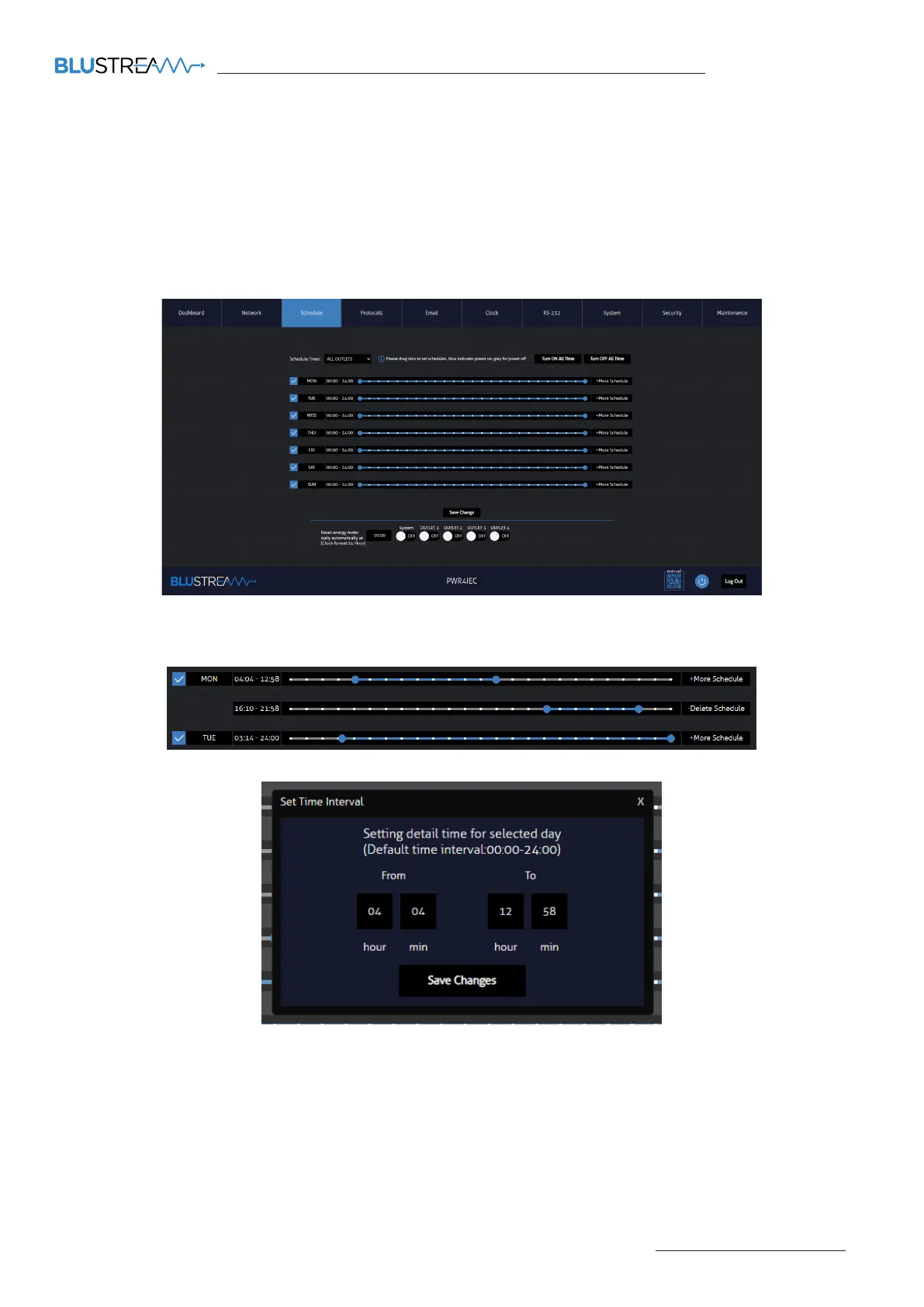

Web-GUI Control - Scheduling
The PWR4IEC contains the ability to configure schedules to suit the needs of an installation. This can be used for power saving,
when the equipment is not in use, or as a way to schedule a reboot for devices that may lock up aer long periods of inactivity
(e.g: satellite receivers).
The scheduling operates over a 24 hour period across a 7 day window. Individual time periods can be set where the product/s
attached to the individual outlets (or all outlets) can be powered on and o without the need for a 3rd party control system to
issue power commands.
To adjust the logic for any given day, move the blue dots along the timeline to create a highlighted selection: this is when the
device will power on. In order to add additional logic (i.e multiple on and o periods), press the + More Schedule button. You can
now add additional logic by repeating the steps above.
Alternatively, clicking on the time, next to the day label, will allow for manual time input.
Additionally, the energy meter on the dashboard can be automatically reset at a specified time for a unique selection of outputs.
Input a desired time at the bottom of the page and select the output meters to be reset daily at that time.
Once the schedule has been set, use the ‘Save Changes’ button at the bottom of the page.
* Please note: The ALL OUTLETS schedule will override the individual schedules in the event of a conflict.
