CUSTOM PRO MATRIX USER MANUAL

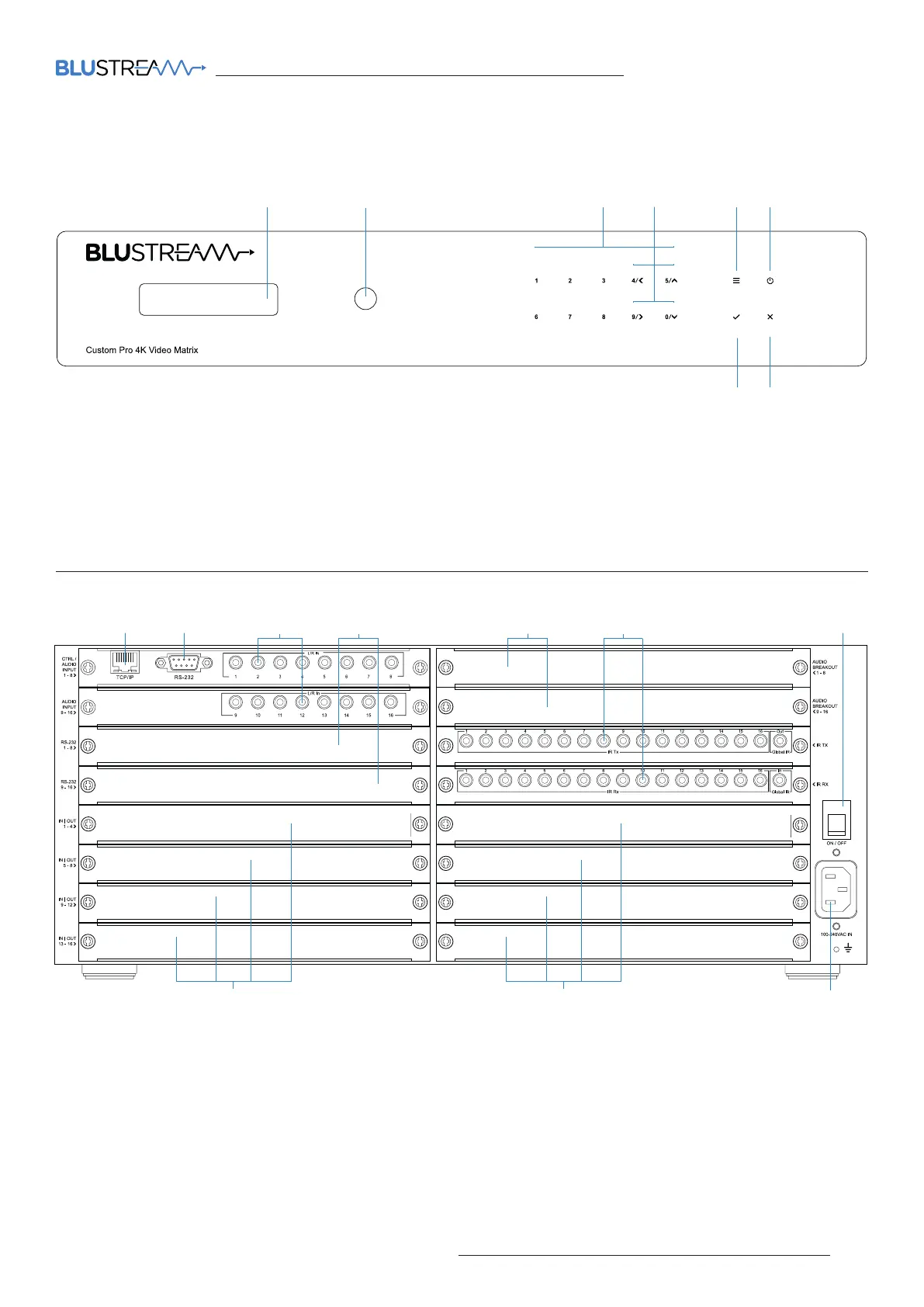

Front Panel - touch panel shown only for illustrative purposes

Panel Descriptions - 16x16 Chassis

Rear Panel

1 LCD display - shows the status of input / output

selection, EDID etc.

2 IR receiver window

3 Input / output selection buttons - select output

number first (up to 2 digits), followed by enter, then

input number

4 Up / Down / Le / Right selection buttons

5 Menu button -press to enter menu structure - see

page 15 for more details

6 Power button - press and hold for 2 seconds to power

o

7 Exit / Cancel button- return to last menu page / exit to

main display page

8 Enter / Confirm button

1 TCP/IP port - for control of the Matrix from PC or third

party control processor

2 RS-232 / serial connector - for control of the matrix (as

above)

3 Analogue L/R line level inputs (3.5mm stereo jack)

Audio can be embedded onto video outputs

4 RS-232 control card slots - insert optional RS-232

control cards for serial control at HDBaseT™ receivers

5 Audio output card slots - insert optional audio cards

for zone / output audio breakout

6 IR control card slots - IR control card for 2-way &

Global IR control (supplied within 16x16 chassis)

7 Mains power switch

8 Video input card slots 1-4 (inputs 1-16) - insert video

input cards to connect to source devices (input card

slot 1 mandatory; 2-4 optional)

9 Video output card slots 1-4 (outputs 1-16) - insert

video output cards (output card slot 1 mandatory; 2-4

optional)

q Power port – use supplied IEC cable to power matrix

1 2 3 4 5 6

8 9 q

1 2 3 4 5 6
