HEX70HDUK-TT QUICK REFERENCE GUIDE
Contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk02
Mounting the HEX70HDUK-TT
1 Use the supplied template to cut out the hole for the HEX70HDUK-TT to sit inside.

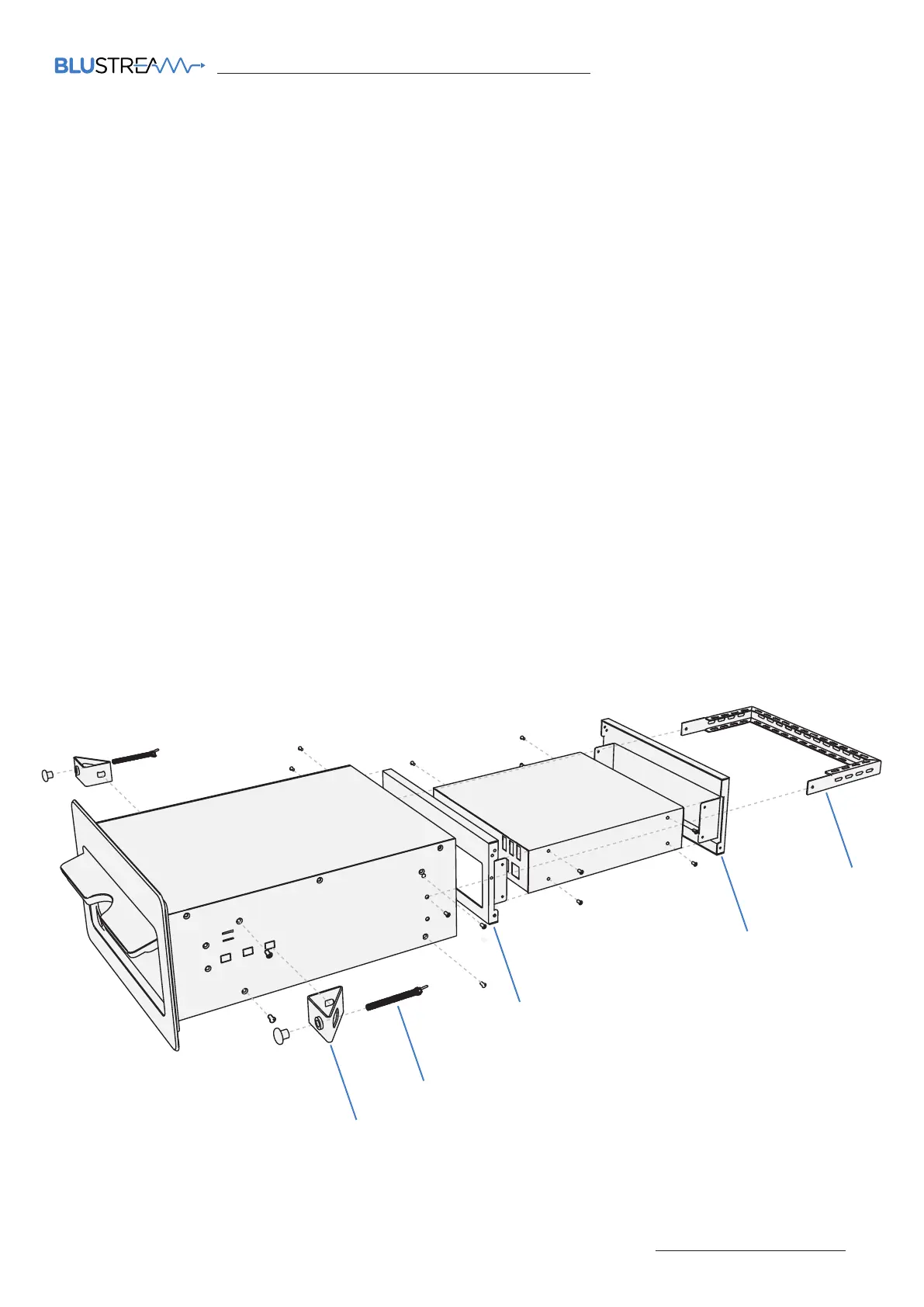

Please see below exploded diagram of the HEX70HDUK-TT. The HEX70HDUK HDBaseT™ Transmitter is
secured into the table top mount as follows:
2
Mount the adaptor plates (labelled ‘A’) to the HEX70HDUK Transmitter unit. The adaptor plates fit flush to
the top and bottom of the transmitter. Use the supplied screws to secure the plates to the Transmitter.
3
Insert the Transmitter into the HEX70HDUK-TT enclosure. Please note the arrow direction to ensure
you have the transmitter inserted the correct way round in the enclosure. The HDMI, DP and USB-C
connections should be closest to the hinged canopy. Secure with the supplied screws (x8).
4
Insert the assembled kit into the cut out.
5
Attach the triangular mounting ears (labelled ‘B’) to the side of the enclosure. There are 3 positions that
the mounting ears can be attached to on the side of the enclosure. This is to allow for the kit to be mounted
into dierent depth table tops.
6
Use the wing nut bolts (labelled ‘C’) to screw into the mounting ears and tighten until the enclosure is
secured into position.
7
The lacer bar (labelled ‘D’) can be connected as required to the enclosure for the routing of cabling from
the rear of the unit, or to secure the HEX70HDUK power supply transformer.
A
A
C
B
D
REVA1_QRG_HEX70HDUK-TT_211209
