IP250UHD USER MANUAL
www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk08

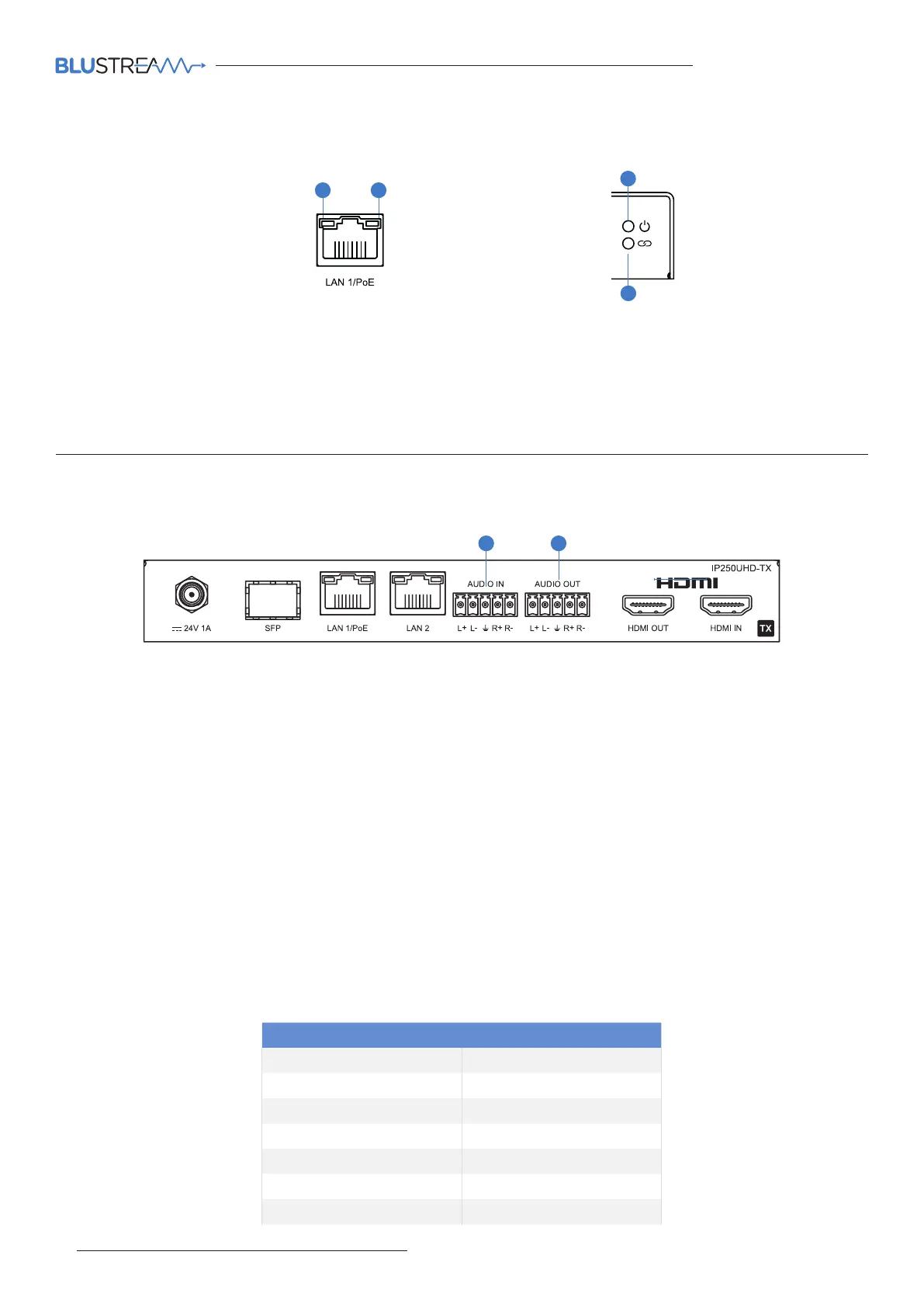

Understanding Product Status Lights
Transmitter Audio Embedding / De-embedding
Multicast products have several LED lights to indicate connectivity status, or to help diagnose connection problems.
1
3
2
4
Multicast Status Lights
1 LAN PoE status light - solid Orange indicates PoE from the network switch powering the Multicast product
2 LAN status light - solid Green indicates active network connection
3 Power status light - O = No power, Flashing = Product booting, On = Power on
4 Link status light - O = No connection to network, Flashing = not connected to any device (another Multicast
product or network switch), On = Connected to Multicast device or network switch
Audio Connections - Transmitter
1 Audio In - Analogue L/R Line Level audio input (5-pin Phoenix connector)
The analogue line level input can be used to replace the original HDMI audio of the source connected to the
Multicast Transmitter with analogue L/R 2ch line level audio. The embedded analogue audio is then distributed
with the adjacent HDMI video signal throughout the Multicast system. It is also possible to embed the analogue
audio input onto Dante audio to be transmitted independently throughout the system.
Switching between original HDMI audio and embedded line level analogue 2ch audio is achieved using Blustream
serial/Telnet/IP commands, or by selecting the Audio Source within the ACM web-GUI or front panel of the unit.
Please note: It is only possible to select EITHER HDMI audio or local analogue line input. It is not possible to distribute
both audio sources simultaneously.
2 Audio Out - Analogue L/R Line Level audio output (5-pin Phoenix connector)
The analogue line level output can be used to breakout the embedded 2ch analogue source audio from the HDMI
input signal or from any Dante audio device on the network.
Please note: The source input must be PCM 2ch audio for the analogue audio output to work. The Blustream
Multicast products do not down-mix Dolby Digital, DTS or 5.1ch audio signals.
It is possible to route the audio of the IP250UHD-RX as follows:
1 2
IP250UHD-TX INPUT IP250UHD-TX OUTPUT
Analogue Input HDMI Audio Output (to RX)
Analogue Input Dante Output
HDMI Audio Input (TX) Analogue Output
HDMI Audio Input (TX) HDMI Audio Output (to RX)
HDMI Audio Input (TX) Dante Output
Dante Input Analogue Output
Dante Input HDMI Audio Output (to RX)
