DA22XLR-WP-EU-V2 QUICK REFERENCE GUIDE
04
www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk
Specifications
Audio Input Connectors: 2 x Analogue balanced/unbalanced 3-Pin XLR connector
Audio Output Connectors: 2 x Analogue balanced/unbalanced 3-Pin XLR connector
Network Connectors: 1 x PoE Dante® Ethernet Connection (RJ45)
Configuration Switches: 2 x Push button (48V Phantom power)
Firmware Upgrade: 1 x Micro-USB port
Module Dimensions (L x W x H): 105mm x 95mm x 45mm (without faceplate)
Faceplate Dimensions (L x W x H): 115mm x 115mm x 5mm
Cut Out Dimensions (L x W x H): 89mm x 71mm x 41mm
Mounting Hole Spacing: US 83.5mm CTC
Backbox Requirements: US double gang junction box
Shipping Weight: 0.6kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
Power Supply: Class 0 IEEE 802.3af POE PD or 12V/1A DC, 2-Pin Phoenix connector
Package Contents
• 1 x DA22XLR-WP-EU-V2
• 1 x Magnetic Faceplate
• 1 x Quick Reference Guide
Acknowledgements
Dante® is a registered trademark of
Audinate Pty Ltd.
FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION - changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
CANADA, INDUSTRY CANADA (IC) NOTICES
This Class B digital apparatus complies with Canadian ICES-003.Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
CORRECT DISPOSAL OF THIS PRODUCT
This marking indicates that this product should not be disposed with other
household wastes. To prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to promote the sustainable
reuse of material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased. They
can take this product for environmentally safe recycling.
Certifications

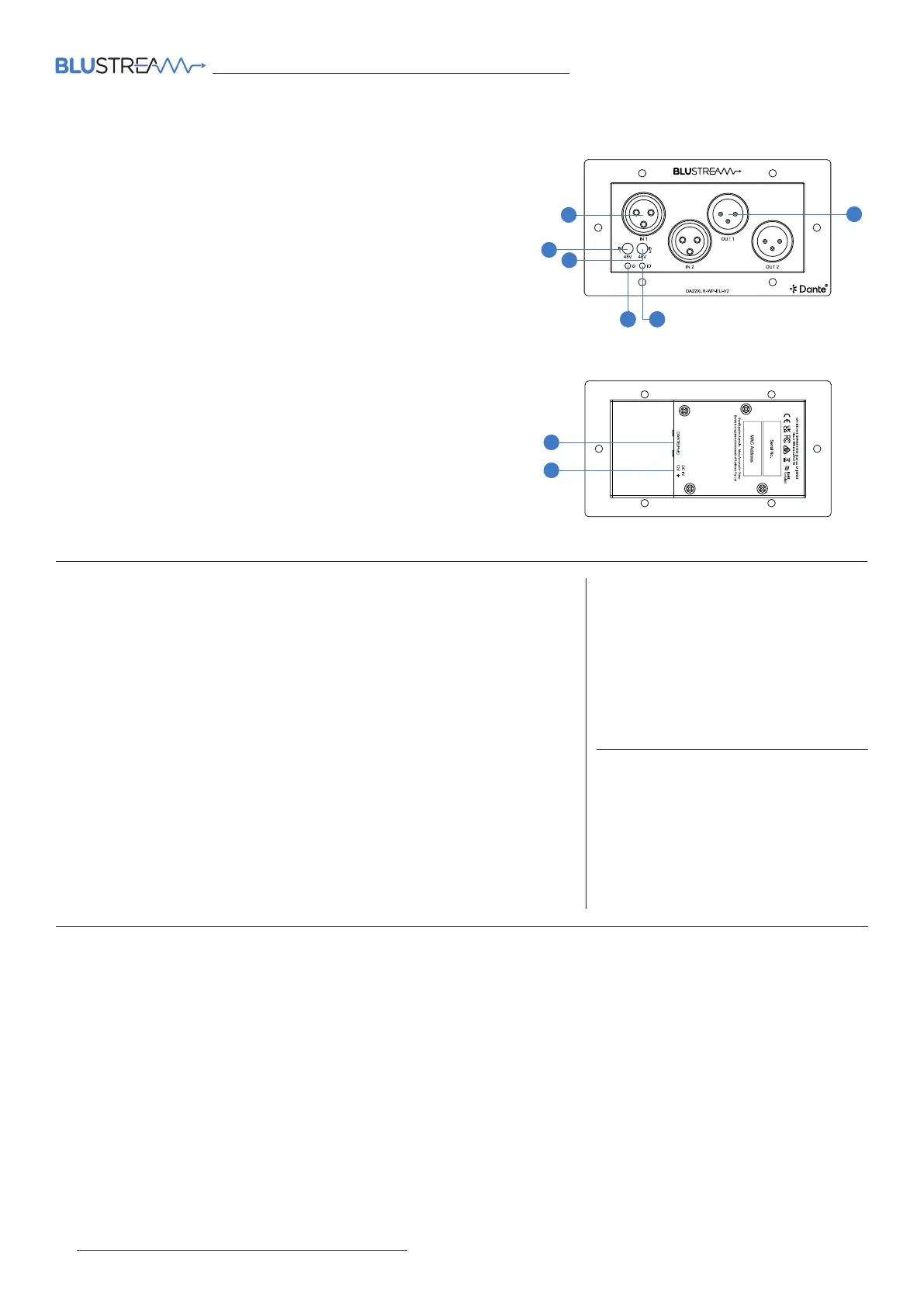

Panel Description
Connections:
1 Analogue Audio Input - XLR connector for balanced or unbalanced
analogue audio input
2 48V Phantom Power Indicator- Illuminates when 48V phantom power is
enabled
3 48V Phantom Power Switch - Press to enable/disable 48V
phantom power for microphones on corresponding input
4 Analogue Audio Output - XLR connector for balanced or unbalanced
analogue audio output
5 Power Status Indicator - Illuminates when the device is powered on
power input
6 ID LED Indicator - Flashes when this device is identified through Dante®
Configurator
7 Dante® Network Connection (PoE) - RJ45 connection to connect to
network switch
8 Power Port – Use 12V/1A DC adaptor (not included) when PoE is not
available to power device
8
7
2
1
3
4
33363335
