BLUARC USER MANUAL
www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk04

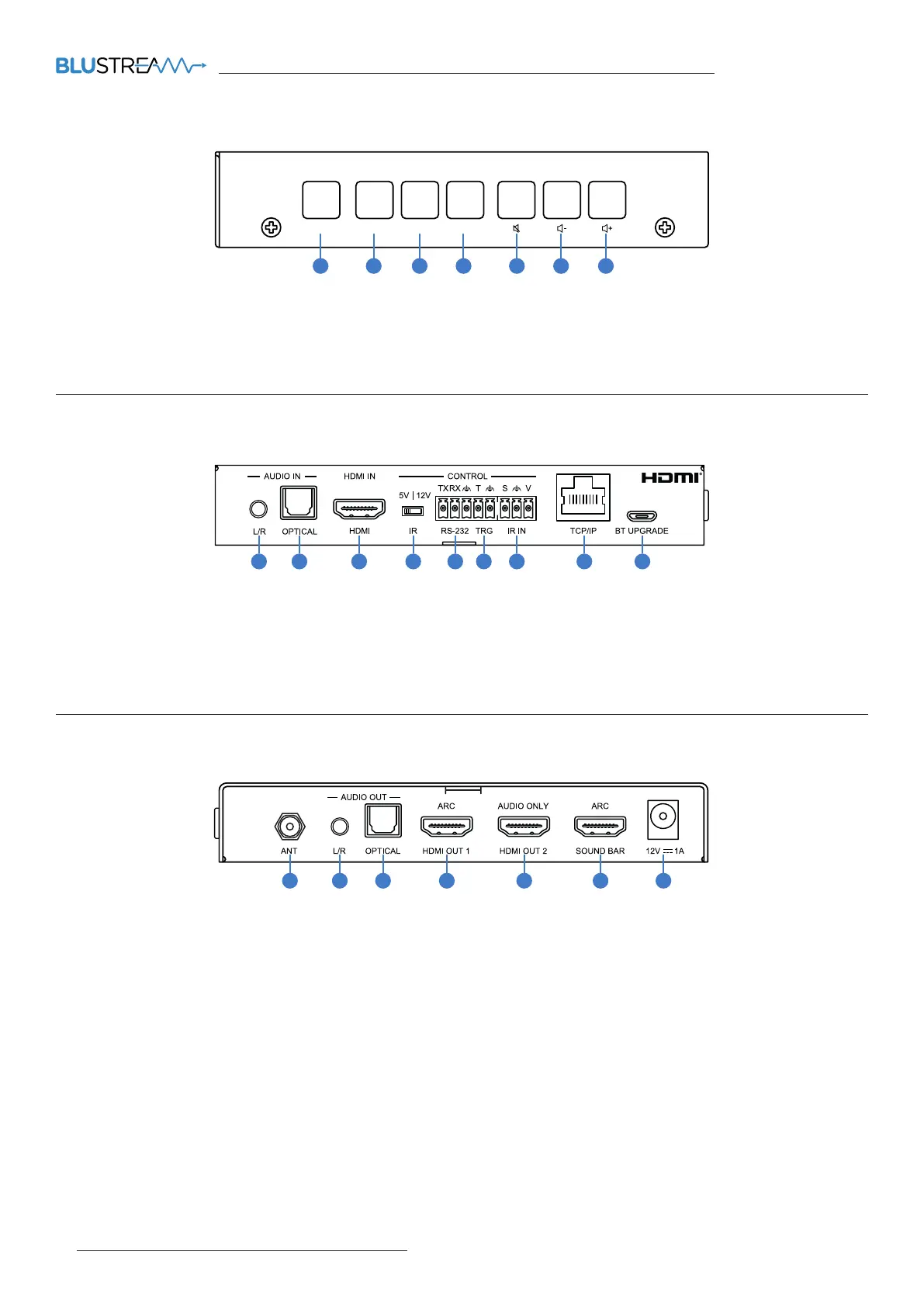

Front Panel Description
1 Power Button
2 Input Button
3 Mode Button
4 Pair Button
5 Output Volume Mute Button
6 Output Volume Down Button
7 Output Volume Up Button
1 2 3 4 5 6
POWER INPUT PAIRMODE
(3S)
7
8 9 10 11 12 13 14 15 16
Le Panel Description
8 Analogue Audio Input — 3.5mm stereo jack
9 Optical Audio Input —Toslink (S/PDIF) connector
q HDMI Input
w IR Voltage Selection Switch — 5V or 12V
e RS-232 Port — 3-pin Phoenix connector
r Trigger Port — 2-pin Phoenix connector
t IR In Port — 3-pin Phoenix connector
y TCP/IP Network Connection — RJ45 connector
u BT Upgrade Port — Micro USB for Bluetooth firmware
updates
17 18 19 20 21 22 23
i Antenna Connection — SMA connector to connect supplied
antenna
o Analogue Audio Outlet — 3.5mm stereo jack
p Optical Audio Output — Toslink (S/PDIF) connector
a HDMI Ouput 1 (ARC)
s HDMI Output 2 (Audio Only)
d HDMI Soundbar Output (ARC + CEC)
f DC Power Port — 12V / 1A
