Installation
Plumbing Connections
WATER CONNECTION
Connect the appliance to quality water via a pressure
hose with 3/4” GHT (19mm) couplings. See below for
connections. A shut o valve is to be provided adjacent
to the oven.
WARNING!!
Operating the appliance without the water reg-
ulator installed will invalidate your warranty.
This product must be installed by a licensed Plumber or
Gas Fitter when installed within the Commonwealth of
Massachusetts.
DRAIN CONNECTION
The drain should be run to an open oor drain avoiding
exible hose that could sag and allow trapped water to
accumulate. The customer must supply the piping from
the oven to the drain.
NOTE: The drain piping must consist of temperature
resistant material, greater than 160°F, and be
of adequate diameter not to cause ow restric-
tion. Improper materials may deform and cause
restrictions, thus aecting performance.
WARNING!!
Connection must be carried out by a licensed
plumber, to an open or closed drain. The drain
must never end directly beneath the equip-
ment. The drain should not be located on the
same side the equipment controls are located.
Specic water/drain connection for City of Los Ange-
les
1. Each drain line from the appliance shall be routed
without dips or sags to terminate above the ood level
rim of an approved indirect waste receptor.
2. The appliance shall be installed in accordance with
the manufacturer’s printed instructions and the LAPC
and LAMC, 1999 editions.
3. A backow protection device may be required by lo-
cal codes. If so, install on the potable water system
directly ahead of the appliance. The backow protec-
tion device shall be any of the following: an approved
pressure type vacuum breaker installed at least 12”
above the highest point of use, a double check valve
backow preventer or a reduced pressure principal
backow preventer.

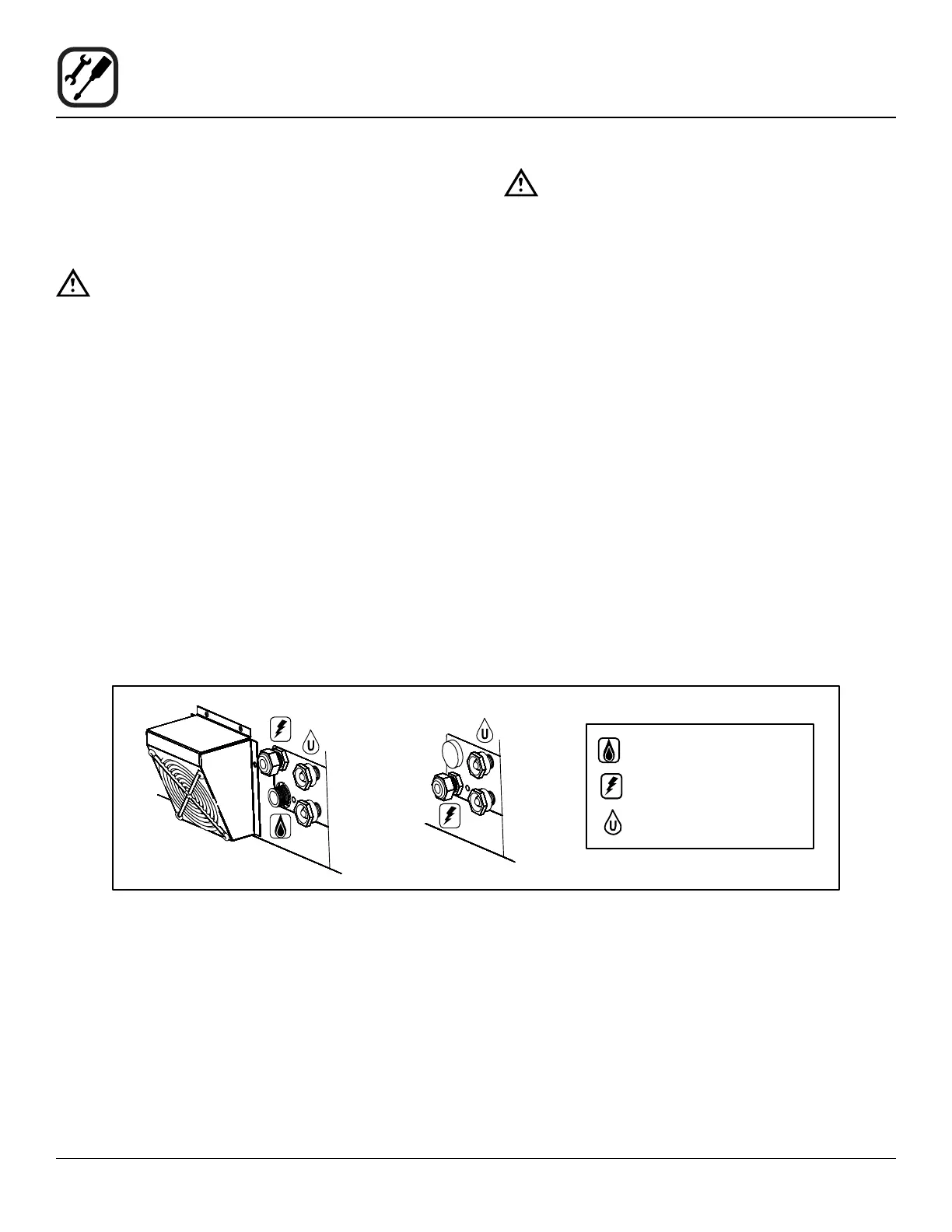

Figure 5
CNVX-14G
CNVX-14E
Gas connection
Electrical connection
Spray hose connection
