3. OPERATION

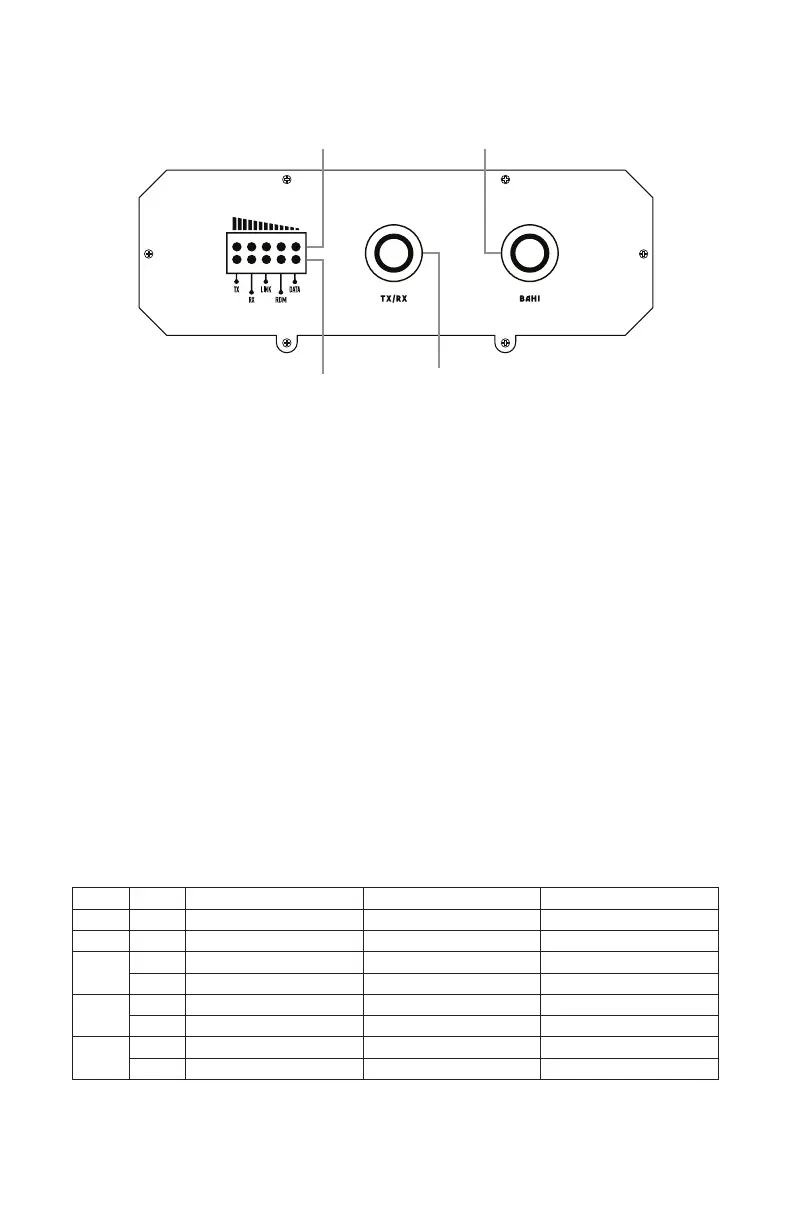

Status LEDs

Function (Bah!)Signal Strength Meter

Mode (Transmitter, Receiver)

Before You Begin

1. Decide whether each unit will act as a Transmitter (TX) or Receiver (RX) by pressing the

Mode (TX/RX) button to toggle the mode.

2. For a Transmitter, you will need to connect a DMX controller to the DMX input, and for

Receivers connect the unit's DMX output to the receiving xture's input.

3. Check the LINK Status LED on the Receiver. If it is on, the Receiver is already paired with

a Transmitter. Unpair it before pairing with a new Transmitter (see below).

Pairing Process

1. Ensure the Receiver is set to RX mode and the Transmitter is set to TX mode.

2. On the Transmitter, press the Function (Bah!) button.

3. The LINK LEDs on the Transmitter and Receiver(s) will ash rapidly during pairing.

4. Once pairing is complete, the LINK status LEDs on all units will remain solidly lit.

Unpairing A Single Receiver

1. On the Receiver, press and hold the Function (Bah!) button for 6 seconds.

2. The LINK status LED on the Receiver will turn o, indicating it is disconnected.

Unpairing All Receivers

1. On the Transmitter, press and hold the Function (Bah!) button for 6 seconds.

2. The LINK status LEDs on all paired Receivers will turn o to indicate disconnection.

LED Mode O Flashing Solid

TX TX Not in Transmitter mode N/A Transmitter mode active

RX RX Not in Receiver mode N/A Receiver mode active

Link TX No paired Receivers Pairing/searching Paired with Receivers

RX Not paired Pairing/searching Paired with Transmitter

RDM TX No RDM detected RDM active N/A

RX No RDM detected RDM active N/A

Data TX No DMX signal N/A Transmitting DMX

RX No DMX signal N/A Receiving DMX

Status LED Overview
