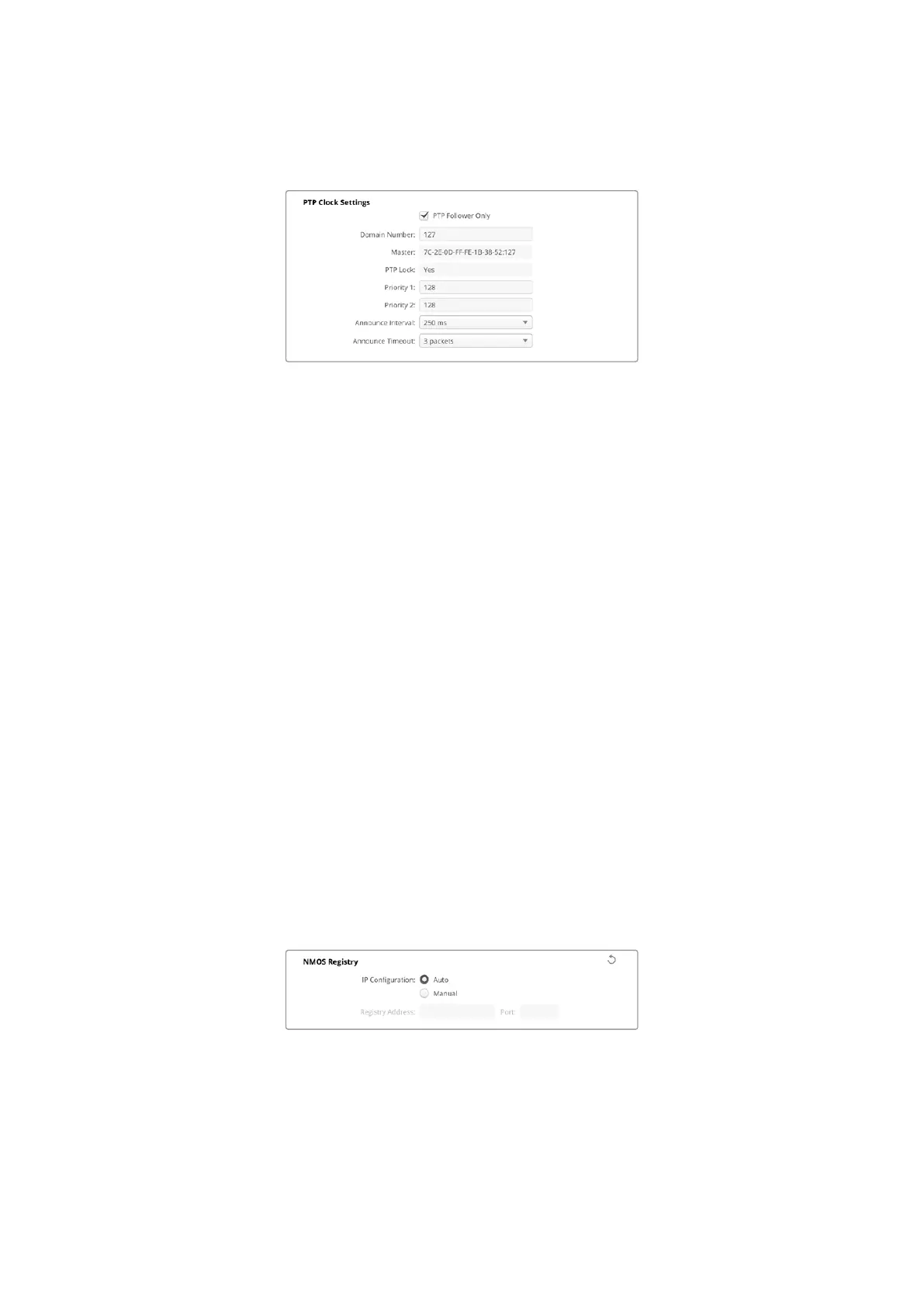

PTP Clock Settings

The PTP settings let you configure the settings for the PTP grandmaster.

When connecting SmartView 4K G3 to a 10G network switch with a PTP grandmaster, the

SmartView monitor needs to be set to ‘PTP follower only’ mode to prevent a timing conflict.

If you have connected the monitor to another 2110 IP unit such as a Blackmagic 2110 IP 3x3G

Converter, set one to be the follower by ticking the checkbox

Domain Number

Enter the domain number to match that of the PTP grandmaster. This is commonly 127 but can

be changed by entering a different domain number in the field.

Master

The master address field displays the MAC address of the PTP grandmaster. This is either a

separate grandmaster, or an IP converter such as Blackmagic 2110 IP Converter 3x3G.

PTP Lock

The PTP lock field will acknowledge when the monitor is locked to a PTP clock via Ethernet.

Priority

When the SmartView 4K G3 is not set to ‘PTP follower only’ it can become a PTP Master. The

priority of the unit to become the master is set here. The lower the number the higher the priority.

Announce Interval and Timeout

The announce interval and timeout fields need to match the specifications of the PTP

grandmaster which transmits sync messages typically every two seconds or 2000 ms. To

change the frequency of the message, use the menu to select a different time. The ranges

available for announce interval and announce timeout will depend on your PTP grandmaster.

NMOS Registry

The NMOS registry IP can be entered manually or check auto to automatically discover the

NMOS registry on the network.
