CHAPTER 2: OVERVIEW
BACK PANEL

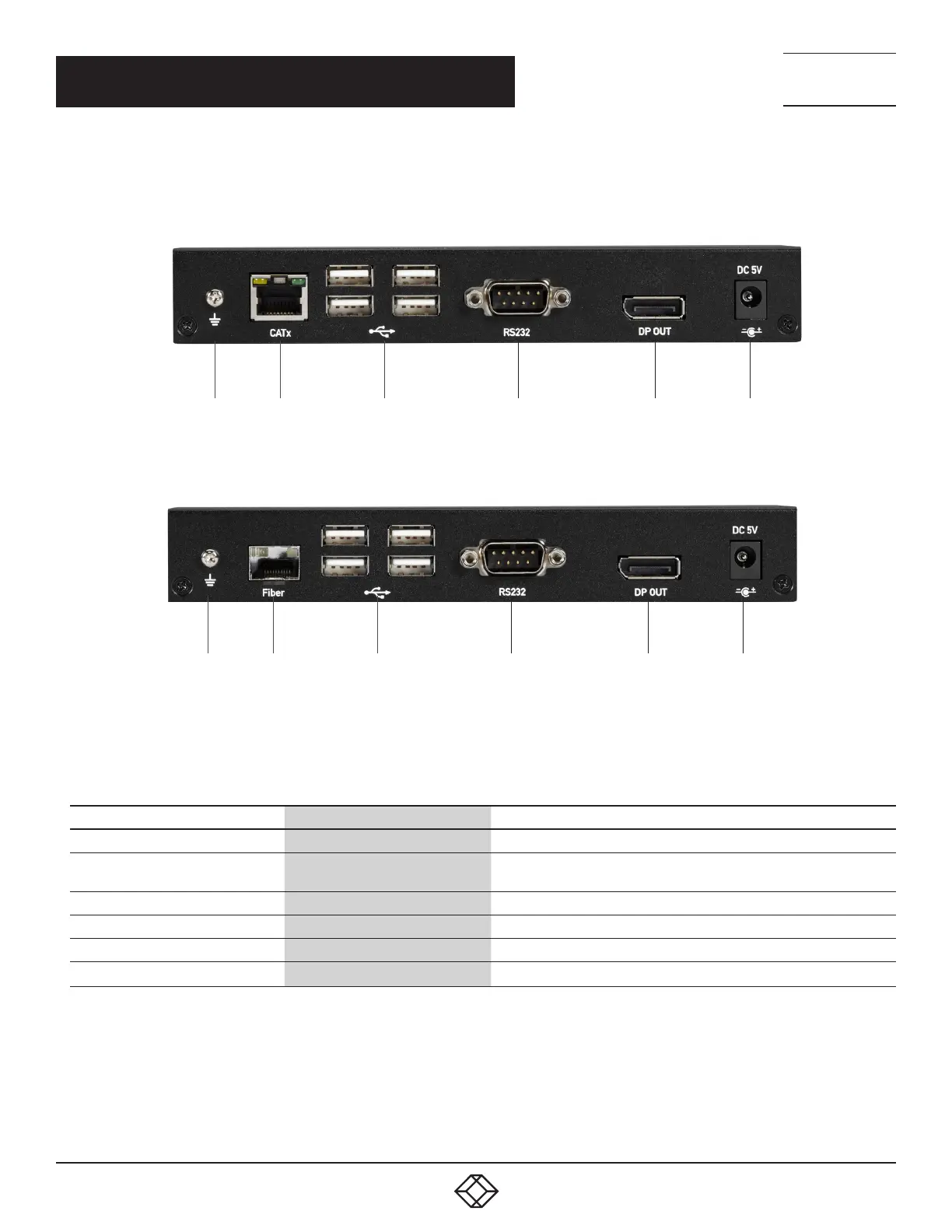

Figures 2-9 and 2-10 show the back panels of the single-head CATx and fiber receivers. Table 2-5 describes their components.
1 2 3 4 5 6
FIGURE 2-9. CATX RECEIVER BACK PANEL
1 2 3 4 5 6
FIGURE 2-10. FIBER RECEIVER BACK PANEL
TABLE 2-5. RECEIVER BACK-PANEL COMPONENTS
NUMBER IN FIGURE 2-9 OR 2-10 COMPONENT DESCRIPTION
1 Ground screw Links to ground
2
For CATx model: RJ-45 connector
For Fiber model: SFP cage
For CATx Model: CATx link
For Fiber model: Install fiber SFP module here
3 (4) USB 2.0 Type A ports Connect to USB device ports
4 DB9 connector Connects to sink device’s RS-232 port for serial extension
5 DisplayPort Out port Connects to sink device’s signal for DisplayPort video extension
6 Power connector Links to 5-VDC power supply
