3. Installation
3.1 Mounting the modules – desk or rack
The Wizard DP USB unit can be situated on a desk or alternatively, for larger installations, mounted within an optional rack mount
chassis.
Note: Both the Wizard DP USB unit and its power supply generate heat when in operation and will become warm to the touch.
Do not enclose them or place them in locations where air cannot circulate to cool the equipment. Do not operate the equipment
in ambient temperatures exceeding 40 degrees Centigrade. Do not place the products in contact with equipment whose surface
temperature exceeds 40 degrees Centigrade.
3.1.1 Rack mount
The optional brackets (plus four screws), allow the unit to be secured within a standard rack slot as shown in Figure 3-1:

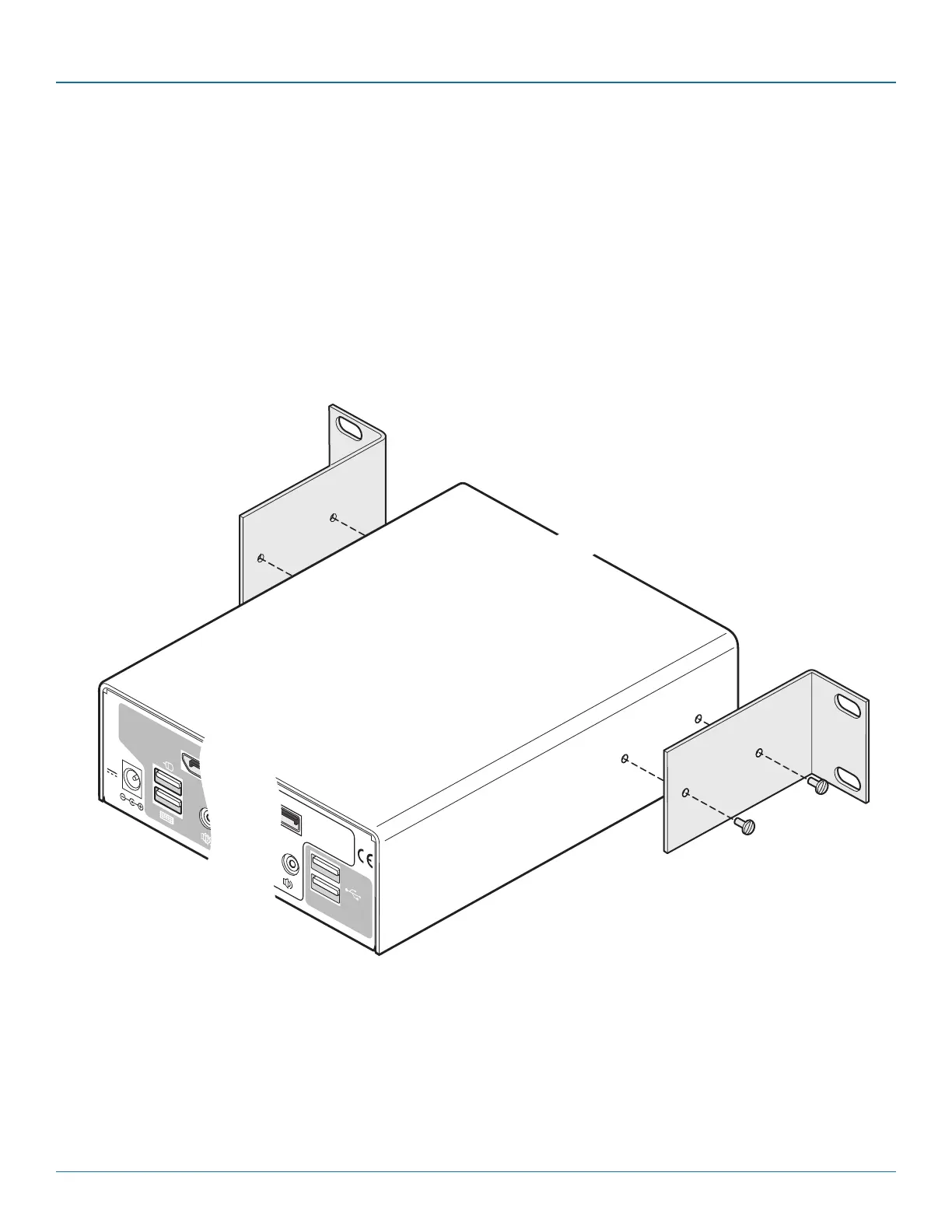

Figure 3-1. Fixing the optional rack brackets
1
USB2.0
SWITCHED
USB 1
USB 2
USB2.0
SWITCHED
USB 1
USB 2
4
5V
2.5A
USER
CONSOLE
INDOOR USE ONLY
USER
CONSOLE
OPTIONS
