CHAPTER 4: MOUNTING OPTIONS
The bottom of the enclosure features four convenient pre-drilled holes for optional mounting. Based on your requirements, choose from
two available mounting options:
1. USB Extender Mounting Kit (Purchased separately order USB Mounting Kit - Black (part number IC400MK)
2. USB Extender Direct Surface Mounting (Using your own hardware, stencil provided)
4.1 OPTION 1: USB EXTENDER MOUNTING KIT
Contents:
(2) mounting brackets
(4) M3 locking washers
(4) M3 x 10-mm Phillips screws
(1) Mounting bracket installation guide (see diagram)
NOTE: One kit is required to mount per Local Extender or Remote Extender
Using a Phillips screwdriver, in the order as illustrated below, fasten and secure the provided screws, locking washers and brackets into
place.

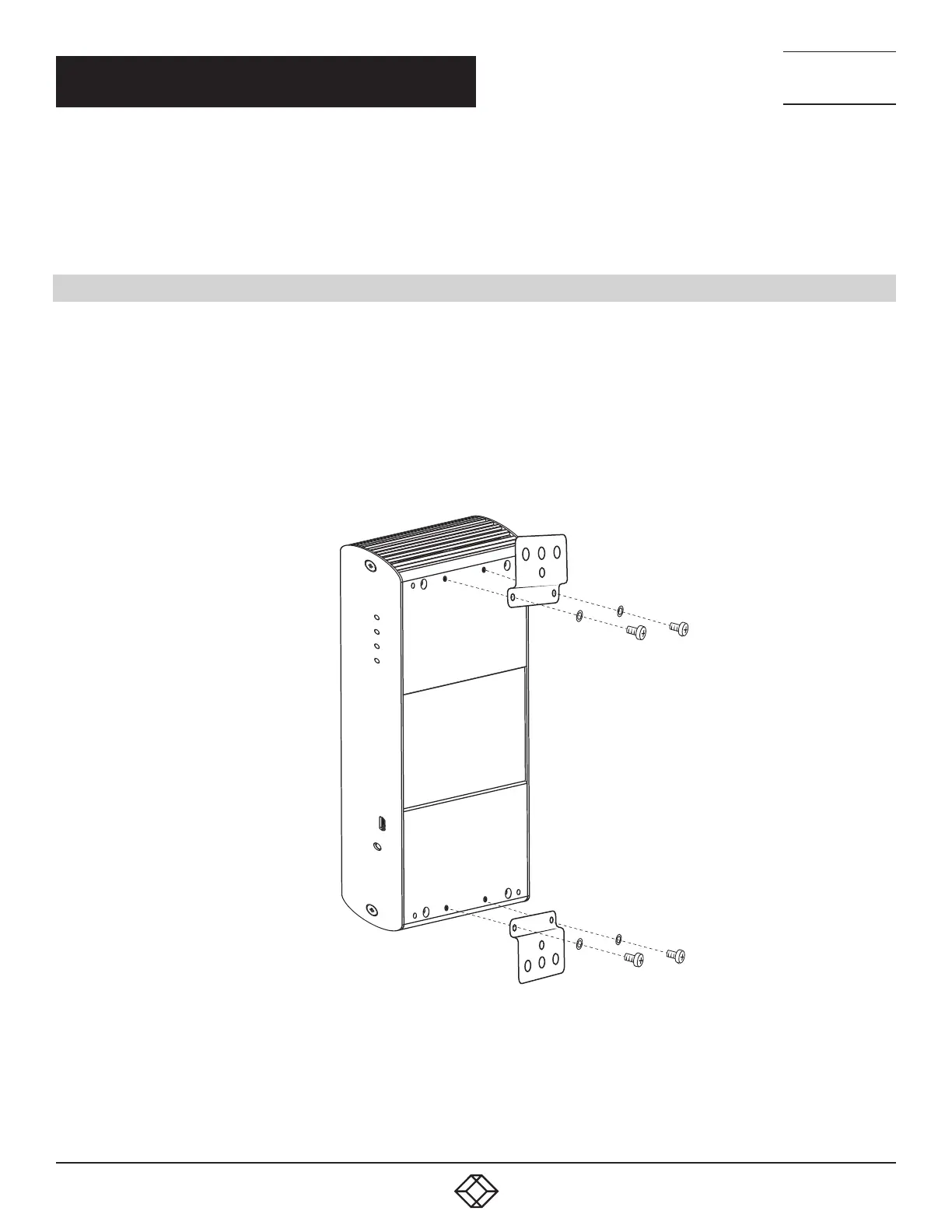

FIGURE 4-1. MOUNTING KIT
Once the bracket mounting is secured onto the extender, it is ready for mounting onto a surface.
NOTE: You will need to provide your own screws to secure the extender using the available slots on each bracket.
