SRP-S300II

Ver. 1.00

- 15 -

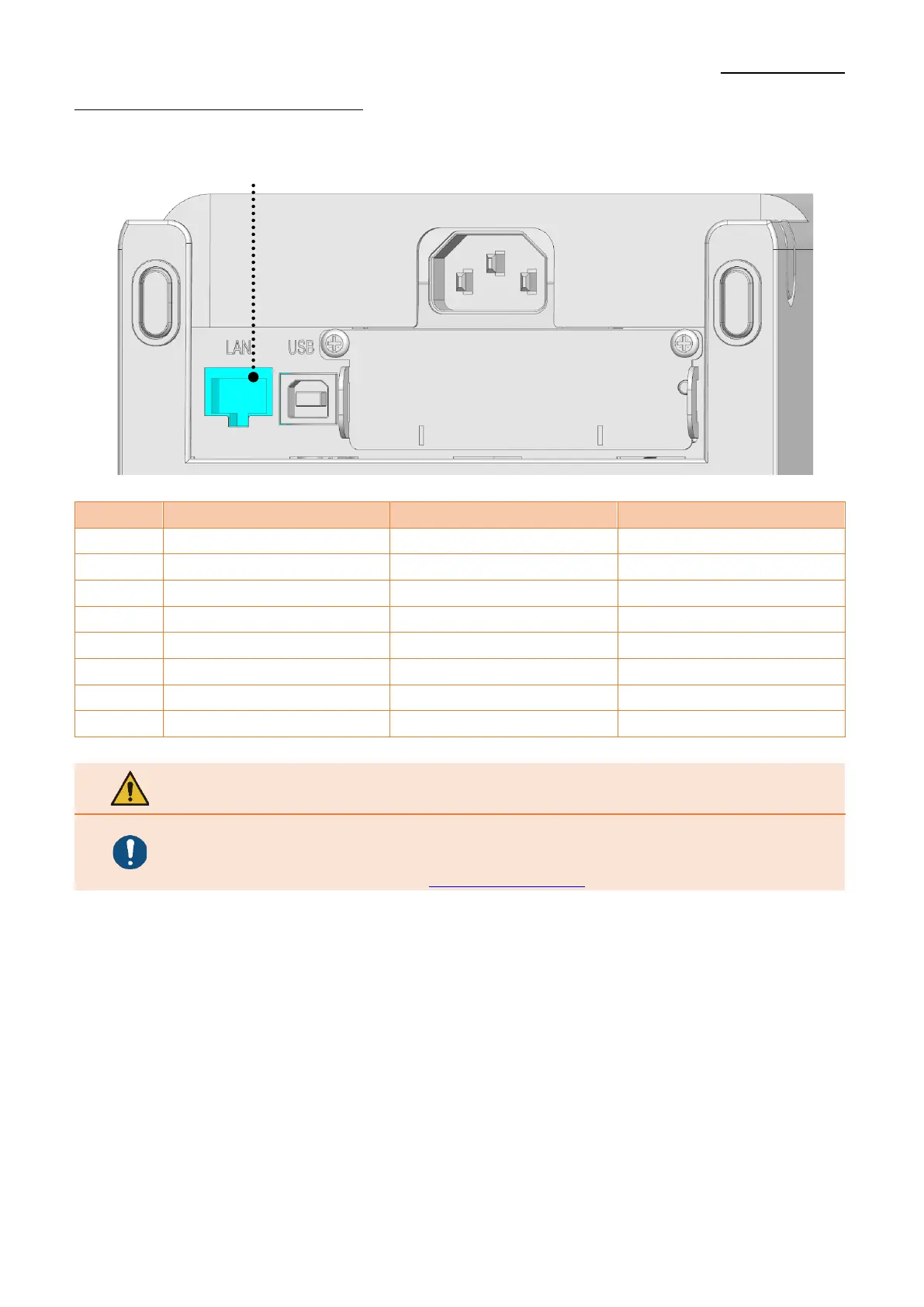

2-2-2 Ethernet Interface (Built-in)

Pin No.

Signal Name

Designation (Color)

Function

1

TD+

White Orange

Transmit +

2

TD-

Orange

Transmit -

3

CT

White Green

Center tap

4

NC

Blue

-

5

NC

White Blue

-

6

NC

Green

-

7

RD+

White Brown

Receive +

8

RD-

Brown

Receive -

Connect or disconnect the communication cable while the printer

power is off. If power is on, your data may be lost.

- Refer to the utility and network connection manual for Interface

connection information. The network connection manual is

on the BIXOLON website (www.bixolon.com) We're offering it.

Ethernet Port
