58

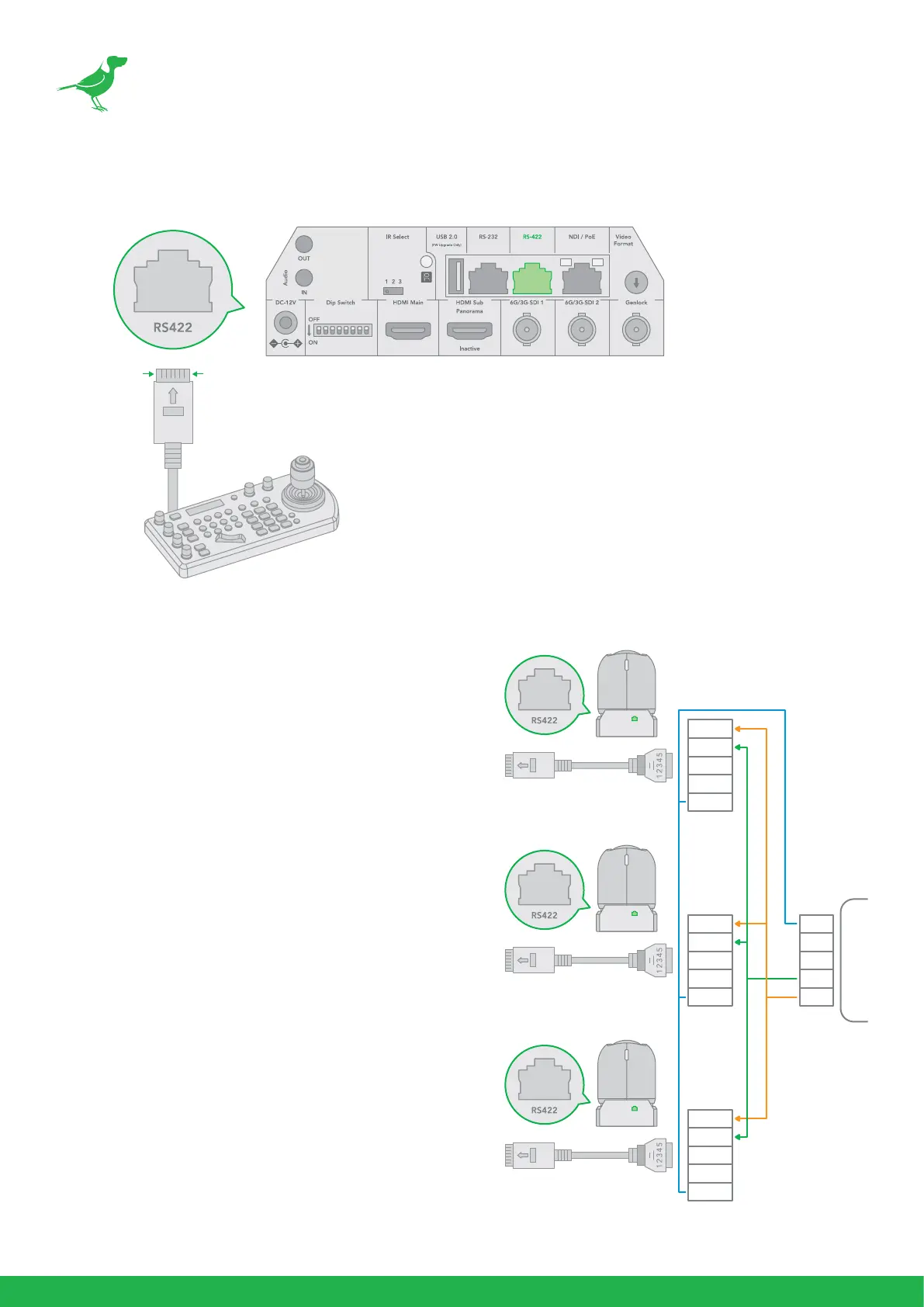

b. Use a CAT5/6 T-568B cable between the camera and the controller to make RS485 connection by following
the pin denition below.
c. Making connections for multiple cameras using
RS485 standard serial port controller.
NOTE: For RS-232 VISCA control, P4K supports
daisy chain connection of multiple cameras.
For control details, refer to the operating instruc-
tions of your control keyboard/station software.
• You need to match the communication speed
(Baud Rate) between the camera and the
joystick controller.
• You cannot use the RS-232 connections while
you are using the RS422/485 connection.
5. R –
4. R +
3. T –
2. T +
1. GND
VCC-CC45RS
RJ45 TO RS422/485
CONTROL CABLE ADAPTOR
5. R –
4. R +
3. T –
2. T +
1. GND
VCC-CC45RS
RJ45 TO RS422/485
CONTROL CABLE ADAPTOR
5. R –
4. R +
3. T –
2. T +
1. GND
VCC-CC45RS
RJ45 TO RS422/485
CONTROL CABLE ADAPTOR
RX +
RX –
TX +
TX –
GND
RS422
RS422 SERIAL PORT
ON CONTROLLER SIDE
CAT5/6
Network Cable
RS422
Port
1. RX – (Orange/White)
2. RX + (Orange)
3. GND (Green/White)
4. --- (Blue)
5. --- (Blue/White)
6. --- (Green)
7. TX – (Brown/White)
8. TX + (Brown)
1 8
