b. Use a CAT5/6 T-568B cable direct connect between the camera and the controller to make an RS485
connection by following the pin denition below.

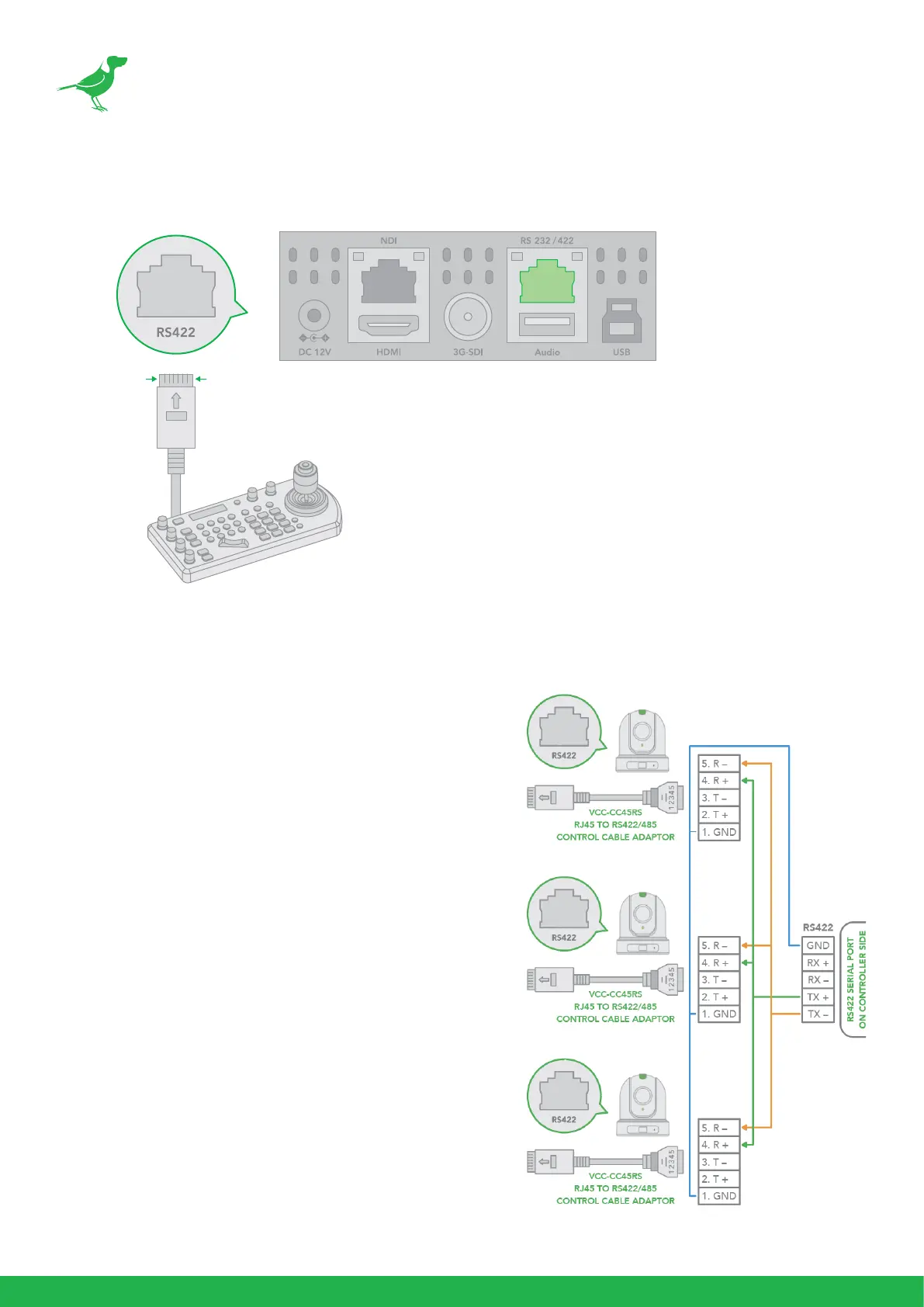

c. Making connections for multiple cameras using
RS485 standard serial port controller.
NOTE: For RS-232 VISCA control, P110 supports dai-
sy chain connection of multiple cameras.
For control details, refer to the operating instructions
of your control keyboard/station software.
• You need to match the communication speed
(Baud Rate) between the camera and the joystick
controller.
• You cannot use the RS-232 connections while
you are using the RS422/485 connection.
CAT5/6
Network Cable
RS485
Port
1. RX – (Orange/White)
2. RX + (Orange)
3. GND (Green/White)
4. --- (Blue)
5. --- (Blue/White)
6. --- (Green)
7. TX – (Brown/White)
8. TX +
(Brown)
1 8
